MASUMA BRAKE DISC
VENDOR CODE: BD-1254

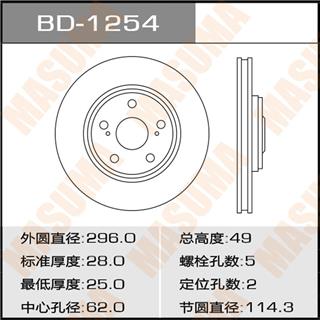

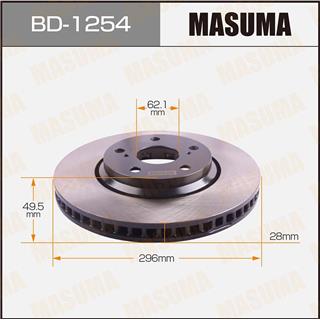

Remark: Diameter of section circle:62.1 Standard thickness:49.5 Minimum thickness:28 Diameter of section circle:296
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
4351228190
ESTIMA
Chassis No. Year Configuration
ACR50W 2006/01-2019/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACR55W 2006/01-2019/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
GSR50W 2006/01-2016/05 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSR55W 2006/01-2016/05 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
ALPHARD
Chassis No. Year Configuration
AGH30W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Front wheel drive.
AGH35W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Four-wheel drive (4WD).
ANH20W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ANH25W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ATH20W 2011/12-2015/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
AYH30W 2015/01- 2.5L Petrol 2ARFXE EFI (152 hp / 112 kW) Four wheel drive (4WD).
GGH20W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGH25W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GGH30L 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GGH30W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GGH35W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Four-wheel drive (4WD).
VELLFIRE
Chassis No. Year Configuration
AGH30W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Front wheel drive.
AGH35W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Four-wheel drive (4WD).
ANH20W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ANH25W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ATH20W 2011/12-2015/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
AYH30W 2015/01- 2.5L Petrol 2ARFXE EFI (152 hp / 112 kW) Four wheel drive (4WD).
GGH20W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGH25W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GGH30W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GGH35W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Four-wheel drive (4WD).
ESTIMA HYBRID
Chassis No. Year Configuration
AHR20W 2006/06-2019/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BREMBO No. BREMBO No. NIBK No. TEXTAR No. TRW No.
BD-1254 09.C710.10 09.C710.11 RN1617V 92285103 DF7468
