MASUMA BRAKE DISC
VENDOR CODE: BD-1511

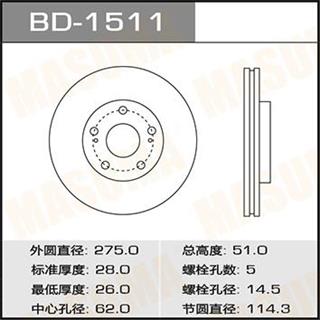

Remark: Outer circle diameter:275.0 Total height:51.0 Standard thickness:28.0 Number of bolt holes:5 Minimum thickness: 26.0 Bolt hole diameter:14.5 Center bore diameter: 62.0 Diameter of section circle:114.3
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
4351233060
AVENSIS VERSO
Chassis No. Year Configuration
ACM20_ -
ACM26_ -
CLM20_ -
PREVIA II
Chassis No. Year Configuration
ACR30 -
CLR30_ -
CAMRY Saloon
Chassis No. Year Configuration
ACV30, ACV36 -
ACV31_ -
CAMRY
Chassis No. Year Configuration
MCV20_ -
SXV20 -
SXV20_ -
VCV10_ -
CAMRY Estate
Chassis No. Year Configuration
VCV10_ -

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BOSCH No. BOSCH No. BREMBO No. BREMBO No. BREMBO No. NIBK No.
BD-1511 0986478632 0986AB9507 09.5624.10 09.A386.10 09.A386.11 RN1009V
TRW No.
DF1431
