MASUMA BRAKE DISC
VENDOR CODE: BD-1532

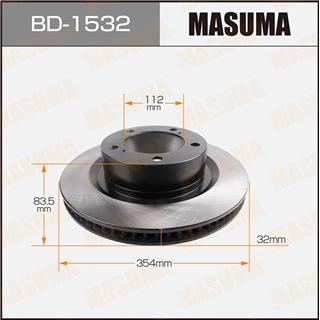

Remark: Diameter of section circle:112 Standard thickness:83.5 Minimum thickness:32 Diameter of section circle:354
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
43512-0C020
43512-60210
LX570
Chassis No. Year Configuration
URJ201L 2015/09-2021/12 5.7L Petrol 3URFE EFI (387 hp / 285 kW) Four-wheel drive (4WD).
LX450D
Chassis No. Year Configuration
VDJ201L 2015/09- 4.5L Diesel 1VDFTV CRI (272 hp / 200 kW) Four-wheel drive (4WD).
TUNDRA
Chassis No. Year Configuration
GSK50L 2006/11-2014/09 4.0L Petrol 1GRFE EFI (270 hp / 199 kW) Rear wheel drive.
GSK51L 2006/11-2014/09 4.0L Petrol 1GRFE EFI (270 hp / 199 kW) Rear wheel drive.
UCK50L 2006/11-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Rear wheel drive.
UCK51L 2006/11-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Rear wheel drive.
UCK51L 2007/03-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Rear wheel drive.
UCK52L 2006/11-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Rear wheel drive.
UCK55L 2006/11-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
UCK56L 2007/03-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
UCK56L 2006/11-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
UCK57L 2006/11-2009/04 4.7L Petrol 2UZFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
UPK50L 2009/04-2013/08 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Rear wheel drive.
UPK51L 2009/04-2019/07 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Rear wheel drive.
UPK51L 2009/04-2010/05 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Rear wheel drive.
UPK52L 2009/04-2010/05 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Rear wheel drive.
UPK55L 2009/04-2010/05 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Rear wheel drive.
UPK56L 2009/04-2010/05 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Four wheel drive (4WD).
UPK56L 2009/04-2019/07 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Four wheel drive (4WD).
UPK57L 2009/04-2010/05 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Four wheel drive (4WD).
USK50L 2007/01-2010/05 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Rear wheel drive.
USK51L 2007/01-2021/12 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Rear wheel drive.
USK51L 2007/03-2021/12 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Rear wheel drive.
USK52L 2007/01-2021/12 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Rear wheel drive.
USK55L 2008/08-2013/08 5.7L 3URFBE EFI (357 hp / 263 kW) Four-wheel drive (4WD).
USK55L 2007/01-2013/08 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Four-wheel drive (4WD).
USK56L 2008/08-2019/07 5.7L 3URFBE EFI (357 hp / 267 kW) Four-wheel drive (4WD).
USK56L 2008/08-2019/07 5.7L 3URFBE EFI (378 hp / 278 kW) Four-wheel drive (4WD).
USK56L 2007/03-2021/12 5.7L Petrol 3URFE EFI (381 hp / 263 kW) Four-wheel drive (4WD).
USK56L 2007/01-2021/12 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Four-wheel drive (4WD).
USK57L 2008/08-2019/07 5.7L 3URFBE EFI (357 hp / 263 kW) Four-wheel drive (4WD).
USK57L 2007/01-2021/12 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Four-wheel drive (4WD).
SEQUOIA
Chassis No. Year Configuration
UCK60L 2007/11-2009/04 4.7L Petrol 2UZFE EFI (273 hp / 201 kW) Rear wheel drive.
UCK65L 2007/11-2009/04 4.7L Petrol 2UZFE EFI (273 hp / 201 kW) Four-wheel drive (4WD).
UPK60L 2009/04-2012/08 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Rear wheel drive.
UPK65L 2009/04-2012/08 4.6L Petrol 1URFE EFI (310 hp / 228 kW) Four wheel drive (4WD).
USK60L 2007/11-2017/08 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Rear wheel drive.
USK65L 2008/08-2017/08 5.7L 3URFBE EFI (383 hp / 282 kW) Four-wheel drive (4WD).
USK65L 2007/11-2017/08 5.7L Petrol 3URFE EFI (381 hp / 280 kW) Four-wheel drive (4WD).
LAND CRUISER
Chassis No. Year Configuration
URJ202L 2015/08-2021/06 4.6L Petrol 1URFE EFI (309 hp / 227 kW) Four wheel drive (4WD).
VDJ200L 2015/08-2021/06 4.5L Diesel 1VDFTV (265 hp / 195 kW) Four-wheel drive (4WD).

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BREMBO No. BREMBO No. NIBK No. TEXTAR No.
BD-1532 09.C500.11 09.C500.1X RN22002V 92303003
