MASUMA BRAKE DISC
VENDOR CODE: BD-2105

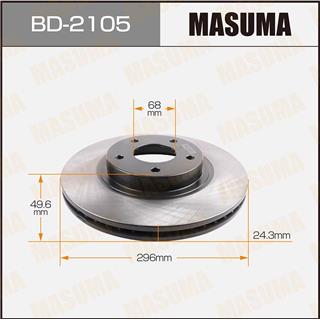

Remark: Diameter of section circle:68 Standard thickness:49.6 Minimum thickness:24.3 Diameter of section circle:296
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
402069Y000
40206-AL500
40206-AL501
STAGEA
Chassis No. Year Configuration
HM35 2001/01-2003/02 3.0L Petrol VQ30DD DI (260 HP / 191 kW) Rear wheel drive.
M35 2001/01-2003/02 2.5L Petrol VQ25DD DI (215 hp / 158 kW) Rear wheel drive.
NM35 2001/01-2003/02 2.5L Petrol VQ25DD DI (188 hp / 138 kW) Four wheel drive (4WD).
NM35 2001/01-2003/02 2.5L Petrol VQ25DET EGI (280 hp / 206 kW) Four-wheel drive (4WD).
PRIMERA
Chassis No. Year Configuration
HP12 2001/08-2003/07 2.0L Petrol SR20VE EGI (205 hp / 151 kW) Front wheel drive.
TNP12 2001/08-2002/05 2.0L Gasoline QR20DE EGI (140 HP / 103 kW) Four wheel drive (4WD).
TP12 2001/08-2002/05 2.0L Gasoline QR20DE EGI (140 HP / 103 kW) Front wheel drive.
WHP12 2001/05-2003/07 2.0L Petrol SR20VE EGI (205 hp / 151 kW) Front wheel drive.
WTNP12 2001/01-2002/05 2.0L Gasoline QR20DE EGI (140 HP / 103 kW) Four wheel drive (4WD).
WTP12 2001/08-2002/05 2.0L Gasoline QR20DE EGI (140 HP / 103 kW) Front wheel drive.
SKYLINE
Chassis No. Year Configuration
HV35 2001/01-2003/01 3.0L Petrol VQ30DD DI (260 HP / 191 kW) Rear wheel drive.
HV35 2001/06-2001/01 3.0L Petrol VQ30DD DI (260 HP / 191 kW) Rear wheel drive.
NV35 2001/09-2001/01 2.5L Petrol VQ25DD DI (215 hp / 158 kW) Four-wheel drive (4WD).
NV35 2001/01-2003/01 2.5L Petrol VQ25DD DI (215 hp / 158 kW) Four-wheel drive (4WD).
V35 2001/06-2001/01 2.5L Petrol VQ25DD DI (215 hp / 158 kW) Rear wheel drive.
V35 2001/01-2003/01 2.5L Petrol VQ25DD DI (215 hp / 158 kW) Rear wheel drive.

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
BD-2105
