Full Product Catalog

MASUMA BRAKE DISC
VENDOR CODE: BD-3510

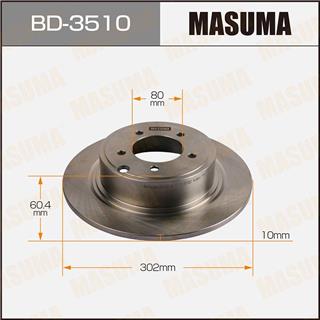

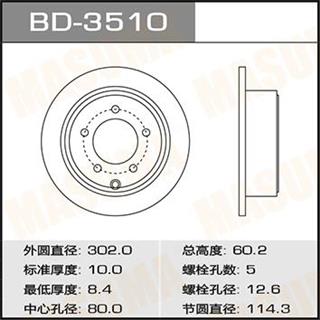

Remark: Diameter of section circle:80 Standard thickness:60.4 Minimum thickness:10 Diameter of section circle:302
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
4615A010
4615A121
4615A193
OUTLANDER
Chassis No. Year Configuration
CW1W.2WD.EUR 2010/07-2012/07 2.2L Diesel 4N14T (177 hp / 130 kW) Front wheel drive.
CW1W.2WD.EUR 2010/07-2012/08 2.2L Diesel 4N14T (177 hp / 130 kW) Front wheel drive.
CW1W.4WD.EUR 2010/07-2012/07 2.2L Diesel 4N14T (177 hp / 130 kW) Four-wheel drive (4WD).
CW1W.4WD.EUR 2010/07-2012/08 2.2L Diesel 4N14T (177 hp / 130 kW) Four-wheel drive (4WD).
CW4W 2009/12-2012/01 2.0L Petrol 4B11 MPI (160 hp / 118 kW) Four-wheel drive (4WD).
CW4W 2009/12-2012/01 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.EUR 2009/09-2012/08 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.EUR 2009/09-2012/07 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.RUS 2010/06-2012/04 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.RUS 2009/06-2012/04 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.4WD.RUS 2009/06-2012/07 2.0L Petrol 4B11 MPI (147 hp / 108 kW) Four-wheel drive (4WD).
CW4W.4WD.RUS 2010/06-2012/04 2.0L Petrol 4B11 MPI (160 hp / 118 kW) Four-wheel drive (4WD).
CW5W 2005/09-2009/04 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW5W 2009/04-2012/01 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW5W 2009/04-2012/01 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
CW5W 2008/08-2009/04 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
CW5W.2WD.EUR 2009/09-2009/09 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
CW5W.4WD.EUR 2009/09-2011/06 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW6W 2009/04-2009/07 3.0L Petrol 6B31 MPI (220 hp / 162 kW) Four-wheel drive (4WD).
CW6W 2007/09-2009/04 3.0L Petrol 6B31 MPI (220 hp / 162 kW) Four-wheel drive (4WD).
CW8W.4WD.EUR 2009/09-2010/07 2.0L Diesel BSY (140 hp / 103 kW) Four-wheel drive (4WD).
GALANT FORTIS SPORTBACK
Chassis No. Year Configuration
CX3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (143 hp / 105 kW) Four-wheel drive (4WD).
CX3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (143 hp / 105 kW) Front wheel drive.
CX4A 2008/11-2009/04 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Four-wheel drive (4WD).
CX4A 2009/04-2009/11 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Four-wheel drive (4WD).
CX4A 2008/11-2009/04 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CX4A 2009/04-2009/11 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CX6A 2011/01-2013/07 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Four-wheel drive (4WD).
CX6A 2013/07-2015/04 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Four-wheel drive (4WD).
CX6A 2011/01-2013/07 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Front wheel drive.
CX6A 2013/07-2015/04 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Front wheel drive.
GALANT FORTIS
Chassis No. Year Configuration
CY3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (140 hp / 103 kW) Four-wheel drive (4WD).
CY3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (140 HP / 103 kW) Front wheel drive.
CY4A 2009/04-2009/11 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Four-wheel drive (4WD).
CY4A 2007/08-2009/04 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Four-wheel drive (4WD).
CY4A 2007/08-2009/04 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CY4A 2009/04-2009/11 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
ASX
Chassis No. Year Configuration
GA1W.2WD.EUR 2010/06-2012/07 1.6L Petrol 4A92 MPI (117 hp / 86 kW) Front wheel drive.
GA2W.2WD.RUS 2010/05-2016/08 2.0L Petrol 4B11 MPI (147 hp / 108 kW) Front wheel drive.
GA2W.4WD.RUS 2010/05-2016/08 2.0L Petrol 4B11 MPI (148 hp / 109 kW) Four-wheel drive (4WD).
GA3W.2WD.RUS 2010/05-2013/03 1.8L Petrol 4B10 MPI (139 hp / 102 kW) Front wheel drive.
GA6W.Diz.2WD.EUR 2010/04-2012/06 1.8L Diesel 4N13T (150 hp / 110 kW) Front wheel drive.
GA6W.Diz.4WD.EUR 2010/04-2012/06 1.8L Diesel 4N13T (150 hp / 110 kW) Four-wheel drive (4WD).
RVR
Chassis No. Year Configuration
GA3W.2WD 2010/02-2012/09 1.8L Petrol 4B10 MPI (139 hp / 102 kW) Front wheel drive.
GA3W.4WD 2010/02-2011/01 1.8L Petrol 4B10 MPI (139 hp / 102 kW) Four-wheel drive (4WD).
GA4W.2WD 2011/01-2012/09 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Front wheel drive.
GA4W.4WD 2011/01-2012/09 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Four-wheel drive (4WD).

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BREMBO No. BREMBO No. BREMBO No. NIBK No. TEXTAR No. TRW No.
BD-3510 08.C247.10 08.C247.11 08.C247.1X RN1402 92177303 DF6177
