Full Product Catalog

MASUMA BRAKE DISC
VENDOR CODE: BD-4512

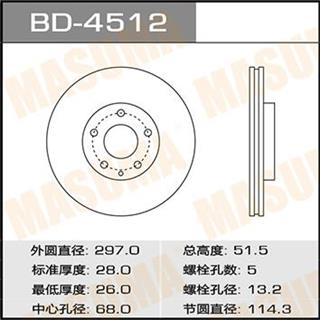

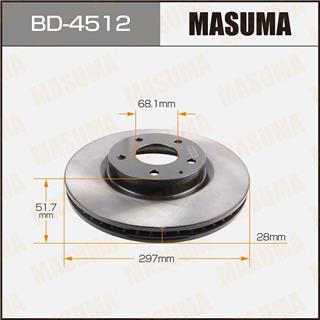

Remark: Diameter of section circle:68.1 Standard thickness:51.7 Minimum thickness:28 Diameter of section circle:297
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
5HA033251
98200 2574 0 1
GHP9-33-251
GHP9-33-251A
GHR133251
GHR1-33-251A
GV9B33251A
K01133251A
K011-33-251B
MAZDA 6
Chassis No. Year Configuration
GJ#. 2000cc. SKYACTIV-G. SEDAN 2012/01-2016/06 2.0L Gasoline SKYACTIV-G DI (165 hp / 121 kW) Front wheel drive.
GJ#. 2500cc. SKYACTIV-G. SEDAN 2012/01-2016/06 2.5L Gasoline SKYACTIV-G DI (192 hp / 141 kW) Front wheel drive.
GL#. 2000cc. SKYACTIV-G. SEDAN 2016/06-2018/03 2.0L Gasoline SKYACTIV-G DI (165 hp / 121 kW) Front wheel drive.
GL#. 2500cc. SKYACTIV-G. SEDAN 2016/06-2018/03 2.5L Gasoline SKYACTIV-G DI (192 hp / 141 kW) Front wheel drive.
MAZDA 6 WAGON
Chassis No. Year Configuration
GJ#. 2000cc. SKYACTIV-G. WAGON 2012/08-2012/09 2.0L Gasoline SKYACTIV-G DI (165 hp / 121 kW) Front wheel drive.
CX-5
Chassis No. Year Configuration
KE#9#. 2000cc. euro. 2012/05-2017/02 2.0L Petrol PE-VPS Front wheel drive.
KE#9#. 2000cc. euro. 2011/11-2012/05 2.0L Petrol PE-VPS Front wheel drive.
KE#9#. 2000cc. euro. 4WD 2012/05-2017/02 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#9#. 2000cc. euro. 4WD 2011/11-2012/05 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#9#. 2000cc. Rus. 2012/05-2017/02 2.0L Petrol PE-VPS (150 hp / 110 kW) Front wheel drive.
KE#9#. 2000cc. Rus. 2011/11-2012/05 2.0L Petrol PE-VPS (150 hp / 110 kW) Front wheel drive.
KE#9#. 2000cc. Rus. 4WD 2012/05-2017/02 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#9#. 2000cc. Rus. 4WD 2011/11-2012/05 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#9#. 2200cc. turbo. Diz. euro. 2012/01-2012/05 2.2L Diesel SH-VPTS (175 hp / 129 kW) Front wheel drive.
KE#9#. 2200cc. turbo. Diz. euro. 2012/05-2017/02 2.2L Diesel SH-VPTS (175 hp / 129 kW) Front wheel drive.
KE#9#. 2200cc. turbo. Diz. euro. 4WD 2012/01-2012/05 2.2L Diesel SH-VPTS (175 hp / 129 kW) Four-wheel drive (4WD).
KE#9#. 2200cc. turbo. Diz. euro. 4WD 2012/05-2017/02 2.2L Diesel SH-VPTS (175 hp / 129 kW) Four-wheel drive (4WD).
KE#9#. 2200cc. turbo. Diz. Rus. 4WD 2013/01-2016/05 2.2L Diesel SH-VPTS (190 hp / 140 kW) Four-wheel drive (4WD).
KE#9#. 2200cc. turbo. Diz. Rus. 4WD 2013/01-2012/05 2.2L Diesel SH-VPTS (190 hp / 140 kW) Four-wheel drive (4WD).
KE#9#. 2500cc. Rus. 4WD 2013/01-2012/05 2.5L Petrol PY (188 hp / 138 kW) Four-wheel drive (4WD).
KE#9#. 2500cc. Rus. 4WD 2013/01-2017/02 2.5L Petrol PY (188 hp / 138 kW) Four-wheel drive (4WD).
KE#978-. 2000cc. israel. 2012/05-2017/02 2.0L Petrol PE-VPS Front wheel drive.
KE#978-. 2000cc. israel. 2012/02-2012/05 2.0L Petrol PE-VPS Front wheel drive.
KE#978-. 2000cc. israel. 4WD 2012/02-2012/05 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#978-. 2000cc. israel. 4WD 2012/05-2017/02 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#W7#. 2000cc. general. 2012/02-2012/05 2.0L Petrol PE-VPS Front wheel drive.
KE#W7#. 2000cc. general. 2012/05-2017/02 2.0L Petrol PE-VPS Front wheel drive.
KE#W7#. 2000cc. general. 4WD 2012/02-2012/05 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#W7#. 2000cc. general. 4WD 2012/05-2017/02 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#W7#. 2000cc. S. Arabia. 2012/02-2012/05 2.0L Petrol PE-VPS Front wheel drive.
KE#W7#. 2000cc. S. Arabia. 2012/05-2017/02 2.0L Petrol PE-VPS Front wheel drive.
KE#W7#. 2000cc. S. Arabia. 4WD 2012/05-2017/02 2.0L Petrol PE-VPS Four wheel drive (4WD).
KE#W7#. 2000cc. S. Arabia. 4WD 2012/02-2012/05 2.0L Petrol PE-VPS Four wheel drive (4WD).

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BOSCH No. BREMBO No. BREMBO No. BREMBO No. NIBK No. TEXTAR No.
BD-4512 0986479B15 09.C421.11 09.C654.11 09.C654.75 RN1516V 92257403
TEXTAR No. TRW No.
92257405 DF8052
