Full Product Catalog

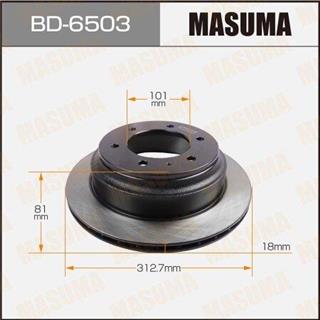

MASUMA BRAKE DISC
VENDOR CODE: BD-6503
Remark: Diameter of section circle:101 Standard thickness:81 Minimum thickness:18 Diameter of section circle:312.7
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
8-94046-081-0
8-94375-125-1
8-94375-425-0
8-94375-425-1
8-97034-036-1
8-97046-081-1
8-97207-702-0
BIGHORN
Chassis No. Year Configuration
UBS25DW 1992/03-1998/03 3.2L Petrol 6VD1 ECGI (200 hp / 147 kW) Four-wheel drive (4WD).
UBS25GW 1991/12-1998/03 3.2L Petrol 6VD1 ECGI (200 hp / 147 kW) Four-wheel drive (4WD).
UBS26DW 1998/02-2001/07 3.5L Petrol 6VE1 ECGI (230 hp / 169 kW) Four-wheel drive (4WD).
UBS26GW 1998/02-2002/12 3.5L Petrol 6VE1 ECGI (230 hp / 169 kW) Four-wheel drive (4WD).
UBS69DW 1992/03-1998/03 3.1L Diesel 4JG2 (125 hp / 92 kW) Four-wheel drive (4WD).
UBS69GW 1991/12-1998/03 3.1L Diesel 4JG2 (135 hp / 99 kW) Four-wheel drive (4WD).
UBS73DW 1998/02-2001/07 3.0L Diesel 4JX1 (160 hp / 118 kW) Four-wheel drive (4WD).
UBS73GW 1998/02-2002/12 3.0L Diesel 4JX1 (160 hp / 118 kW) Four-wheel drive (4WD).
MU
Chassis No. Year Configuration
UCS69DWM 1993/08-1998/07 3.1L Diesel 4JG2-T (120 hp / 88 kW) Four-wheel drive (4WD).
UES25EW 2000/03-2002/09 3.2L Petrol 6VD1 ECGI (215 hp / 158 kW) Four-wheel drive (4WD).
UES73EW 1998/09-2000/01 3.0L Diesel 4JX1-T (145 hp / 107 kW) Four-wheel drive (4WD).
UES73EW 1998/03-1998/08 3.0L Diesel 4JX1-T (145 hp / 107 kW) Four-wheel drive (4WD).
WIZARD
Chassis No. Year Configuration
UES25FW 1998/09-2002/09 3.2L Petrol 6VD1 ECGI (215 hp / 158 kW) Four-wheel drive (4WD).
UES25FW 1998/03-1998/08 3.2L Petrol 6VD1 ECGI (215 hp / 158 kW) Four-wheel drive (4WD).
UES73FW 1998/09-2002/09 3.0L Diesel 4JX1 (145 hp / 107 kW) Four-wheel drive (4WD).
UES73FW 1998/03-1998/08 3.0L Diesel 4JX1 (145 hp / 107 kW) Four-wheel drive (4WD).
VEHICROSS
Chassis No. Year Configuration
UGS25DW 1997/03-1999/02 3.2L Petrol 6VD1 ECGI (215 hp / 158 kW) Four-wheel drive (4WD).

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BOSCH No. BREMBO No. NIBK No. TEXTAR No. TRW No.
BD-6503 0986478496 09.7377.10 RN1105V 92091600 DF4030
