MASUMA BRAKE DISC

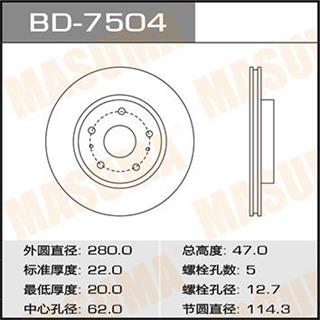

VENDOR CODE: BD-7504
Remark: Outer circle diameter:280.0 Total height:47.0 Standard thickness:22.0 Number of bolt holes:5 Minimum thickness:20.0 Bolt hole diameter:12.7 Center bore diameter: 62.0 Diameter of section circle:114.3
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
081127D2
55311-79J01
SX4
Chassis No. Year Configuration
RW415-2. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 81 kW) Front wheel drive.
RW415-2. 1500cc. 5D. M15A. Rus. 2006/01-2016/03 1.5L Gasoline M15A MPI (99 hp / 73 kW) Front wheel drive.
RW415-3. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Front wheel drive.
RW415-3. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 82 kW) Front wheel drive.
RW415-3. 1500cc. 5D. M15A. 4WD. 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 82 kW) Four-wheel drive (4WD).
RW415-3. 1500cc. 5D. M15A. Rus. 2006/01-2016/03 1.5L Gasoline M15A MPI (99 hp / 73 kW) Front wheel drive.
RW415-3. 1500cc. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 82 kW) Front wheel drive.
RW415-3. 1500cc. SEDAN. M15A. 4WD. 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Four-wheel drive (4WD).
RW415-4. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 82 kW) Front wheel drive.
RW415-4. 1500cc. 5D. M15A. 4WD. 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Four-wheel drive (4WD).
RW415-4. 1500cc. SEDAN. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Front wheel drive.
RW415-4. 1500cc. SEDAN. M15A. 4WD. 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Four-wheel drive (4WD).
RW415. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Front wheel drive.
RW415. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 82 kW) Front wheel drive.
RW415. 1500cc. 5D. M15A. 4WD. 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Four-wheel drive (4WD).
RW415. 1500cc. 5D. M15A. Rus. 2006/01-2016/03 1.5L Gasoline M15A MPI (99 hp / 73 kW) Front wheel drive.
RW415. 1500cc. SEDAN. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 82 kW) Front wheel drive.
RW415. 1500cc. SEDAN. M15A. 4WD. 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Four-wheel drive (4WD).
RW416-2. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-2. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-2. 1600cc. 5D. M16A. 4WD. 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416-2. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-3. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-3. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-3. 1600cc. 5D. M16A. 4WD. 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416-3. 1600cc. 5D. M16A. 4WD. Rus. 2006/01-2016/03 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416-3. 1600cc. 5D. M16A. Rus. 2006/01-2016/03 1.6L Gasoline M16A MPI (101 hp / 74 kW) Front wheel drive.
RW416-3. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-3. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-4. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-4. 1600cc. 5D. M16A. 4WD. Rus. 2010/01-2016/03 1.6L Gasoline M16A MPI (117 hp / 86 kW) Four-wheel drive (4WD).
RW416-4. 1600cc. 5D. M16A. Rus. 2010/01-2016/03 1.6L Gasoline M16A MPI (117 hp / 86 kW) Front wheel drive.
RW416-4. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-4. 1600cc. SEDAN. M16A. Rus. 2010/01-2012/07 1.6L Gasoline M16A MPI (117 hp / 86 kW) Front wheel drive.
RW416-5. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-5. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416. 1600cc. 5D. M16A. 4WD. 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416D-2. 1600cc. 5D. 9HX. turbo. Diz. 2006/01-2014/12 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D-2. 1600cc. 5D. 9HX. turbo. Diz. Rus. 2006/01-2016/03 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D-3. 1600cc. 5D. 9HX. turbo. Diz. 2006/01-2014/12 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D-3. 1600cc. 5D. 9HX. turbo. Diz. Rus. 2006/01-2016/03 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D. 1600cc. 5D. 9HX. turbo. Diz. 2006/01-2014/12 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D. 1600cc. 5D. 9HX. turbo. Diz. Rus. 2006/01-2016/03 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. 4WD. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. 4WD. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW419D. 1900cc. 5D. D19AA. turbo. Diz. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW419D. 1900cc. 5D. D19AA. turbo. Diz. 4WD. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D. 1900cc. 5D. D19AA. turbo. Diz. 4WD. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D. 1900cc. 5D. D19AA. turbo. Diz. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW420D-3. 1900cc. 5D. D19AA. turbo. Diz. 4WD. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW420D-3. 1900cc. 5D. D19AA. turbo. Diz. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW420D-3. 2000cc. 5D. D20AA. turbo. Diz. 2006/01-2014/12 2.0L Diesel D20AA (135 hp / 99 kW) Front wheel drive.
RW420D-3. 2000cc. 5D. D20AA. turbo. Diz. 4WD. 2006/01-2014/12 2.0L Diesel D20AA (135 hp / 99 kW) Four-wheel drive (4WD).
YA11S 2006/05-2014/11 1.5L Gasoline M15A EPI (111 hp / 81 kW) Front wheel drive.
YA41S 2006/05-2009/01 2.0L Gasoline J20A EPI (145 hp / 107 kW) Front wheel drive.
YB11S 2006/05-2014/11 1.5L Gasoline M15A EPI (110 HP / 81 kW) Four-wheel drive (4WD).
YB41S 2006/05-2009/01 2.0L Gasoline J20A EPI (145 hp / 107 kW) Four-wheel drive (4WD).
YC11S 2007/06-2014/11 1.5L Petrol M15A EPI (111 hp / 82 kW) Front wheel drive.

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BOSCH No. BREMBO No. BREMBO No. NIBK No. TEXTAR No. TEXTAR No.
BD-7504 0986479403 09.A296.11 09.A296.14 RN1320V 92156600 92222100
TRW No.
DF4741
