MASUMA BRAKE DISC
VENDOR CODE: BD-E0010

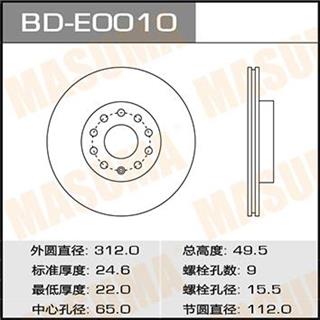

Remark: Outer circle diameter:312.0 Total height:49.5 Number of bolt holes:9 Standard thickness:24.6 Minimum thickness: 22.0 Bolt hole diameter:15.5 Center bore diameter: 65.0 Diameter of section circle: 112.0
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
OEM
BRAND NUMBER
1K0615301AA
561615301A
561615301B
5C0615301B
5C0615301E
5Q0615301F
5QM615301A
JZW615301H

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BOSCH No. BOSCH No. BOSCH No. BREMBO No. BREMBO No. BREMBO No.
BD-E0010 0986479058 0986AB6003 0986T16003 09.9772.10 09.9772.11 09.9772.1X
BREMBO No. NIBK No. TEXTAR No. TEXTAR No. TEXTAR No. TRW No.
09.9772.75 RN1377V 92120500 92120503 92120505 DF4464S
