MASUMA BRAKE DISC
VENDOR CODE: BD-E0060R

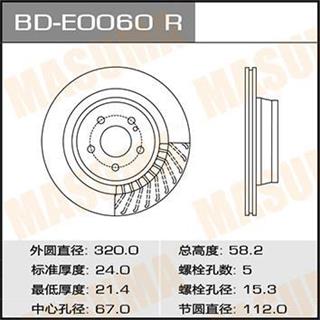

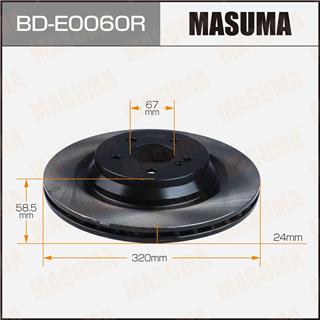

Remark: Outer circle diameter:320.0 Total height:58.2 Standard thickness:24.0 Number of bolt holes:5 Minimum thickness: 21.4 Bolt hole diameter:15.3 Center bore diameter: 67.0 Diameter of section circle:112.0
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
A2214230412
S-CLASS
Chassis No. Year Configuration
-
-
221.003, 221.103 -
221.022, 221.122 -
221.026, 221.126 -
221.028, 221.128 -
221.028, 221.128 -
221.054 -
221.054, 221.154 -
221.056, 221.156 -
221.057, 221.157 -
221.070, 221.170 -
221.071, 221.171 -
221.073, 221.173 -
221.080, 221.081 -
221.080, 221.180 -
221.080, 221.180 -
221.080, 221.180 -
221.082, 221.182 -
221.083, 221.183 -
221.084, 221.184 -
221.086, 221.186 -
221.087, 221.187 -
221.094, 221.194 -
221.095, 221.195 -
221.176 -
222.085, 222.185 -
S-CLASS Coupe
Chassis No. Year Configuration
216.371 -
216.373 -
216.376 -
216.386 -
216.394 -
SL
Chassis No. Year Configuration
230.471 -

Masuma brake discs are made from ductile iron with nodular graphite. The high precision of the castings with tolerances of up to several microns guarantees the correct geometry of the disk and the absence of vibrations during operation.

Masuma manufactures two types of brake discs: ventilated and non-ventilated . Almost all models have a non-directional coating of the working surface. This ensures fast and uniform lapping after installation.

Warranty for brake discs 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. BOSCH No. BOSCH No. BREMBO No. NIBK No. TEXTAR No. TEXTAR No.
BD-E0060R 0986479629 0986T16754 09.A818.11 RN1783V 92160703 92160705
TRW No.
DF4916S
