MASUMA BRAKE SHOE
VENDOR CODE: MK-2260

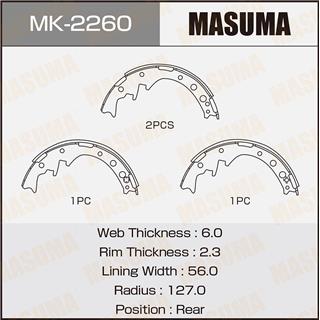

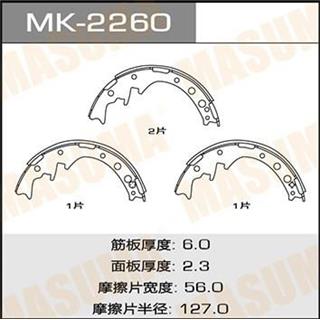

Remark: Web Thickness : 6.0 Rim Thickness : 2.3 Lining Width : 56.0 Radius : 127.0 Position : Rear
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
04495-26020
04495-26021
04495-26040
04495-26041
04495-26150
04495-26200
04495-35031
04495-35041
04495-35050
04495-35051
04495-35052
04495-35071
0449535080
04495-35081
04495-35090
04495-35100
04495-35101
04495-35120
04495-35121
04495-35122
04495-35140
04495-35141
04495-35180
04497-26020
04497-26030
04497-35040
04497-35041
04497-35050
04497-35070
3502160D01
HIACE TRUCKS
Chassis No. Year Configuration
LH80 1988/09-1992/04 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LH80 1992/04-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LH80 1985/08-1988/09 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LH80 1985/08-1987/08 2.4L Diesel 2L (85 hp / 63 kW) Rear wheel drive.
LH80 1988/09-1992/04 2.4L Diesel 2L (85 hp / 63 kW) Rear wheel drive.
LH80 1992/04-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Rear wheel drive.
LH85 1987/01-1988/09 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH85 1988/09-1992/04 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH85 1992/04-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH85 1987/01-1988/09 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH85 1988/09-1992/04 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH85 1992/04-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH90 1992/04-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LH90 1991/09-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LH90 1991/09-1992/04 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LH90 1991/09-1992/04 2.4L Diesel 2L (85 hp / 63 kW) Rear wheel drive.
LH90 1992/04-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Rear wheel drive.
LH90 1991/09-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Rear wheel drive.
LH95 1991/09-1992/04 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH95 1992/04-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH95 1991/09-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH95 1991/09-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH95 1991/09-1992/04 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH95 1992/04-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LY101 1995/05-1996/01 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LY111 1995/05-1996/01 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LY151 1995/05-1996/01 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LY161 1995/05-1996/01 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
YH81 1987/08-1988/09 1.8L Petrol 2Y (79 hp / 58 kW) Rear wheel drive.
YH81 1992/04-1995/05 1.8L Petrol 2Y (79 hp / 58 kW) Rear wheel drive.
YH81 1988/09-1992/04 1.8L Petrol 2Y (79 hp / 58 kW) Rear wheel drive.
YY101 1995/05-1996/01 2.0L Petrol 3Y (88 hp / 65 kW) Rear wheel drive.
HILUX
Chassis No. Year Configuration
LN80 1990/01-1994/08 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LN80 1988/09-1990/01 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LN85 1988/09-1990/01 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LN85 1990/01-1994/08 2.4L Diesel 2L (83 hp / 61 kW) Rear wheel drive.
LN86 1994/08-1997/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
YN80 1988/09-1990/01 1.8L Petrol 2Y (83 hp / 61 kW) Rear wheel drive.
YN80 1990/01-1994/08 1.8L Petrol 2Y (83 hp / 61 kW) Rear wheel drive.
YN85 1988/09-1990/01 1.8L Petrol 2Y (83 hp / 61 kW) Rear wheel drive.
YN85 1990/01-1994/08 1.8L Petrol 2Y (83 hp / 61 kW) Rear wheel drive.
YN86 1994/08-1997/08 2.0L Petrol 3YE EFI (97 HP / 71 kW) Rear wheel drive.
DYNA
Chassis No. Year Configuration
LY101 1996/01-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LY102 1999/05-2001/07 3.0L Diesel 5L (97 HP / 71 kW) Rear wheel drive.
LY111 1996/01-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LY112 1999/05-2001/07 3.0L Diesel 5L (97 HP / 71 kW) Rear wheel drive.
LY151 1996/01-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LY151 1996/01-1999/05 2.8L Diesel 3L (97 hp / 67 kW) Four-wheel drive (4WD).
LY152 1999/05-2001/07 3.0L Diesel 5L (97 hp / 71 kW) Four-wheel drive (4WD).
LY161 1996/01-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LY162 1999/05-2001/07 3.0L Diesel 5L (97 hp / 71 kW) Four-wheel drive (4WD).
LY201 1995/05-1996/01 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LY201 1995/05-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LY50 1988/09-1992/04 2.4L Diesel 2L (84 hp / 62 kW) Rear wheel drive.
LY50 1987/08-1988/09 2.4L Diesel 2L (84 hp / 62 kW) Rear wheel drive.
LY50 1992/04-1995/05 2.4L Diesel 2L (84 hp / 62 kW) Rear wheel drive.
YY51 1988/09-1992/04 1.8L Petrol 2Y Carburetor (79 HP / 58 kW) Rear wheel drive.
YY51 1987/08-1988/08 1.8L Petrol 2Y Carburetor (79 HP / 58 kW) Rear wheel drive.
YY51 1988/08-1988/09 1.8L Petrol 2Y Carburetor (79 HP / 58 kW) Rear wheel drive.
YY51 1992/04-1993/09 1.8L Petrol 2Y Carburetor (79 HP / 58 kW) Rear wheel drive.
YY52 1992/04-1995/05 2.0L Gasoline 3Y Carburetor (86 HP / 63 kW) Rear wheel drive.
YY52 1993/09-1995/05 2.0L Gasoline 3Y Carburetor (86 HP / 63 kW) Rear wheel drive.

Masuma drum pads are manufactured using Semi-Metallic technology on modern equipment, taking into account the latest advances in the field of brake systems. Specially selected friction materials provide a minimum braking distance, smooth and efficient braking, small and uniform wear of the brake drum, without causing creaking, whistling and vibration.

12 month warranty on drum pads . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. NIBK No.
MK-2260 FN2260
