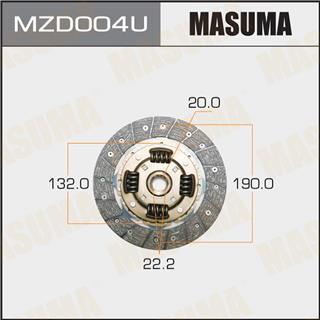

MASUMA CLUTCH DISC
VENDOR CODE: MZD004U
Remark: Number of teeth:20 Outer diameter1:132mm Outer diameter2:190mm Bore Diameter:22.2mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
30100-HC000
30100-HC001
30100-HC002
B504-16-460
B504-16-460A
B504-16-460B
B504-16-460C
B504-16-460D
B506-16-460
B506-16-460A
B508-16-460
B601-16-460
B609-16-460
B609-16-460A
B609-16-460B
B628-16-460
B628-16-460A
B628-16-460B
B628-16-460C
B6Y2-16-46
D405-16-460
D405-16-460A
D405-16-460B
D405-16-460C
ZJ01-16-460A
FAMILIA ASTINA
Chassis No. Year Configuration
BG5P 1989/01-1994/04 1.5L Petrol B5 EGI (82 hp / 60 kW) Front wheel drive.
BG5P 1989/01-1994/04 1.5L Petrol B5 SPI (82 hp / 60 kW) Front wheel drive.
FAMILIA
Chassis No. Year Configuration
BG5P 1990/02-1994/04 1.5L Petrol B5 EGI (82 hp / 60 kW) Front wheel drive.
BG5P 1989/01-1994/04 1.5L Petrol B5 SPI (82 hp / 60 kW) Front wheel drive.
BG5S 1989/01-1994/04 1.5L Petrol B5 EGI (82 hp / 63 kW) Front wheel drive.
BG5S 1989/01-1994/04 1.5L Petrol B5 SPI (82 hp / 60 kW) Front wheel drive.
EUNOS 100
Chassis No. Year Configuration
BG5PE 1989/01-1994/06 1.5L Petrol B5-DE EGI (120 HP / 88 kW) Front wheel drive.
FORD LASER
Chassis No. Year Configuration
BG5PF 1989/03-1994/03 1.5L Petrol B5 EGI (73 hp / 54 kW) Front wheel drive.
BG5PF 1989/03-1994/03 1.5L Petrol B5 EGI (82 hp / 60 kW) Front wheel drive.
BG5PF 1989/03-1994/03 1.5L Petrol B5 SPI (73 hp / 54 kW) Front wheel drive.
FORD FESTIVA
Chassis No. Year Configuration
D25PF 1993/11-1997/01 1.5L Petrol B5-ME EGI (100 HP / 74 kW) Front wheel drive.
AUTOZAM REVUE
Chassis No. Year Configuration
DB5PA 1993/09-1997/01 1.5L Petrol B5-MI SPI (88 HP / 65 kW) Front wheel drive.
REVUE
Chassis No. Year Configuration
DB5PA 1997/01-1999/02 1.5L Petrol B5-MI SPI (88 hp / 65 kW) Front wheel drive.
DEMIO
Chassis No. Year Configuration
DW19#. 1300cc. B3-E. 5D. euro. 2000/01-2002/12 1.3L Petrol B3-E EGI (63 hp / 46 kW) Front wheel drive.
DW19#. 1300cc. B3-E. 5D. euro. 1998/05-2000/01 1.3L Petrol B3-E EGI (63 hp / 46 kW) Front wheel drive.
DW19#. 1500cc. B5-E. 5D. euro. 2000/01-2002/12 1.5L Petrol B5-E EGI (75 hp / 55 kW) Front wheel drive.
DW3W 1996/07-1999/12 1.3L Petrol B3-ME EGI (85 hp / 63 kW) Front wheel drive.
DW3W 1999/12-2002/08 1.3L Petrol B3E EGI (83 hp / 61 kW) Front wheel drive.
DW5W 1996/07-1999/12 1.5L Petrol B5-ME EGI (100 HP / 74 kW) Front wheel drive.
DW5W 1999/12-2002/08 1.5L Petrol B5E EGI (100 HP / 74 kW) Front wheel drive.
DY3W 2002/06-2007/07 1.3L Gasoline ZJ-VE EGI (90 hp / 66 kW) Front wheel drive.
DY5W 2002/06-2007/07 1.5L Gasoline ZY-VE EGI (115 hp / 85 kW) Front wheel drive.
FORD FESTIVA MINIWAGON
Chassis No. Year Configuration
DW3WF 1996/07-2002/06 1.3L Gasoline B3-ME EGI (55 hp / 40 kW) Front wheel drive.
AUTOZAM AZ-3
Chassis No. Year Configuration
EC5SA 1991/06-1992/06 1.5L Petrol B5 EGI (88 hp / 65 kW) Front wheel drive.
EC5SA 1992/07-1993/09 1.5L Petrol B5 EGI (88 hp / 65 kW) Front wheel drive.
EC5SA 1997/07-1997/09 1.5L Petrol B5-ZE EGI (115 hp / 85 kW) Front wheel drive.
ECPSA 1997/07-1998/06 1.8L Gasoline K8-ZE EGI (140 hp / 103 kW) Front wheel drive.
BONGO
Chassis No. Year Configuration
SE48T 1986/11-1990/01 1.4L Petrol UC Carburetor (60 HP / 44 kW) Rear wheel drive.
SE58T 1993/11-1995/05 1.5L Petrol D5 Carburetor (67 HP / 49 kW) Rear wheel drive.
SE58T 1990/01-1993/11 1.5L Petrol D5 Carburetor (67 HP / 49 kW) Rear wheel drive.
SE58T 1995/05-1995/08 1.5L Petrol D5 Carburetor (67 HP / 49 kW) Rear wheel drive.
SS58V 1990/07-1995/09 1.5L Petrol D5 Carburetor (67 HP / 49 kW) Rear wheel drive.
SS58V 1990/07-1995/09 1.5L Petrol D5 Carburetor (69 HP / 51 kW) Rear wheel drive.
VANETTE TRUCKS
Chassis No. Year Configuration
SE58TN 1994/04-1995/08 1.5L Gasoline GAS15 Carburetor (85 HP / 63 kW) Rear wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
MZD004U
