MASUMA CLUTCH DISC
VENDOR CODE: NSD021U

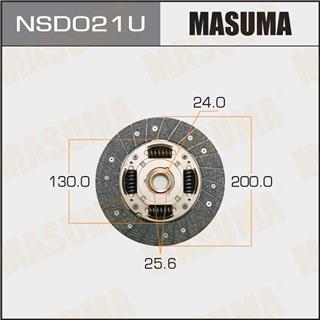

Remark: Number of teeth:24 Outer diameter1:130mm Outer diameter2:200mm Bore Diameter:25.6mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
30100-05E05
30100-05E06
30100-0C412
30100-18L60
30100-36E60
30100-43S05
30100-43S20
30100-51E08
30100-51E10
30100-51E11
30100-51E14
30100-51E18
30100-G3700
30100-G3701
30100-G5501
30100-G5502
30100-G5507
30100-G5508
C0100-51E00
C0100-51E01
VANETTE SERENA
Chassis No. Year Configuration
KAJC23 1991/06-1994/05 1.6L Gasoline GA16DE EGI (102 hp / 75 kW) Rear wheel drive.
KVJC23 1991/06-1993/08 2.0L Diesel CD20 (76 hp / 56 kW) Rear wheel drive.
SERENA
Chassis No. Year Configuration
KAJC23 1994/05-1997/01 1.6L Gasoline GA16DE EGI (102 hp / 75 kW) Rear wheel drive.
VANETTE TRUCKS
Chassis No. Year Configuration
UGJC22 1988/11-1994/04 2.0L Diesel LD20 (67 HP / 49 kW) Rear wheel drive.
UJC22 1988/11-1994/04 2.0L Diesel LD20 (67 HP / 49 kW) Rear wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
NSD021U
