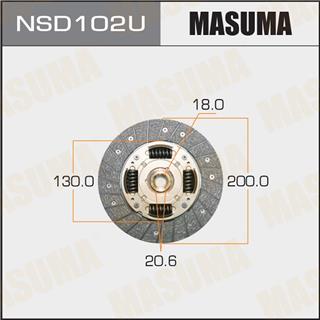

MASUMA CLUTCH DISC
VENDOR CODE: NSD102U
Remark: Number of teeth:18 Outer diameter1:130mm Outer diameter2:200mm Bore Diameter:20.6mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
1N11-16-460
1N18-16-460
30100-0M900
30100-54C00
30100-54C01
30100-54C09
30100-54C10
30100-54C12
30100-54C19
30100-54C20
30100-62Y09
30100-62Y20
30100-8E101
30100-8E110
30100-8E114
C0100-54C14
C0100-54C20
C0100-81N00
C0100-81N02
ALMERA
Chassis No. Year Configuration
N15. 2000cc. 3D. CD20. Diz. 1995/07-1998/01 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
N15. 2000cc. 3D. CD20. Diz. 1998/01-2000/04 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
N15. 2000cc. 5D. CD20. Diz. 1995/07-1998/01 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
N15. 2000cc. 5D. CD20. Diz. 1998/01-2000/04 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
N15. 2000cc. CD20. Diz. 1998/01-2000/04 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
N15. 2000cc. CD20. Diz. 1995/07-1998/01 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
SUNNY
Chassis No. Year Configuration
SB13 1992/11-1994/01 1.7L Diesel CD17 (60 hp / 44 kW) Front wheel drive.
SB14 1994/01-1998/01 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
PULSAR
Chassis No. Year Configuration
SN14 1990/08-1995/01 1.7L Diesel CD17 (60 hp / 44 kW) Front wheel drive.
SN15 1995/01-2000/08 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
BLUEBIRD
Chassis No. Year Configuration
SU13 1991/09-1996/01 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
SU14 1996/01-1998/09 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
SU14 1998/09-2001/09 2.0L Diesel CD20E (76 hp / 56 kW) Front wheel drive.
AD MAX
Chassis No. Year Configuration
VEGY10 1997/05-1999/05 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
AD
Chassis No. Year Configuration
VSNY10 1990/01-1997/05 1.7L Diesel CD17 (60 hp / 44 kW) Four-wheel drive (4WD).
WEY10 1993/08-1996/05 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.
WINGROAD
Chassis No. Year Configuration
WEY10 1996/05-1999/05 2.0L Diesel CD20 (75 hp / 55 kW) Front wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
NSD102U
