MASUMA CLUTCH DISC
VENDOR CODE: NSD122U

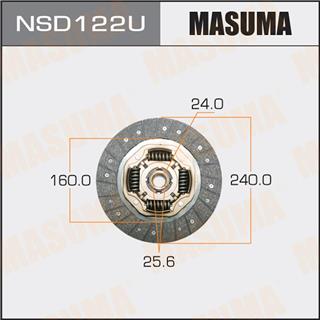

Remark: Number of teeth:24 Outer diameter1:240mm Outer diameter2:160mm Bore Diameter:25.6mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
30100-01T65
30100-87G05
CONDOR
Chassis No. Year Configuration
SN2F23 1996/11-1999/06 2.5L Diesel TD25 (80 HP / 59 kW) Rear wheel drive.
SN4F23 1996/11-1999/06 2.5L Diesel TD25 Rear wheel drive.
SN6F23 1996/11-1999/06 2.5L Diesel TD25 (80 hp / 59 kW) Four-wheel drive (4WD).
SP2F23 1996/11-1997/08 2.7L Diesel TD27 (85 hp / 63 kW) Rear wheel drive.
SP4F23 1996/11-1997/08 2.7L Diesel TD27 (85 hp / 63 kW) Rear wheel drive.
SP8F23 1996/11-1997/08 2.7L Diesel TD27 (85 hp / 63 kW) Four-wheel drive (4WD).
ATLAS
Chassis No. Year Configuration
SN2F23 1996/11-1999/06 2.5L Diesel TD25 Rear wheel drive.
SN4F23 1996/11-1999/06 2.5L Diesel TD25 Rear wheel drive.
SN6F23 1996/11-1999/06 2.5L Diesel TD25 Four wheel drive (4WD).
SP2F23 1996/11-1997/08 2.7L Diesel TD27 Rear wheel drive.
SP4F23 1996/11-1997/08 2.7L Diesel TD27 Rear wheel drive.
SP8F23 1996/11-1997/08 2.7L Diesel TD27 Four wheel drive (4WD).

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
NSD122U
