MASUMA CLUTCH DISC
VENDOR CODE: SZD020U

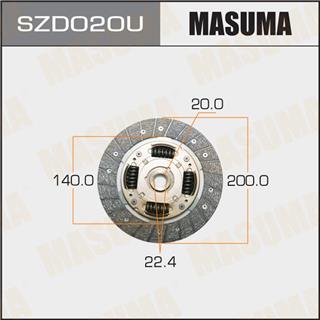

Remark: Number of teeth:20 Outer diameter1:140mm Outer diameter2:200mm Bore Diameter:22.4mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
22400-54G40
22400-60A01
22400-60A02
22400-60A03
22400-60A04
22400-60AA0
22400-60AV0
22400-64G40
22400-64G41
22400-64G60
22400-70C02
22400-70C40
22400-75C00
CULTUS
Chassis No. Year Configuration
AF34S 1991/07-1995/01 1.3L Gasoline G13B EPI (115 hp / 85 kW) Four-wheel drive (4WD).
AF34S 1991/07-2000/05 1.3L Gasoline G13B EPI (82 hp / 60 kW) Four-wheel drive (4WD).
AH64S 1991/07-1994/09 1.5L Gasoline G15A EPI (91 hp / 67 kW) Front wheel drive.
GB31S 1998/05-1999/06 1.6L Gasoline G16A EPI (115 hp / 85 kW) Four-wheel drive (4WD).
GC41W 1998/05-2002/07 1.8L Gasoline J18A EPI (135 hp / 99 kW) Front wheel drive.
GD31S 1998/05-2001/09 1.6L Gasoline G16A EPI (115 hp / 85 kW) Four-wheel drive (4WD).
GD31W 1998/05-2002/07 1.6L Gasoline G16A EPI (115 hp / 85 kW) Four-wheel drive (4WD).
CULTUS CRESCENT
Chassis No. Year Configuration
GB21S 1995/01-1996/01 1.5L Gasoline G15A EPI (97 hp / 71 kW) Four-wheel drive (4WD).
GB31S 1996/02-1998/04 1.6L Gasoline G16A EPI (115 hp / 85 kW) Four-wheel drive (4WD).
GC41W 1996/02-1998/04 1.8L Gasoline J18A EPI (135 hp / 99 kW) Front wheel drive.
GD21S 1995/01-1996/01 1.5L Gasoline G15A EPI (97 hp / 71 kW) Four-wheel drive (4WD).
GD31S 1996/02-1998/04 1.6L Gasoline G16A EPI (115 hp / 85 kW) Four-wheel drive (4WD).
GD31W 1996/02-1998/04 1.6L Gasoline G16A EPI (115 hp / 85 kW) Four-wheel drive (4WD).
AERIO
Chassis No. Year Configuration
RA21S 2001/01-2007/07 1.5L Gasoline M15A EPI (110 HP / 81 kW) Four-wheel drive (4WD).
RA21S 2001/01-2007/07 1.5L Gasoline M15A EPI (110 HP / 81 kW) Front wheel drive.
RB21S 2001/01-2006/06 1.5L Gasoline M15A EPI (110 HP / 81 kW) Four-wheel drive (4WD).
RB21S 2001/01-2006/06 1.5L Gasoline M15A EPI (110 HP / 81 kW) Front wheel drive.
RC51S 2002/12-2007/07 1.8L Gasoline M18A EPI (125 hp / 92 kW) Four-wheel drive (4WD).
RC51S 2002/12-2007/07 1.8L Gasoline M18A EPI (125 hp / 92 kW) Front wheel drive.
RD51S 2002/12-2006/06 1.8L Gasoline M18A EPI (125 hp / 92 kW) Four-wheel drive (4WD).
RD51S 2002/12-2006/06 1.8L Gasoline M18A EPI (125 hp / 92 kW) Front wheel drive.
ESCUDO
Chassis No. Year Configuration
TA01R 1988/05-1990/08 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD).
TA01V 1988/05-1990/08 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD).
TA01W 1988/05-1990/08 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD).

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
SZD020U
