Full Product Catalog

MASUMA CLUTCH DISC
VENDOR CODE: TYD032U

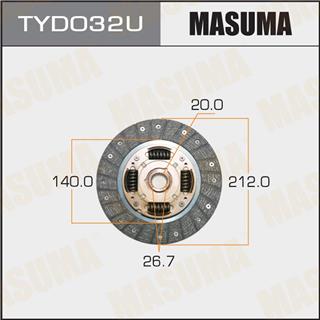

Remark: Number of teeth:20 Outer diameter1:140mm Outer diameter2:212mm Bore Diameter:26.7mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
31250-12260
31250-12280
31250-12281
31250-12282
31250-12283
31250-32020
31250-32027
31250-32120
31250-32121
COROLLA
Chassis No. Year Configuration
CE100 1991/06-1995/05 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE100G 1995/05-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE106V 1991/09-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE108G 1991/09-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE110 1995/05-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
SPRINTER
Chassis No. Year Configuration
CE100 1991/06-1995/05 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE106V 1991/09-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE108G 1991/09-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CE110 1995/05-1998/04 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CARINA
Chassis No. Year Configuration
CT170G 1990/05-1992/11 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CT190 1992/08-1996/08 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CORONA
Chassis No. Year Configuration
CT190 1992/02-1996/01 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CALDINA
Chassis No. Year Configuration
CT190G 1992/11-1996/01 2.0L Diesel 2C (73 hp / 54 kW) Front wheel drive.
CT190G 1996/01-1997/08 2.0L Diesel 2CT (88 hp / 65 kW) Front wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
TYD032U
