Full Product Catalog

MASUMA CLUTCH DISC
VENDOR CODE: TYD034U

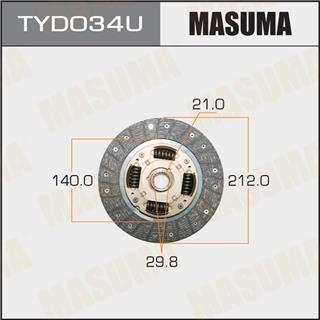

Remark: Number of teeth:21 Outer diameter1:140mm Outer diameter2:212mm Bore Diameter:29.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
31250-0B020
31250-14110
31250-20110
31250-20111
31250-20112
31250-20113
31250-20115
31250-20116
31250-20117
31250-20118
31250-22191
31250-22193
31250-22194
31250-25020
31250-25090
31250-25091
31250-25100
31250-26040
31250-27025
31250-27110
31250-28011
31250-28120
31250-28121
31250-28170
31250-35062
31250-35063
31250-35064
31250-35065
DELTA VAN
Chassis No. Year Configuration
CR41 1997/01-1999/01 2.0L Diesel 2C (70 HP / 51 kW) Rear wheel drive.
CR41 1996/01-1997/09 2.0L Diesel 2C (70 HP / 51 kW) Rear wheel drive.
KR42 1996/01-1999/01 1.8L Petrol 7K Carburetor (76 HP / 56 kW) Rear wheel drive.
KR42 1999/01-2002/08 1.8L Petrol 7K-E EFI (82 hp / 60 kW) Rear wheel drive.
TOWNACE TRUCKS
Chassis No. Year Configuration
CM50 1986/01-1989/01 1.8L Diesel 1C (63 hp / 46 kW) Rear wheel drive.
CM51 1986/01-1999/06 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CM52 1991/01-1999/06 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CM55 1986/01-1999/06 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
KM50 1986/01-1990/08 1.3L Petrol 4K (58 HP / 43 kW) Rear wheel drive.
LITEACE TRUCKS
Chassis No. Year Configuration
CM50 1986/01-1989/01 1.8L Diesel 1C (73 hp / 54 kW) Rear wheel drive.
CM51 1986/01-1999/06 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CM52 1991/01-1999/06 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CM55 1986/01-1999/06 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
KM50 1986/01-1990/08 1.3L Petrol 4K (58 HP / 43 kW) Rear wheel drive.
LITEACE
Chassis No. Year Configuration
CR27V 1992/01-1996/01 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CR41V 1996/11-1998/12 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CR42V 1998/12-2004/07 2.2L Diesel 3CE EFI (79 HP / 58 kW) Rear wheel drive.
KM70 1999/06-2006/03 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
KM75 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
KM80 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KM85 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KR42V 1996/11-1998/12 1.8L Petrol 7K (76 hp / 56 kW) Rear wheel drive.
KR42V 1998/12-2006/04 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
YM31V 1990/08-1992/01 1.8L Petrol 2YJ (79 hp / 58 kW) Rear wheel drive.
YR25V 1992/01-1996/01 1.8L Petrol 2YJ (79 hp / 58 kW) Rear wheel drive.
TOWNACE
Chassis No. Year Configuration
CR27V 1992/01-1996/01 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CR41V 1996/11-1998/12 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
CR42V 1998/12-2004/07 2.2L Diesel 3CE EFI (79 HP / 58 kW) Rear wheel drive.
KM70 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
KM75 1999/06-2006/03 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
KM80 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KM85 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KR42V 1996/11-1998/12 1.8L Petrol 7K (76 hp / 56 kW) Rear wheel drive.
KR42V 1998/12-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
YR25V 1992/01-1996/01 1.8L Petrol 2YJ (79 hp / 58 kW) Rear wheel drive.
YR25V 1988/08-1992/01 1.8L Petrol 2YJ (79 hp / 58 kW) Rear wheel drive.
DELIBOY
Chassis No. Year Configuration
CXC10V 1991/05-1994/09 2.0L Diesel 2C (73 hp / 54 kW) Rear wheel drive.
TOYOACE
Chassis No. Year Configuration
RY20 1979/03-1982/01 1.6L Petrol 12R Carburetor (83 HP / 61 kW) Rear wheel drive.
RY21 1982/01-1985/07 1.6L Petrol 12R Carburetor (83 HP / 61 kW) Rear wheel drive.
RY21V 1982/01-1985/07 1.6L Petrol 12R Carburetor (83 HP / 61 kW) Rear wheel drive.
YY50 1985/08-1987/08 1.6L Petrol 1Y Carburetor (84 HP / 62 kW) Rear wheel drive.
MARK II WAGON
Chassis No. Year Configuration
YX76V 1988/12-1993/02 1.8L Petrol 2YJ (95 hp / 70 kW) Rear wheel drive.
DYNA
Chassis No. Year Configuration
YY50 1985/08-1987/08 1.6L Petrol 1Y Carburetor (84 HP / 62 kW) Rear wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
TYD034U
