Full Product Catalog

MASUMA CLUTCH DISC
VENDOR CODE: TYD124U

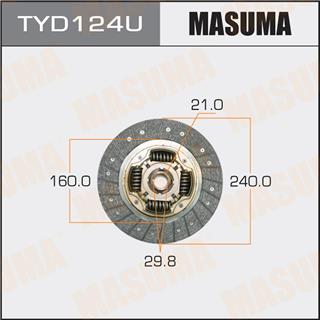

Remark: Number of teeth:21 Outer diameter1:160mm Outer diameter2:240mm Bore Diameter:29.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
31250-14181
31250-14182
31250-14183
31250-14184
31250-22350
31250-22351
31250-22352
31250-22353
31250-22370
31250-30370
31250-30371
31250-30372
RAV4
Chassis No. Year Configuration
CLA20L 2001/05-2002/06 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four-wheel drive (4WD).
CLA20L 2003/11-2005/11 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four-wheel drive (4WD).
CLA20L 2002/06-2003/11 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four-wheel drive (4WD).
CLA21L 2003/11-2005/11 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four-wheel drive (4WD).
CLA21L 2002/06-2003/11 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four-wheel drive (4WD).
CLA21L 2001/05-2002/06 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four-wheel drive (4WD).
SUPRA
Chassis No. Year Configuration
JZA70 1990/08-1993/05 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
CHASER
Chassis No. Year Configuration
JZX100 1996/09-1997/09 2.5L Petrol 1JZGE EFI (200 HP / 147 kW) Rear wheel drive.
JZX100 1996/09-2001/06 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
JZX90 1992/01-1996/09 2.5L Petrol 1JZGE EFI (180 HP / 132 kW) Rear wheel drive.
JZX90 1992/01-1996/09 2.5L Petrol 1JZGE EFI (280 HP / 206 kW) Rear wheel drive.
JZX90 1992/01-1996/09 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
MARK II
Chassis No. Year Configuration
JZX100 1996/09-1997/09 2.5L Petrol 1JZGE EFI (200 HP / 147 kW) Rear wheel drive.
JZX100 1996/09-2000/01 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
JZX110 2000/01-2004/11 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
JZX90 1992/01-1996/09 2.5L Petrol 1JZGE EFI (180 HP / 132 kW) Rear wheel drive.
JZX90 1992/01-1996/09 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
VEROSSA
Chassis No. Year Configuration
JZX110 2001/06-2004/04 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
CRESTA
Chassis No. Year Configuration
JZX90 1992/01-1996/09 2.5L Petrol 1JZGE EFI (180 HP / 132 kW) Rear wheel drive.
JZX90 1992/01-1996/09 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.
SOARER
Chassis No. Year Configuration
JZZ30 1991/05-2000/12 2.5L Petrol 1JZGTE EFI (280 HP / 206 kW) Rear wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
TYD124U
