MASUMA CLUTCH DISC
VENDOR CODE: TYD126U

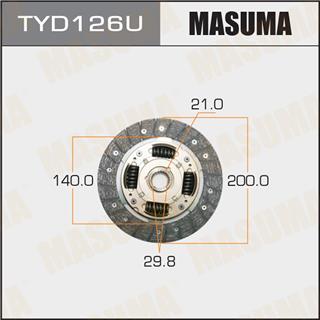

Remark: Number of teeth:21 Outer diameter1:140mm Outer diameter2:200mm Bore Diameter:29.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
31250-20020
31250-20021
31250-20022
31250-20023
31250-20024
31250-20030
31250-20050
31250-20051
31250-20052
31250-20053
31250-20090
31250-20091
31250-20092
31250-20093
31250-22021
31250-22022
31250-22023
31250-22024
31250-22090
31250-22091
31250-27023
31250-27025
31250-27060
31250-27061
31250-27070
31250-27071
31250-27072
31250-27090
31250-27091
31250-27092
31250-28140
31250-28141
31250-28142
DELTA VAN
Chassis No. Year Configuration
KR41 1997/02-1999/01 1.5L Petrol 5K-J Carburetor (70 HP / 51 kW) Rear wheel drive.
KR41 1996/01-1997/02 1.5L Petrol 5K-J Carburetor (70 HP / 51 kW) Rear wheel drive.
LITEACE TRUCKS
Chassis No. Year Configuration
KM50 1986/01-1990/08 1.3L Petrol 4K (58 HP / 43 kW) Rear wheel drive.
KM51 1986/01-1999/06 1.5L Petrol 5K (70 HP / 51 kW) Rear wheel drive.
TOWNACE TRUCKS
Chassis No. Year Configuration
KM50 1986/01-1990/08 1.3L Petrol 4K (58 HP / 43 kW) Rear wheel drive.
KM51 1986/01-1999/06 1.5L Petrol 5K (74 HP / 54 kW) Rear wheel drive.
LITEACE
Chassis No. Year Configuration
KR27V 1992/01-1996/01 1.5L Petrol 5KJ (70 HP / 51 kW) Rear wheel drive.
KR41V 1996/11-1998/12 1.5L Petrol 5K (70 HP / 51 kW) Rear wheel drive.
TOWNACE
Chassis No. Year Configuration
KR27V 1992/01-1996/01 1.5L Petrol 5KJ (70 HP / 51 kW) Rear wheel drive.
KR27V 1990/08-1992/01 1.5L Petrol 5KJ (70 HP / 51 kW) Rear wheel drive.
KR41V 1996/11-1998/12 1.5L Petrol 5K (70 HP / 51 kW) Rear wheel drive.
MASTERACE SURF
Chassis No. Year Configuration
KR27V 1990/08-1992/01 1.5L Petrol 5KJ (70 HP / 51 kW) Rear wheel drive.
DELIBOY
Chassis No. Year Configuration
KXC10V 1989/07-1995/11 1.5L Petrol 5K (70 HP / 51 kW) Rear wheel drive.

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
TYD126U
