MASUMA CLUTCH DISC
VENDOR CODE: TYD136

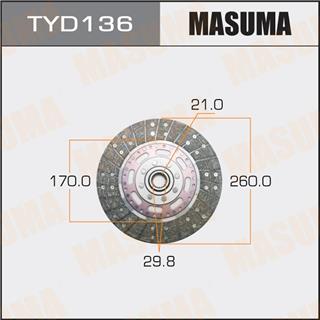

Remark: Number of teeth:21 Outer diameter1:170mm Outer diameter2:260mm Bore Diameter:29.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
31250-35330
31250-35331
31250-35332
31250-35333
31250-60240
LAND CRUISER PRADO
Chassis No. Year Configuration
KDJ90W 2000/08-2002/11 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four-wheel drive (4WD).
KDJ95W 2000/08-2002/11 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four-wheel drive (4WD).
KZJ71G 1993/05-1996/04 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZJ71W 1993/05-1996/04 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZJ78G 1993/05-1996/04 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZJ78W 1993/05-1996/04 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZJ90W 1996/04-2000/08 3.0L Diesel 1KZTE (140 hp / 103 kW) Four-wheel drive (4WD).
KZJ95W 1996/04-2000/08 3.0L Diesel 1KZTE (145 hp / 107 kW) Four-wheel drive (4WD).
HIACE
Chassis No. Year Configuration
KZH100G 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Rear wheel drive.
KZH106G 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZH106W 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZH110G 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Rear wheel drive.
KZH116G 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZH120G 1993/08-1997/09 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZH120G 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Rear wheel drive.
KZH126G 1993/08-1995/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
HILUX SURF
Chassis No. Year Configuration
KZN130G 1993/08-1995/11 3.0L Diesel 1KZTE (140 hp / 103 kW) Four-wheel drive (4WD).
KZN130G 1993/08-1995/11 3.0L Diesel 1KZTE (145 hp / 107 kW) Four-wheel drive (4WD).
KZN130W 1993/08-1995/11 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
KZN185W 1995/11-2000/08 3.0L Diesel 1KZTE (130 hp / 96 kW) Four-wheel drive (4WD).
LAND CRUISER
Chassis No. Year Configuration
PZJ70 1990/01-1994/01 3.5L Diesel 1PZ (115 hp / 85 kW) Four-wheel drive (4WD).
PZJ70V 1990/01-1994/01 3.5L Diesel 1PZ (115 hp / 85 kW) Four-wheel drive (4WD).
PZJ77HV 1990/04-1994/01 3.5L Diesel 1PZ (115 hp / 85 kW) Four-wheel drive (4WD).
PZJ77V 1990/04-1994/01 3.5L Diesel 1PZ (115 hp / 85 kW) Four-wheel drive (4WD).

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
TYD136
