MASUMA CLUTCH DISC
VENDOR CODE: MBD021U

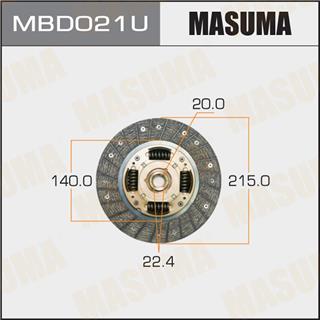

Remark: Number of teeth:20 Outer diameter1:140mm Outer diameter2:215mm Bore Diameter:22.4mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
MD718701
MD726440
MD732788
MD737562
MD740446
MD742858
MD748264
MD771222
MD771223
MIRAGE
Chassis No. Year Configuration
CB7A 1991/07-1992/01 1.8L Diesel 4D65T (76 hp / 56 kW) Front wheel drive.
CB8A 1992/01-1995/09 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
CC3A 1991/07-1995/09 1.5L Petrol 4G91 Carburetor (97 hp / 71 kW) Four wheel drive (4WD).
CC4A 1991/07-1995/09 1.6L Petrol 4G92 MPI (175 hp / 129 kW) Four-wheel drive (4WD).
CD3A 1991/07-1995/09 1.5L Petrol 4G91 Carburetor (97 hp / 71 kW) Four wheel drive (4WD).
CK8A 1995/08-1999/06 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
LANCER
Chassis No. Year Configuration
CB7A 1991/07-1992/01 1.8L Diesel 4D65T (76 hp / 56 kW) Front wheel drive.
CB8A 1993/12-1997/01 2.0L Diesel 4D68 (68 hp / 50 kW) Front wheel drive.
CB8A 1992/01-1995/09 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
CB8AR 1992/01-1996/08 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
CD3A 1991/07-1995/09 1.5L Petrol 4G91 Carburetor (97 hp / 71 kW) Four wheel drive (4WD).
CD4A 1992/05-1993/12 1.6L Petrol 4G92 MPI (94 hp / 69 kW) Four-wheel drive (4WD).
CK8A 1995/08-1995/01 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
LIBERO
Chassis No. Year Configuration
CB8V 1994/08-1997/09 2.0L Diesel 4D68 (68 hp / 50 kW) Front wheel drive.
CB8V 1994/08-2002/08 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
CB8W 1992/04-2002/08 2.0L Diesel 4D68T (88 hp / 65 kW) Front wheel drive.
CD5W 1992/04-2000/04 1.8L Petrol 4G93 MPI (120 hp / 88 kW) Four-wheel drive (4WD).
CD5W 1993/12-1997/09 1.8L Petrol 4G93T MPI (215 hp / 158 kW) Four-wheel drive (4WD).
COLT
Chassis No. Year Configuration
CC4A 1991/12-1997/01 1.6L Petrol 4G92 MPI (114 hp / 84 kW) Four-wheel drive (4WD).
LANCER STATION WAGON
Chassis No. Year Configuration
CD4W 1997/03-2000/01 1.6L Petrol 4G92 MPI (90 hp / 66 kW) Four-wheel drive (4WD).
CD4W 1992/06-1997/03 1.6L Petrol 4G92 MPI (90 hp / 66 kW) Four-wheel drive (4WD).
GALANT Σ
Chassis No. Year Configuration
E12A 1984/01-1988/01 1.8L Gas G37B LPG (83 hp / 61 kW) Front wheel drive.
GALANT
Chassis No. Year Configuration
E72A 1992/02-1996/09 1.8L Petrol 4G93 Carburetor (110 hp / 81 kW) Four-wheel drive (4WD).
ETERNA
Chassis No. Year Configuration
E72A 1992/02-1996/09 1.8L Petrol 4G93 Carburetor (240 hp / 177 kW) Four-wheel drive (4WD).

A distinctive feature of the friction linings of Masuma clutch discs is the production of holes for rivets even at the “baking” stage in special molds. Notches on the surface contribute to better self-cleaning of the disc from wear products and a smooth clutch setting at the beginning of the movement.

Ellipsonic overlays increase the wear resistance of the assembly and guarantee operability for 10 million cycles . Each Masuma clutch disc undergoes mandatory factory balancing and control tests: measurements of geometry, torque and hysteresis.

Clutch disc warranty 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
MBD021U
