MASUMA COIL SPRING
VENDOR CODE: CS-1005

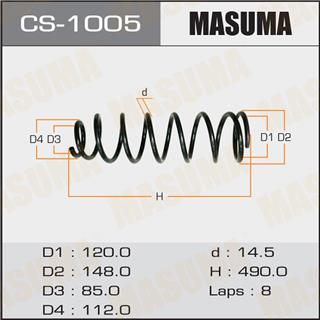

Remark: D1 : 120.0mm d : 14.5mm D2 : 148.0mm H : 490.0mm D3 : 85.0mm Laps : 8 D4 : 112.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
48131-6A470
48131-6A480
48131-6A490
LAND CRUISER
Chassis No. Year Configuration
FZJ80G 1995/01-1996/08 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80G 1996/08-1998/01 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80G 1992/08-1995/01 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80G 1993/07-1996/08 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80G 1995/01-1998/01 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80G 1992/08-1993/11 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80G 1993/07-1995/01 4.5L Petrol 1FZFE EFI (215 hp / 158 kW) Four-wheel drive (4WD).
FZJ80L 1992/08-1998/01 4.5L Petrol 1FZFE EFI (205 hp / 151 kW) Four-wheel drive (4WD).
FZJ80L 1995/01-1998/01 4.5L Petrol 1FZFE EFI (205 hp / 151 kW) Four-wheel drive (4WD).
FZJ80L 1994/08-1995/01 4.5L Petrol 1FZFE EFI (292 hp / 215 kW) Four-wheel drive (4WD).
FZJ80L 1992/08-1993/11 4.5L Petrol 1FZFE EFI (292 hp / 215 kW) Four-wheel drive (4WD).
FZJ80L 1993/11-1994/08 4.5L Petrol 1FZFE EFI (292 hp / 215 kW) Four-wheel drive (4WD).
FZJ80L 1995/01-1995/07 4.5L Petrol 1FZFE EFI (292 hp / 215 kW) Four-wheel drive (4WD).
FZJ80L 1995/07-1998/01 4.5L Petrol 1FZFE EFI (292 hp / 215 kW) Four-wheel drive (4WD).
HDJ80L 1996/05-1998/01 4.2L Diesel 1HDFT (170 hp / 125 kW) Four-wheel drive (4WD).
HDJ80L 1995/01-1998/01 4.2L Diesel 1HDFT (170 hp / 125 kW) Four-wheel drive (4WD).
HDJ80L 1993/11-1995/01 4.2L Diesel 1HDT (167 hp / 123 kW) Four-wheel drive (4WD).
HDJ80L 1992/08-1993/11 4.2L Diesel 1HDT (167 hp / 123 kW) Four-wheel drive (4WD).
HDJ81V 1996/08-1998/01 4.2L Diesel 1HDFT (170 hp / 125 kW) Four-wheel drive (4WD).
HDJ81V 1995/01-1998/01 4.2L Diesel 1HDFT (170 hp / 125 kW) Four-wheel drive (4WD).
HDJ81V 1995/01-1996/08 4.2L Diesel 1HDFT (170 hp / 125 kW) Four-wheel drive (4WD).
HDJ81V 1992/08-1995/01 4.2L Diesel 1HDT (165 hp / 121 kW) Four-wheel drive (4WD).
HDJ81V 1992/08-1993/07 4.2L Diesel 1HDT (165 hp / 121 kW) Four-wheel drive (4WD).
HDJ81V 1993/07-1995/01 4.2L Diesel 1HDT (165 hp / 121 kW) Four-wheel drive (4WD).
HZJ80L 1992/08-1998/01 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ80L 1992/08-1993/07 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ80L 1993/07-1998/01 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1990/01-1998/01 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1992/08-1996/08 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1995/01-1996/08 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1990/01-1996/08 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1992/08-1993/07 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1992/08-1998/01 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).
HZJ81V 1996/08-1998/01 4.2L Diesel 1HZ (135 hp / 99 kW) Four-wheel drive (4WD).

Masuma springs are made from high quality SUP9 structural steel using quenching, tempering, heating and winding techniques. The springs are also subjected to additional processing to harden the surface layer and increase fatigue strength.

All new Masuma spring models are calculated and modeled in the company's Japanese engineering office using the ANSYS finite element analysis software . Enhanced production control guarantees the stability of the alloy composition and high reliability of the springs.

12 month warranty on springs . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
CS-1005
