MASUMA COIL SPRING
VENDOR CODE: CS-8002

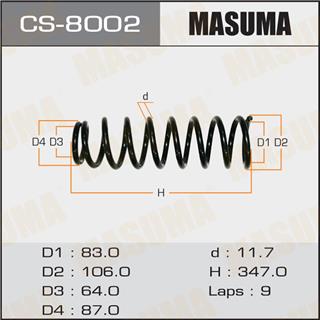

Remark: D1 : 83.0mm d: 11.7mm D2 : 106.0mm H : 347.0mm D3 : 64.0mm Laps : 9 D4 : 87.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
41311-65D01
GRAND VITARA
Chassis No. Year Configuration
SQ420W-2. 2000cc. 5D. J20A. 4WD. 1999/01-2005/12 2.0L Gasoline J20A MPI (128 hp / 94 kW) Four-wheel drive (4WD).
SQ420W-3. 2000cc. 5D. J20A. 4WD. 1999/01-2005/12 2.0L Gasoline J20A MPI (128 hp / 94 kW) Four-wheel drive (4WD).
SQ420W. 2000cc. 5D. J20A. 4WD. 1999/01-2005/12 2.0L Gasoline J20A MPI (128 hp / 94 kW) Four-wheel drive (4WD).
SQ420WD-2. 2000cc. 5D. RFM. turbo. Diz. 4WD. 1999/01-2005/12 2.0L Diesel RFM (109 hp / 80 kW) Four-wheel drive (4WD).
SQ420WD. 2000cc. 5D. RFM. turbo. Diz. 4WD. 1999/01-2005/12 2.0L Diesel RFM (87 hp / 64 kW) Four-wheel drive (4WD).
SQ625W-2. 2500cc. 5D. H25A. 4WD. 1999/01-2005/12 2.5L Gasoline H25A MPI (157 hp / 115 kW) Four-wheel drive (4WD).
SQ625W-3. 2500cc. 5D. H25A. 4WD. 1999/01-2005/12 2.5L Gasoline H25A MPI (157 hp / 115 kW) Four-wheel drive (4WD).
SQ625W. 2500cc. 5D. H25A. 4WD. 1999/01-2005/12 2.5L Gasoline H25A MPI (157 hp / 115 kW) Four-wheel drive (4WD).
ESCUDO
Chassis No. Year Configuration
TA02W 1997/11-2002/09 1.6L Gasoline G16A EPI (107 hp / 79 kW) Four-wheel drive (4WD).
TA02W 2000/04-2000/12 1.6L Gasoline G16A EPI (107 hp / 79 kW) Four-wheel drive (4WD).
TA02W 2000/04-2000/12 1.6L Gasoline G16A EPI (107 HP / 79 kW) Rear wheel drive.
TA02W 2000/04-2002/09 1.6L Gasoline G16A EPI (107 HP / 79 kW) Rear wheel drive.
TA52W 1997/11-2002/09 2.0L Gasoline J20A EPI (140 hp / 103 kW) Four-wheel drive (4WD).
TD02W 1997/11-2000/04 1.6L Gasoline G16A EPI (107 hp / 79 kW) Four-wheel drive (4WD).
TD32W 1998/02-1999/06 2.0L Diesel RF (92 hp / 67 kW) Four-wheel drive (4WD).
TD32W 1998/02-2000/04 2.0L Diesel RF (92 hp / 67 kW) Four-wheel drive (4WD).
TD52W 1997/11-2000/04 2.0L Gasoline J20A EPI (140 hp / 103 kW) Four-wheel drive (4WD).
TD62W 1998/02-2003/06 2.5L Gasoline H25A EPI (160 HP / 118 kW) Four wheel drive (4WD).
TL52W 1998/11-2005/02 2.0L Gasoline J20A EPI (140 hp / 103 kW) Four-wheel drive (4WD).

Masuma springs are made from high quality SUP9 structural steel using quenching, tempering, heating and winding techniques. The springs are also subjected to additional processing to harden the surface layer and increase fatigue strength.

All new Masuma spring models are calculated and modeled in the company's Japanese engineering office using the ANSYS finite element analysis software . Enhanced production control guarantees the stability of the alloy composition and high reliability of the springs.

12 month warranty on springs . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
CS-8002
