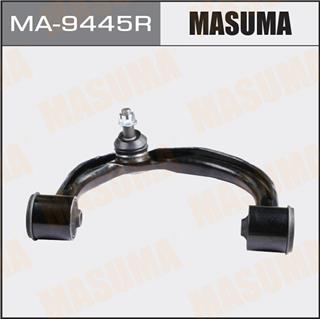

MASUMA CONTROL ARM
VENDOR CODE: MA-9445R
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
48610-0K040
48610-0K050
48610-0K100
FORTUNER
Chassis No. Year Configuration
GGN155L 2016/01-2020/05 4.0L Petrol 1GRFE EFI (282 hp / 207 kW) Four-wheel drive (4WD).
GGN165L 2016/01-2020/05 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Rear wheel drive.
GUN155L 2016/01-2020/05 2.4L Diesel 2GD-FTV CRI (150 hp / 110 kW) Four-wheel drive (4WD).
GUN156L 2020/06- 2.8L Diesel 1GD-FTV CRI (177 hp / 130 kW) Four-wheel drive (4WD).
GUN165L 2016/01-2020/05 2.4L Diesel 2GD-FTV CRI (150 HP / 110 kW) Rear wheel drive.
TGN156L 2016/01-2020/05 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN156L 2020/09- 2.7L Petrol 2TRFE EFI (166 hp / 122 kW) Four-wheel drive (4WD).
TGN166L 2016/01-2020/05 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Rear wheel drive.
HILUX
Chassis No. Year Configuration
GGN25L 2012/04-2021/12 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Four-wheel drive (4WD).
GUN125L 2015/06-2020/05 2.4L Diesel 2GD-FTV CRI (150 hp / 110 kW) Four-wheel drive (4WD).
GUN126L 2015/06-2020/05 2.8L Diesel 1GD-FTV CRI (177 hp / 130 kW) Four-wheel drive (4WD).
GUN135L 2015/06-2020/05 2.4L Diesel 2GD-FTV CRI (150 HP / 110 kW) Rear wheel drive.
KUN25L 2011/01-2015/01 2.5L Diesel 2KDFTV (101 hp / 74 kW) Four-wheel drive (4WD).
KUN25L 2011/11-2015/01 2.5L Diesel 2KDFTV (101 hp / 74 kW) Four-wheel drive (4WD).
KUN25L 2007/01-2011/07 2.5L Diesel 2KDFTV (102 hp / 75 kW) Four-wheel drive (4WD).
KUN25L 2005/02-2011/07 2.5L Diesel 2KDFTV (102 hp / 75 kW) Four-wheel drive (4WD).
KUN25L 2005/07-2006/08 2.5L Diesel 2KDFTV (102 hp / 75 kW) Four-wheel drive (4WD).
KUN25L 2005/07-2011/07 2.5L Diesel 2KDFTV (102 hp / 75 kW) Four-wheel drive (4WD).
KUN25L 2005/01-2011/07 2.5L Diesel 2KDFTV (102 hp / 75 kW) Four-wheel drive (4WD).
KUN25L 2006/08-2011/08 2.5L Diesel 2KDFTV (120 hp / 88 kW) Four-wheel drive (4WD).
KUN25L 2005/07-2012/04 2.5L Diesel 2KDFTV (120 hp / 88 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/04 2.5L Diesel 2KDFTV (120 hp / 88 kW) Four-wheel drive (4WD).
KUN25L 2005/02-2011/07 2.5L Diesel 2KDFTV (128 hp / 94 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/04 2.5L Diesel 2KDFTV (128 hp / 94 kW) Four-wheel drive (4WD).
KUN25L 2011/01-2015/01 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25L 2011/08-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25L 2007/08-2011/07 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25L 2007/01-2011/07 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25L 2011/08-2015/12 2.5L Diesel 2KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2005/01-2011/07 3.0L Diesel 1KDFTV (163 hp / 120 kW) Four-wheel drive (4WD).
KUN26L 2012/04-2015/01 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2004/11-2011/07 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2011/11-2015/01 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2006/01-2011/08 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2011/07-2015/12 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2011/01-2015/01 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2012/04-2015/04 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2007/08-2011/07 3.0L Diesel 1KDFTV (177 hp / 130 kW) Four-wheel drive (4WD).
KUN35L 2008/08-2011/07 2.5L Diesel 2KDFTV (102 hp / 75 kW) Rear wheel drive.
KUN35L 2005/01-2011/07 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2011/07-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2007/08-2011/07 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2008/12-2012/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2011/11-2015/01 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2005/07-2012/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2008/12-2011/07 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35L 2011/01-2015/01 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN36L 2011/01-2015/01 3.0L Diesel 1KDFTV (171 hp / 126 kW) Rear wheel drive.
KUN36L 2005/01-2011/07 3.0L Diesel 1KDFTV (177 hp / 130 kW) Rear wheel drive.
LAN25L 2005/07-2011/07 3.0L Diesel 5LE (91 hp / 67 kW) Four-wheel drive (4WD).
LAN25L 2011/08-2015/12 3.0L Diesel 5LE (91 hp / 67 kW) Four-wheel drive (4WD).
TGN26L 2005/07-2011/07 2.7L Petrol 2TRFE EFI (155 hp / 114 kW) Four wheel drive (4WD).
TGN26L 2005/07-2012/04 2.7L Petrol 2TRFE EFI (155 hp / 114 kW) Four wheel drive (4WD).
TGN26L 2011/08-2015/12 2.7L Petrol 2TRFE EFI (155 hp / 114 kW) Four wheel drive (4WD).
TGN26L 2008/01-2010/09 2.7L Petrol 2TRFE EFI (160 hp / 118 kW) Four wheel drive (4WD).
TGN26L 2011/07-2015/04 2.7L Petrol 2TRFE EFI (160 hp / 118 kW) Four wheel drive (4WD).
TGN26L 2005/07-2011/07 2.7L Petrol 2TRFE EFI (160 hp / 118 kW) Four wheel drive (4WD).
TGN26L 2011/07-2015/04 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2005/02-2011/07 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2012/04-2021/12 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2005/04-2011/07 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2005/07-2011/07 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2012/08-2015/04 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2005/08-2012/04 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
TGN26L 2011/01-2015/01 2.7L Petrol 2TRFE EFI (166 hp / 122 kW) Four-wheel drive (4WD).
TGN26L 2011/11-2015/01 2.7L Petrol 2TRFE EFI (166 hp / 122 kW) Four-wheel drive (4WD).
TGN36L 2011/01-2015/01 2.7L Petrol 2TRFE EFI (155 hp / 114 kW) Rear wheel drive.
TGN36L 2011/07-2015/04 2.7L Petrol 2TRFE EFI (160 hp / 118 kW) Four wheel drive (4WD).
TGN36L 2005/04-2011/07 2.7L Petrol 2TRFE EFI (160 HP / 118 kW) Rear wheel drive.
TGN36L 2012/04-2021/12 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Rear wheel drive.
TGN36L 2005/08-2012/04 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Rear wheel drive.
TGN36L 2011/01-2015/01 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Rear wheel drive.
TGN36L 2005/01-2008/08 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Rear wheel drive.
TGN36L 2005/07-2012/04 2.7L Petrol 2TRFE EFI (163 hp / 120 kW) Rear wheel drive.

Masuma arms and tie rods are important bearing elements of the suspension, so are produced only of steady materials. Masuma arms are produced using 65Mn tool carbon steel, or Cr40 and Cr20 alloy structural steel, the same as the original arms for the Japanese cars. Protective caps of the arms bushings are produced of Japanese chloroprene rubber — the most reasonable material, which ensures the durability of these parts.

Masuma is a world brand for spare parts, accessories and consumable items for cars.. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan).

MASUMA No.
MA-9445R
