Full Product Catalog

MASUMA ENGINE GASKET
VENDOR CODE: MD-01120-23

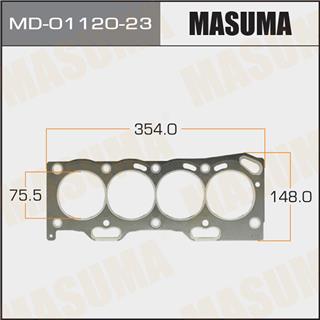

Remark: Length:354mm Width:148mm Bore Diameter:75.5mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
11115-11070
11115-11071
SPRINTER
Chassis No. Year Configuration
EE101 1991/06-1995/05 1.3L Petrol 4EFE EFI (115 hp / 85 kW) Front wheel drive.
EE102V 1994/01-2002/06 1.3L Petrol 4EFE EFI (115 hp / 85 kW) Front wheel drive.
EE103V 1994/01-2002/06 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
EE104G 1994/01-2002/06 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
EE111 1995/05-2000/08 1.3L Petrol 4EFE EFI (115 hp / 85 kW) Front wheel drive.
COROLLA
Chassis No. Year Configuration
EE101 1991/06-1995/05 1.3L Petrol 4EFE EFI (80 HP / 59 kW) Front wheel drive.
EE102V 1994/01-2002/06 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EE103V 1994/01-2002/06 1.5L Petrol 5EFE EFI (89 HP / 65 kW) Front wheel drive.
EE104G 1994/01-2002/06 1.5L Petrol 5EFE EFI (89 HP / 65 kW) Front wheel drive.
EE111 1995/05-2000/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
TERCEL
Chassis No. Year Configuration
EL41 1990/09-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1990/09-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFE EFI (105 hp / 77 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFHE EFI (115 hp / 85 kW) Front wheel drive.
EL45 1990/09-1994/09 1.5L Petrol 5EFE EFI (100 hp / 74 kW) Four-wheel drive (4WD).
EL51 1994/09-1999/07 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1994/09-1999/07 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL53 1994/09-1999/07 1.5L Petrol 5EFE EFI (94 hp / 69 kW) Front wheel drive.
EL55 1994/09-1999/07 1.5L Petrol 5EFE EFI (91 hp / 67 kW) Four-wheel drive (4WD).
COROLLA II
Chassis No. Year Configuration
EL41 1990/09-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFE EFI (94 hp / 69 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFHE EFI (115 hp / 85 kW) Front wheel drive.
EL45 1990/09-1994/09 1.5L Petrol 5EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EL51 1994/09-1999/07 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL53 1994/09-1999/07 1.5L Petrol 5EFE EFI (94 hp / 69 kW) Front wheel drive.
CORSA
Chassis No. Year Configuration
EL41 1990/09-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1990/09-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
EL43 1990/09-1994/09 1.5L Petrol 5EFHE EFI (115 hp / 85 kW) Front wheel drive.
EL45 1990/09-1994/09 1.5L Petrol 5EFE EFI (100 hp / 74 kW) Four-wheel drive (4WD).
EL51 1994/09-1999/07 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1994/09-1999/07 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL53 1994/09-1999/07 1.5L Petrol 5EFE EFI (94 hp / 69 kW) Front wheel drive.
EL55 1994/09-1999/07 1.5L Petrol 5EFE EFI (91 hp / 67 kW) Four-wheel drive (4WD).
CYNOS
Chassis No. Year Configuration
EL44 1991/01-1995/08 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
EL44 1991/01-1995/08 1.5L Petrol 5EFHE EFI (115 hp / 85 kW) Front wheel drive.
EL52 1995/08-1999/07 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL52C 1996/01-1999/03 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL54 1995/08-1999/07 1.5L Petrol 5EFHE EFI (110 HP / 81 kW) Front wheel drive.
STARLET
Chassis No. Year Configuration
EP82 1989/12-1996/01 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1989/12-1996/01 1.3L Petrol 4EFTE EFI (135 hp / 99 kW) Front wheel drive.
EP85 1990/08-1992/01 1.3L Petrol 4EF (82 hp / 60 kW) Four-wheel drive (4WD).
EP85 1992/01-1996/01 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP91 1996/01-1999/07 1.3L Petrol 4EFE EFI (82 hp / 60 kW) Front wheel drive.
EP91 1996/01-1999/07 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EP91 1996/01-1999/07 1.3L Petrol 4EFTE EFI (135 hp / 99 kW) Front wheel drive.
EP95 1996/01-1999/07 1.3L Petrol 4EFE EFI (82 hp / 60 kW) Four-wheel drive (4WD).
CALDINA
Chassis No. Year Configuration
ET196V 1992/11-2002/06 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
SERA
Chassis No. Year Configuration
EXY10 1990/03-1995/12 1.5L Petrol 5EFHE EFI (110 HP / 81 kW) Front wheel drive.
RAUM
Chassis No. Year Configuration
EXZ10 1997/05-2003/04 1.5L Petrol 5EFE EFI (94 hp / 69 kW) Front wheel drive.
EXZ15 1997/07-2003/04 1.5L Petrol 5EFE EFI (91 hp / 67 kW) Four-wheel drive (4WD).

In the production of Masuma cylinder head gaskets , intensive test cycles are carried out on test benches to ensure that the sealing requirements of modern engines are met.

Masuma cylinder head gaskets are elastomeric and are available in two versions:

  • Cylinder head gaskets with metal elastomers. Subdivided: into single-layer metal gaskets and multi-layer (2 layers or more).
  • Non-metallic elastomeric cylinder head gaskets with graphite coating (graphite elastomeric cylinder head gasket).

Gaskets are not prone to burn-out - this is real high-tech from Masuma , which just a few years ago, auto mechanics could not even dream of.

Warranty for cylinder head gaskets 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
MD-01120-23
