MASUMA ENGINE GASKET
VENDOR CODE: MD-04016S

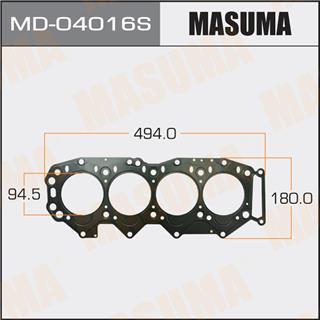

Remark: Length:494mm Width:180mm Bore Diameter:94.5mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
WL01-10-271
WL01-10-271A
WL01-10-271B
WL01-10-271C
WLY1-10-271
MPV
Chassis No. Year Configuration
LVLR 1995/01-1998/06 2.5L Diesel WL-T (130 hp / 96 kW) Four-wheel drive (4WD).
LVLW 1995/01-1998/06 2.5L Diesel WL-T (130 hp / 96 kW) Rear wheel drive.
BONGO BRAWNY
Chassis No. Year Configuration
SD59M 1999/05-1999/06 2.5L Diesel WL (88 hp / 65 kW) Four-wheel drive (4WD).
SD59M 1997/04-1999/05 2.5L Diesel WL (88 hp / 65 kW) Four-wheel drive (4WD).
SD59T 1997/04-1999/05 2.5L Diesel WL (88 hp / 65 kW) Rear wheel drive.
SD59T 1999/05-1999/06 2.5L Diesel WL (88 hp / 65 kW) Rear wheel drive.
SD5AM 1997/04-1999/05 2.5L Diesel WL (88 hp / 65 kW) Four-wheel drive (4WD).
SD5AM 1999/05-1999/06 2.5L Diesel WL (88 hp / 65 kW) Four-wheel drive (4WD).
SD5AT 1997/04-1999/05 2.5L Diesel WL (88 hp / 65 kW) Rear wheel drive.
SD5AT 1999/05-1999/06 2.5L Diesel WL (88 hp / 65 kW) Rear wheel drive.
SK24L 1999/06-2000/01 2.2L Diesel R2 (70 hp / 51 kW) Four-wheel drive (4WD).
SK24T 1999/06-2000/01 2.2L Diesel R2 (70 hp / 51 kW) Rear wheel drive.
SK26L 1999/06-2000/01 2.2L Diesel R2 (70 hp / 51 kW) Four-wheel drive (4WD).
SK26T 1999/06-2000/01 2.2L Diesel R2 (70 hp / 51 kW) Rear wheel drive.
SK54L 1999/06-2000/01 2.5L Diesel WL (114 hp / 84 kW) Four-wheel drive (4WD).
SK54T 1999/06-2000/01 2.5L Diesel WL (114 hp / 84 kW) Rear wheel drive.
SK54V 1999/06-2004/11 2.5L Diesel WL (114 hp / 84 kW) Rear wheel drive.
SK56L 1999/06-2000/01 2.5L Diesel WL (114 hp / 84 kW) Four-wheel drive (4WD).
SK56M 1999/06-2004/11 2.5L Diesel WL (114 hp / 84 kW) Four-wheel drive (4WD).
SK56T 1999/06-2000/01 2.5L Diesel WL (114 hp / 84 kW) Rear wheel drive.
SK56V 1999/06-2004/11 2.5L Diesel WL (114 hp / 84 kW) Rear wheel drive.
SK5HM 1999/06-2004/11 2.5L Diesel WL (114 hp / 84 kW) Four-wheel drive (4WD).
SK5HV 1999/06-2004/11 2.5L Diesel WL (114 hp / 84 kW) Rear wheel drive.
SR59V 1999/05-1999/06 2.5L Diesel WL (110 hp / 81 kW) Rear wheel drive.
SR59V 1997/04-1999/05 2.5L Diesel WL (110 hp / 81 kW) Rear wheel drive.
SR5AM 1999/05-1999/06 2.5L Diesel WL (110 hp / 81 kW) Four-wheel drive (4WD).
SR5AM 1997/04-1999/05 2.5L Diesel WL (110 hp / 81 kW) Four-wheel drive (4WD).
SR5AV 1999/05-1999/06 2.5L Diesel WL (110 hp / 81 kW) Rear wheel drive.
SR5AV 1997/04-1999/05 2.5L Diesel WL (110 hp / 81 kW) Rear wheel drive.
BONGO FRIENDEE
Chassis No. Year Configuration
SGL3 1999/05-2005/12 2.5L Diesel WL-T (110 hp / 81 kW) Rear wheel drive.
SGL3 1995/05-1999/05 2.5L Diesel WL-T (110 hp / 81 kW) Rear wheel drive.
SGL5 1999/05-2005/12 2.5L Diesel WL-T (110 hp / 81 kW) Four-wheel drive (4WD).
SGL5 1995/05-1999/05 2.5L Diesel WL-T (110 hp / 81 kW) Four-wheel drive (4WD).
SGLR 1995/05-1999/05 2.5L Diesel WL-T (130 hp / 96 kW) Four-wheel drive (4WD).
SGLR 1999/05-2005/12 2.5L Diesel WL-T (130 hp / 96 kW) Four-wheel drive (4WD).
SGLW 1995/05-1999/05 2.5L Diesel WL-T (130 hp / 96 kW) Rear wheel drive.
SGLW 1999/05-2005/12 2.5L Diesel WL-T (130 hp / 96 kW) Rear wheel drive.
FORD FREDA
Chassis No. Year Configuration
SGL3F 1995/06-1999/05 2.5L Diesel WL-T (110 hp / 81 kW) Rear wheel drive.
SGL3F 1999/05-2000/06 2.5L Diesel WL-T (110 hp / 81 kW) Rear wheel drive.
SGL5F 1999/05-2001/04 2.5L Diesel WL-T (110 hp / 81 kW) Four-wheel drive (4WD).
SGL5F 1995/06-1999/05 2.5L Diesel WL-T (110 hp / 81 kW) Four-wheel drive (4WD).
SGLRF 1999/05-2001/07 2.5L Diesel WL-T (130 hp / 96 kW) Four-wheel drive (4WD).
SGLRF 1995/06-1999/05 2.5L Diesel WL-T (130 hp / 96 kW) Four-wheel drive (4WD).
SGLWF 1999/05-2000/09 2.5L Diesel WL-T (130 hp / 96 kW) Rear wheel drive.
SGLWF 1995/06-1999/05 2.5L Diesel WL-T (130 hp / 96 kW) Rear wheel drive.
TITAN DASH
Chassis No. Year Configuration
SY54L 2000/09-2004/08 2.5L Diesel WL (83 hp / 61 kW) Four-wheel drive (4WD).
SY54T 2000/09-2004/08 2.5L Diesel WL (83 hp / 61 kW) Rear wheel drive.
SY56L 2000/09-2004/08 2.5L Diesel WL (83 hp / 61 kW) Four-wheel drive (4WD).
SY56T 2000/09-2004/08 2.5L Diesel WL (83 hp / 61 kW) Rear wheel drive.

In the production of Masuma cylinder head gaskets , intensive test cycles are carried out on test benches to ensure that the sealing requirements of modern engines are met.

Masuma cylinder head gaskets are elastomeric and are available in two versions:

  • Cylinder head gaskets with metal elastomers. Subdivided: into single-layer metal gaskets and multi-layer (2 layers or more).
  • Non-metallic elastomeric cylinder head gaskets with graphite coating (graphite elastomeric cylinder head gasket).

Gaskets are not prone to burn-out - this is real high-tech from Masuma , which just a few years ago, auto mechanics could not even dream of.

Warranty for cylinder head gaskets 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
MD-04016S
