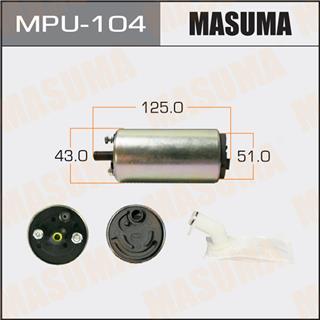

MASUMA FUEL PUMP Product MPU-104 | China Auto Electrical Systems Suppliers, Manufacturers, Factory - Wholesale Auto Electrical Systems for Sale

The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.

ENQUIRY

ABOUT THE PRODUCT

APPLICABILITY

OEM

BRAND NUMBER

15100-61A00

15100-61A01

15100-61B00

15100-61B01

15100-61B02

15100-61B03

15100-61BT0

17040-SS0-930

17708-SF1-931

17708-SF1-933

17708-SF1-A31

17708-SG0-A30

23220-16070

23220-16080

23220-16084

23220-16190

23220-16270

23220-42070

23220-43070

23220-70170

23220-79015

23221-42130

23221-50020

23221-50080

23221-74010

8-97019-186-1

8-97019-187-0

8-97019-188-1

8-97065-370-2

8-97069-336-1

B630-13-350B

B630-13-350C

BP47-13-35ZC

BP51-13-350

BP51-13-350A

E5F7-13-350B

F201-13-350G

F201-13-350H

F2GB-13-350A

F2GB-13-350B

F2GB-13-ZE0

FE3N-13-350C

FEH2-13-350

G601-13-35ZC

G602-13-350A

G602-13-350B

G607-13-350

G607-13-ZE0

G608-13-350A

G608-13-350B

G616-13-350

G622-13-35Z

JE15-13-35ZC

JE16-13-350

JE17-13-350

JE17-13-350A

JE22-13-35Z

JE45-13-35ZA

JE47-13-35Z

JF01-13-350B

JF01-13-350C

MB554100

MB597728

MB598285

MB678398

MB831742

MB845502

N326-13-350A

HONDA

PRELUDE

Chassis No.	Year	Configuration
BA8	1991/09-1996/11	E-BA8 2.2L Gasoline F22B PGM-FI (160 HP / 118 kW) Front wheel drive.
BA9	1991/09-1996/11	E-BA9 2.2L Gasoline F22B PGM-FI (160 HP / 118 kW) Front wheel drive.
BB1	1991/09-1996/11	E-BB1 2.2L Gasoline H22A PGM-FI (200 HP / 147 kW) Front wheel drive.
BB4	1991/09-1996/11	E-BB4 2.2L Gasoline H22A PGM-FI (200 HP / 147 kW) Front wheel drive.

LEXUS

LS400

Chassis No.	Year	Configuration
UCF10L	1990/08-1994/01	4.0L Petrol 1UZFE EFI (245 hp / 180 kW) Rear wheel drive.
UCF10L	1989/12-1994/01	4.0L Petrol 1UZFE EFI (245 hp / 180 kW) Rear wheel drive.
UCF10L	1989/05-1994/01	4.0L Petrol 1UZFE EFI (245 hp / 180 kW) Rear wheel drive.
UCF20L	1994/01-2000/08	4.0L Petrol 1UZFE EFI (264 hp / 194 kW) Rear wheel drive.
UCF20L	1994/01-2000/08	4.0L Petrol 1UZFE EFI (294 hp / 216 kW) Rear wheel drive.

MAZDA

FAMILIA

Chassis No.	Year	Configuration
BG8P	1990/06-1990/01	1.8L Petrol BP EGI (140 hp / 103 kW) Front wheel drive.
BG8P	1990/06-1990/06	1.8L Petrol BP EGI (140 hp / 103 kW) Front wheel drive.
BHA6R	1994/09-1996/08	1.6L Petrol B6-DE EGI (115 hp / 85 kW) Four-wheel drive (4WD).

MPV

Chassis No.	Year	Configuration
LV5W	1994/12-1995/02	2.5L Gasoline G5-E EGI (120 HP / 88 kW) Rear wheel drive.
LVEW	1990/06-1999/05	3.0L Petrol JE-E EGI (148 hp / 109 kW) Rear wheel drive.
LVEW	1989/11-1990/06	3.0L Petrol JE-E EGI (148 hp / 109 kW) Rear wheel drive.

SUZUKI

VITARA

Chassis No.	Year	Configuration
SE416-2. 1600cc. 3D. G16A. 4WD. conv.	1988/01-1998/12	1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD).
SE416-2. 1600cc. 3D. G16A. 4WD. Van	1988/01-1998/12	1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD).
SE416-3. 1600cc. 3D. G16A. 4WD. conv.	1988/01-1998/12	1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD).
SE416-3. 1600cc. 3D. G16A. 4WD. Van	1988/01-1998/12	1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD).
SE416. 1600cc. 3D. G16A. 4WD. conv.	1988/01-1998/12	1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD).
SE416. 1600cc. 3D. G16A. 4WD. Van	1988/01-1998/12	1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD).

ESCUDO

Chassis No.	Year	Configuration
TA01R	1988/05-1990/08	1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD).
TA01V	1988/05-1990/08	1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD).
TA01W	1988/05-1990/08	1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD).

TOYOTA

STARLET

Chassis No.	Year	Configuration
EP82	1989/12-1990/08	1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82	1989/12-1990/08	1.3L Petrol 4EFTE EFI (135 hp / 99 kW) Front wheel drive.

SUPRA

Chassis No.	Year	Configuration
GA70	1986/02-1988/08	2.0L Petrol 1GGEU EFI (150 HP / 110 kW) Rear wheel drive.
GA70	1986/02-1988/08	2.0L Petrol 1GGTEU EFI (210 HP / 154 kW) Rear wheel drive.
GA70	1988/08-1990/08	2.0L Petrol 1GGTEU EFI (210 HP / 154 kW) Rear wheel drive.
GA70H	1989/08-1993/05	2.0L Petrol 1GGTEU EFI (210 HP / 154 kW) Rear wheel drive.

CROWN

Chassis No.	Year	Configuration
GS130	1988/09-1995/12	2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS131H	1991/01-1995/12	2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS141	1993/08-1995/08	2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS151	1995/12-2001/08	2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS151H	1995/08-1999/09	2.0L Petrol 1GFE EFI (140 HP / 103 kW) Rear wheel drive.
GS151H	1995/12-2001/08	2.0L Petrol 1GFE EFI (160 HP / 118 kW) Rear wheel drive.
JZS131	1990/08-1995/12	2.5L Petrol 1JZGE EFI (180 HP / 132 kW) Rear wheel drive.
JZS131	1990/08-1991/01	2.5L Petrol 1JZGE EFI (180 HP / 132 kW) Rear wheel drive.
JZS141	1991/01-1995/08	2.5L Petrol 1JZGE EFI (180 HP / 132 kW) Rear wheel drive.
JZS151	1995/12-2001/08	2.5L Petrol 1JZGE EFI (200 HP / 147 kW) Rear wheel drive.
JZS151	1995/08-1999/08	2.5L Petrol 1JZGE EFI (200 HP / 147 kW) Rear wheel drive.
JZS151	1997/11-1999/08	2.5L Petrol 1JZGE EFI (200 HP / 147 kW) Rear wheel drive.
JZS153	1997/11-1998/08	2.5L Petrol 1JZGE EFI (180 hp / 132 kW) Four wheel drive (4WD).
JZS153	1995/12-1999/09	2.5L Petrol 1JZGE EFI (180 hp / 132 kW) Four wheel drive (4WD).
JZS153	1995/12-2001/08	2.5L Petrol 1JZGE EFI (200 hp / 147 kW) Four-wheel drive (4WD).
JZS155	1995/12-1999/09	3.0L Petrol 2JZGE EFI (220 HP / 162 kW) Rear wheel drive.
JZS155	1995/08-1999/09	3.0L Petrol 2JZGE EFI (220 HP / 162 kW) Rear wheel drive.
JZS157	1998/08-1999/09	3.0L Petrol 2JZGE EFI (220 hp / 162 kW) Four wheel drive (4WD).

MARK II

Chassis No.	Year	Configuration
GX81	1988/08-1990/08	2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81	1988/08-1990/08	2.0L Petrol 1GGE EFI (150 HP / 110 kW) Rear wheel drive.
MX83	1989/08-1993/02	3.0L Petrol 7MGE EFI (200 HP / 147 kW) Rear wheel drive.

CROWN MAJESTA

Chassis No.	Year	Configuration
JZS155	1995/09-1999/09	3.0L Petrol 2JZGE EFI (220 HP / 162 kW) Rear wheel drive.

HIACE

Chassis No.	Year	Configuration
RZH101G	1989/08-2002/08	2.4L Petrol 2RZE EFI (120 HP / 88 kW) Rear wheel drive.
RZH111G	1995/08-2002/08	2.4L Petrol 2RZE EFI (120 HP / 88 kW) Rear wheel drive.
RZH112K	2000/12-2003/08	2.0L Petrol 1RZE EFI (110 HP / 81 kW) Rear wheel drive.
RZH124B	1993/08-2003/08	2.0L Petrol 1RZE EFI (110 HP / 81 kW) Rear wheel drive.
RZH125B	1998/08-2003/08	2.4L Petrol 2RZE EFI (120 HP / 88 kW) Rear wheel drive.
RZH133V	1995/08-1999/07	2.4L Petrol 2RZE EFI (120 HP / 88 kW) Rear wheel drive.
RZH182K	2000/12-2003/08	2.0L Petrol 1RZE EFI (110 HP / 81 kW) Rear wheel drive.
RZH183K	2000/12-2003/08	2.4L Petrol 2RZE EFI (120 HP / 88 kW) Rear wheel drive.
TRH122K	2003/08-2005/01	2.0L Petrol 1TRFE EFI (133 hp / 98 kW) Rear wheel drive.
TRH124B	2003/08-2005/01	2.0L Petrol 1TRFE EFI (133 hp / 98 kW) Rear wheel drive.

MR2

Chassis No.	Year	Configuration
SW20	1989/12-1999/08	2.0L Petrol 3SGTE EFI (245 hp / 180 kW) Rear wheel drive.

ESTIMA

Chassis No.	Year	Configuration
TCR10W	1993/02-1994/01	2.4L Petrol 2TZFE EFI (135 hp / 99 kW) Rear wheel drive.
TCR11W	1990/05-1994/01	2.4L Petrol 2TZFE EFI (135 hp / 99 kW) Rear wheel drive.
TCR20W	1993/02-1994/01	2.4L Petrol 2TZFE EFI (135 hp / 99 kW) Four wheel drive (4WD).
TCR21W	1990/05-1994/01	2.4L Petrol 2TZFE EFI (135 hp / 99 kW) Four wheel drive (4WD).

CELSIOR

Chassis No.	Year	Configuration
UCF10	1989/11-1994/01	4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Rear wheel drive.
UCF11	1989/11-1994/01	4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Rear wheel drive.

HILUX SURF

Chassis No.	Year	Configuration
VZN130G	1990/08-1991/08	3.0L Petrol 3VZE EFI (150 hp / 110 kW) Four-wheel drive (4WD).

Masuma fuel pumps are produced on the ACDelco assembly lines, which is an OEM-supplier of fuel pumps for General Motors. They are notable for the high quality of assembly, stability of work and durability. The strict quality assurance implemented during the production, ensures the minimum of defective parts.

Design Features

The Masuma fuel pumps are provided with a high-quality check and bypass valve. The check valve maintains the pressure level in the fuel line after the pump is off and doesn't let the fuel flow down to the tank when the car doesn't move — it facilitates the engine start-up. The bypass (safety) valve protects the pump from overloading in case of the pressure regulator failure; this is also necessary for the cars which are not equipped with a fuel return line.

The technological electronics of the Masuma gasoline pumps ensures high performance and the fuel pressure while has the lowest inner resistance and current consumption.

Fuel strainer

Most Masuma gasoline pumps are supplied with a fuel strainer grid, which you don't need to buy separately. The strainer grid replacement is mandatory during installation of a new gasoline pump.

Masuma is a world brand for spare parts, accessories and consumable items for cars. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan).
