MASUMA IGNITION COILS
VENDOR CODE: MIC-K301

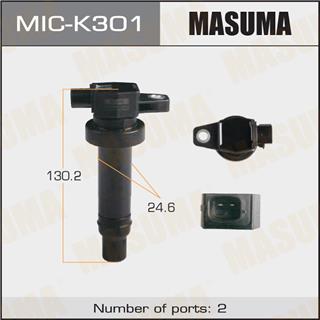

Remark: Height:130.2mm Diameter:24.6mm Number of ports:2
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
27301-2B000
I30 I
Chassis No. Year Configuration
1.4L GAMMA. HATCH 5D 2007/05-2012/03 1.4L Gasoline GAMMA MPI (108 hp / 79 kW) Rear wheel drive.
1.6L GAMMA. HATCH 5D 2007/05-2012/03 1.6L Gasoline GAMMA MPI (124 hp / 91 kW) Rear wheel drive.
I30CW
Chassis No. Year Configuration
1.4L GAMMA. WAGON 2007/05-2012/03 1.4L Gasoline GAMMA MPI (108 hp / 79 kW) Rear wheel drive.
1.6L GAMMA. WAGON 2007/05-2012/03 1.6L Gasoline GAMMA MPI (124 hp / 91 kW) Rear wheel drive.
ELANTRA IV
Chassis No. Year Configuration
1.6L GAMMA. SEDAN 2006/08-2006/12 1.6L Gasoline GAMMA MPI (122 hp / 91 kW) Rear wheel drive.
1.6L GAMMA. SEDAN 2006/09-2009/02 1.6L Gasoline GAMMA MPI (122 hp / 91 kW) Rear wheel drive.
CEED I
Chassis No. Year Configuration
1.4L GAMMA. HATCH 3D 2007/01-2009/04 1.4L Gasoline GAMMA MPI (109 hp / 80 kW) Front wheel drive.
1.4L GAMMA. HATCH 5D 2006/01-2009/04 1.4L Gasoline GAMMA MPI (105 hp / 77 kW) Front wheel drive.
1.4L GAMMA. WAGON 2007/06-2009/04 1.4L Gasoline GAMMA MPI (105 hp / 77 kW) Front wheel drive.
1.6L GAMMA MPI. HATCH 3D 2007/01-2009/04 1.6L Gasoline GAMMA MPI (115 hp / 85 kW) Front wheel drive.
1.6L GAMMA MPI. HATCH 5D 2006/01-2009/04 1.6L Gasoline GAMMA MPI (115 hp / 85 kW) Front wheel drive.
1.6L GAMMA MPI. WAGON 2007/06-2009/04 1.6L Gasoline GAMMA MPI (115 hp / 85 kW) Front wheel drive.
CERATO I
Chassis No. Year Configuration
1.6L GAMMA. SEDAN 2006/08-2008/01 1.6L Gasoline GAMMA MPI (105 hp / 77 kW) Front wheel drive.

Masuma ignition coils are used for converting the low voltage current from a battery or a generator into the high voltage current. The main goal of the ignition coil is generating a high-voltage pulse for the spark plug.

Masuma is a world brand for spare parts, accessories and consumable items for cars. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan).

MASUMA No.
MIC-K301
