MASUMA RACK END
VENDOR CODE: MR-4950

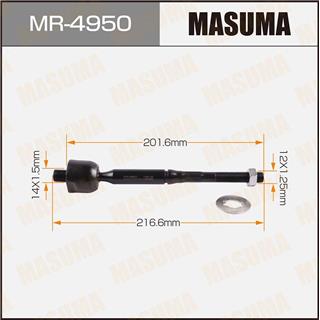

Remark: Length1: 201.6mm Ball Seat Thread: 14X1.5mm Ball pin thread: 12X1.25mm Length2: 216.6mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
0222-C11
41210
41213
48001-9U100
48010-AX000
485213U025
48521-3U202
C2088LR
CR0476
CRN-41
D8521-3U025
J4841045
MQ702484
MR-4950
SR-4950
MARCH
Chassis No. Year Configuration
AK12 2002/02-2005/08 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
AK12 2002/02-2010/07 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
BK12 2002/02-2005/08 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
BNK12 2002/09-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Four-wheel drive (4WD).
K12 2002/02-2003/07 1.0L Petrol CR10DE EGI (68 HP / 50 kW) Front wheel drive.
YK12 2005/08-2010/07 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
CUBE CUBIC
Chassis No. Year Configuration
BGZ11 2003/09-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
YGNZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
YGZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
CUBE
Chassis No. Year Configuration
BNZ11 2002/01-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Four-wheel drive (4WD).
BZ11 2002/01-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
NZ12 2008/11-2014/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
YZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
Z12 2008/11-2020/03 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
Z12. 1500cc. K9K. turbo. Diz. 2009/01- 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
Z12. 1600cc. HR16DE 2009/08- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
TIIDA
Chassis No. Year Configuration
C11 2004/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
C11X. 1500cc. 5D. K9K. turbo. Diz. 2007/03-2010/03 1.5L Diesel K9K (106 hp / 78 kW) Front wheel drive.
C11X. 1600cc. 5D. HR16DE 2007/03-2014/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
C11X. 1800cc. 5D. MR18DE 2007/03-2014/07 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
JC11 2005/01-2010/08 1.8L Petrol MR18DE EGI (124 hp / 91 kW) Front wheel drive.
NC11 2004/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
SC11X. 1500cc. K9K. turbo. Diz. 2007/02-2010/03 1.5L Diesel K9K (106 hp / 78 kW) Front wheel drive.
SC11X. 1600cc. HR16DE 2007/02- 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
SC11X. 1800cc. MR18DE 2007/02- 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
NOTE
Chassis No. Year Configuration
E11 2005/01-2012/09 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
E11E. 1400cc. CR14DE 2006/01-2013/08 1.4L Petrol CR14DE EGI (88 hp / 65 kW) Front wheel drive.
E11E. 1500cc. K9K. turbo. Diz. 2006/01-2013/08 1.5L Diesel K9K (103 hp / 76 kW) Front wheel drive.
E11E. 1600cc. HR16DE 2006/01-2013/08 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
NE11 2005/01-2012/09 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
ZE11 2008/01-2012/09 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
BLUEBIRD SYLPHY
Chassis No. Year Configuration
G11 2005/12-2012/12 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
KG11 2005/12-2012/12 2.0L Gasoline MR20DE EGI (147 HP / 108 kW) Front wheel drive.
NG11 2005/12-2012/12 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
WINGROAD
Chassis No. Year Configuration
JY12 2005/11-2014/09 1.8L Petrol MR18DE EGI (128 hp / 94 kW) Front wheel drive.
NY12 2005/11-2014/09 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
Y12 2005/11-2018/03 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
NV200
Chassis No. Year Configuration
M20 2009/05- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
VM20 2009/05- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
TIIDA LATIO
Chassis No. Year Configuration
SC11 2008/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
SC11 2004/01-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
SJC11 2005/01-2010/08 1.8L Petrol MR18DE EGI (124 hp / 91 kW) Front wheel drive.
SNC11 2004/01-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
AD
Chassis No. Year Configuration
VAY12 2006/12-2013/05 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
VY12 2006/12-2016/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
VZNY12 2008/12-2016/12 1.6L Petrol HR16DE EGI (120 hp / 88 kW) Four-wheel drive (4WD).
AD EXPERT
Chassis No. Year Configuration
VJY12 2006/12-2016/12 1.8L Petrol MR18DE EGI (128 hp / 94 kW) Front wheel drive.
VY12 2006/12-2016/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
VZNY12 2008/12-2016/12 1.6L Petrol HR16DE EGI (120 hp / 88 kW) Four-wheel drive (4WD).

Modern production technologies and high-quality materials used in the manufacture of Masuma tie rods guarantee high durability of the parts.

Guarantee for steering drafts of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.
