MASUMA RACK END
VENDOR CODE: MR-7560

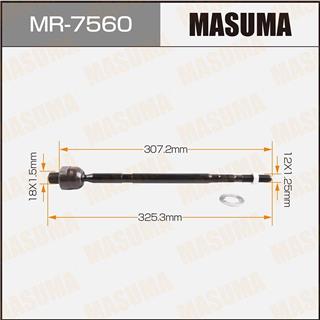

Remark: Length1: 307.2mm Ball Seat Thread: 18X1.5mm Ball pin thread: 12X1.25mm Length2: 325.3mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0722-RS
4709161
48830-60J00
4883063J00
77018
93194002
C2262LR
CR0547
CRS-14
SR-7560
SPLASH
Chassis No. Year Configuration
A5B310. 1000cc. 5D. K10B 2008/03-2015/03 1.0L Gasoline K10B MPI (65 HP / 48 kW) Front wheel drive.
A5B310. 1000cc. 5D. K10B. Gas 2008/03-2015/03 1.0L Gas K10B LPG (65 hp / 48 kW) Front wheel drive.
A5B412. 1200cc. 5D. K12B 2008/03-2015/03 1.2L Gasoline K12B MPI (86 hp / 63 kW) Front wheel drive.
A5B412. 1200cc. 5D. K12B. Gas 2008/03-2015/03 1.2L Gas K12B LPG (86 hp / 63 kW) Front wheel drive.
A5B413D. 1300cc. 5D. D13A. turbo. Diz. 2008/03-2015/03 1.3L Diesel D13A (75 hp / 55 kW) Front wheel drive.
A5B413D. 1300cc. 5D. Z13DTJ. turbo. Diz. 2008/03-2015/03 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
XB32S 2008/06-2014/08 1.2L Petrol K12B EPI (91 hp / 67 kW) Front wheel drive.
SWIFT
Chassis No. Year Configuration
RS413-2. 1300cc. 3D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Front wheel drive.
RS413-2. 1300cc. 5D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Front wheel drive.
RS413-2. 1300cc. 5D. M13A. 4WD. 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Four-wheel drive (4WD).
RS413-3. 1300cc. 3D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (93 hp / 68 kW) Front wheel drive.
RS413-3. 1300cc. 5D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Front wheel drive.
RS413-3. 1300cc. 5D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (93 hp / 68 kW) Front wheel drive.
RS413-3. 1300cc. 5D. M13A. 4WD. 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Four-wheel drive (4WD).
RS413. 1300cc. 3D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Front wheel drive.
RS413. 1300cc. 5D. M13A 2004/09-2010/12 1.3L Gasoline M13A MPI (93 hp / 68 kW) Front wheel drive.
RS413. 1300cc. 5D. M13A. 4WD. 2004/09-2010/12 1.3L Gasoline M13A MPI (92 hp / 68 kW) Four-wheel drive (4WD).
RS413D-2. 1300cc. 3D. Z13DTJ. turbo. Diz. 2004/09-2010/12 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
RS413D-2. 1300cc. 5D. Z13DTJ. turbo. Diz. 2004/09-2010/12 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
RS413D-3. 1300cc. 3D. D13A. turbo. Diz. 2004/09-2010/12 1.3L Diesel D13A (75 hp / 55 kW) Front wheel drive.
RS413D-3. 1300cc. 3D. Z13DTJ. turbo. Diz. 2004/09-2010/12 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
RS413D-3. 1300cc. 5D. D13A. turbo. Diz. 2004/09-2010/12 1.3L Diesel D13A (75 hp / 55 kW) Front wheel drive.
RS413D-3. 1300cc. 5D. Z13DTJ. turbo. Diz. 2004/09-2010/12 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
RS413D. 1300cc. 3D. Z13DTJ. turbo. Diz. 2004/09-2010/12 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
RS413D. 1300cc. 5D. Z13DTJ. turbo. Diz. 2004/09-2010/12 1.3L Diesel Z13DTJ (75 hp / 55 kW) Front wheel drive.
RS415-2. 1500cc. 3D. M15A 2004/09-2010/12 1.5L Gasoline M15A MPI (102 hp / 75 kW) Front wheel drive.
RS415-2. 1500cc. 5D. M15A 2004/09-2010/12 1.5L Gasoline M15A MPI (102 hp / 75 kW) Front wheel drive.
RS415-3. 1500cc. 3D. M15A 2004/09-2010/12 1.5L Gasoline M15A MPI (102 hp / 75 kW) Front wheel drive.
RS415-3. 1500cc. 5D. M15A 2004/09-2010/12 1.5L Gasoline M15A MPI (102 hp / 75 kW) Front wheel drive.
RS415. 1500cc. 3D. M15A 2004/09-2010/12 1.5L Gasoline M15A MPI (102 hp / 75 kW) Front wheel drive.
RS415. 1500cc. 5D. M15A 2004/09-2010/12 1.5L Gasoline M15A MPI (102 hp / 75 kW) Front wheel drive.
RS416-2. 1600cc. 3D. M16A 2004/09-2010/12 1.6L Gasoline M16A MPI (125 hp / 92 kW) Front wheel drive.
RS416-2. 1600cc. 5D. M16A 2004/09-2010/12 1.6L Gasoline M16A MPI (125 hp / 92 kW) Front wheel drive.
RS416-3. 1600cc. 3D. M16A 2004/09-2010/12 1.6L Gasoline M16A MPI (125 hp / 92 kW) Front wheel drive.
RS416-4. 1600cc. 5D. M16A 2004/09-2010/12 1.6L Gasoline M16A MPI (125 hp / 92 kW) Front wheel drive.
ZC11S 2004/09-2010/09 1.3L Gasoline M13A EPI (91 hp / 67 kW) Front wheel drive.
ZC21S 2004/09-2009/05 1.5L Gasoline M15A EPI (110 HP / 81 kW) Front wheel drive.
ZC31S 2005/08-2010/09 1.6L Gasoline M16A EPI (125 hp / 92 kW) Front wheel drive.
ZC71S 2007/04-2010/09 1.2L Gasoline K12B EPI (90 HP / 66 kW) Front wheel drive.
ZD11S 2004/09-2010/09 1.3L Petrol M13A EPI (91 hp / 67 kW) Four-wheel drive (4WD).
ZD21S 2004/09-2009/05 1.5L Gasoline M15A EPI (110 HP / 81 kW) Four-wheel drive (4WD).

Modern production technologies and high-quality materials used in the manufacture of Masuma tie rods guarantee high durability of the parts.

Guarantee for steering drafts of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
MR-7560 JAR7569
