MASUMA RACK END
VENDOR CODE: MR-7640R

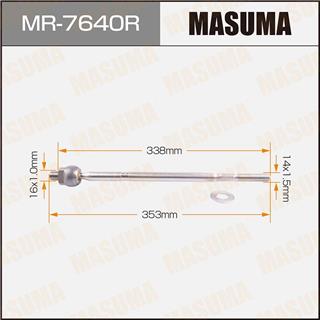

Remark: Length1: 338mm Ball Seat Thread: 16x1.0mm Ball pin thread: 14x1.5mm Length2: 353mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0722-SX4UN
240525
48830-79J00
48830-79J10
C2263L
CR0548
CR0549
CRS-15
CRS-16
ER23640L
ER23640R
SR7640L
SR-7640R
SX4
Chassis No. Year Configuration
RW415-2. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (111 hp / 81 kW) Front wheel drive.
RW415-2. 1500cc. 5D. M15A. Rus. 2006/01-2016/03 1.5L Gasoline M15A MPI (99 hp / 73 kW) Front wheel drive.
RW415-3. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Front wheel drive.
RW415-3. 1500cc. 5D. M15A. Rus. 2006/01-2016/03 1.5L Gasoline M15A MPI (99 hp / 73 kW) Front wheel drive.
RW415. 1500cc. 5D. M15A 2006/01-2014/12 1.5L Gasoline M15A MPI (110 hp / 81 kW) Front wheel drive.
RW415. 1500cc. 5D. M15A. Rus. 2006/01-2016/03 1.5L Gasoline M15A MPI (99 hp / 73 kW) Front wheel drive.
RW416-2. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-2. 1600cc. 5D. M16A. 4WD. 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416-3. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-3. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-3. 1600cc. 5D. M16A. 4WD. 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416-3. 1600cc. 5D. M16A. 4WD. Rus. 2006/01-2016/03 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416-3. 1600cc. 5D. M16A. Rus. 2006/01-2016/03 1.6L Gasoline M16A MPI (101 hp / 74 kW) Front wheel drive.
RW416-3. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416-3. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-4. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-4. 1600cc. 5D. M16A. 4WD. Rus. 2010/01-2016/03 1.6L Gasoline M16A MPI (117 hp / 86 kW) Four-wheel drive (4WD).
RW416-4. 1600cc. 5D. M16A. Rus. 2010/01-2016/03 1.6L Gasoline M16A MPI (117 hp / 86 kW) Front wheel drive.
RW416-4. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416-4. 1600cc. SEDAN. M16A. Rus. 2010/01-2012/07 1.6L Gasoline M16A MPI (117 hp / 86 kW) Front wheel drive.
RW416. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416. 1600cc. 5D. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416. 1600cc. 5D. M16A. 4WD. 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Four-wheel drive (4WD).
RW416. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (107 hp / 79 kW) Front wheel drive.
RW416. 1600cc. SEDAN. M16A 2006/01-2014/12 1.6L Gasoline M16A MPI (120 hp / 88 kW) Front wheel drive.
RW416D-2. 1600cc. 5D. 9HX. turbo. Diz. 2006/01-2014/12 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D-2. 1600cc. 5D. 9HX. turbo. Diz. Rus. 2006/01-2016/03 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D-3. 1600cc. 5D. 9HX. turbo. Diz. 2006/01-2014/12 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D-3. 1600cc. 5D. 9HX. turbo. Diz. Rus. 2006/01-2016/03 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D. 1600cc. 5D. 9HX. turbo. Diz. 2006/01-2014/12 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW416D. 1600cc. 5D. 9HX. turbo. Diz. Rus. 2006/01-2016/03 1.6L Diesel 9HX (90 hp / 66 kW) Front wheel drive.
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. 4WD. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. 4WD. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D-2. 1900cc. 5D. D19AA. turbo. Diz. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW419D. 1900cc. 5D. D19AA. turbo. Diz. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW419D. 1900cc. 5D. D19AA. turbo. Diz. 4WD. 2006/01-2014/12 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D. 1900cc. 5D. D19AA. turbo. Diz. 4WD. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW419D. 1900cc. 5D. D19AA. turbo. Diz. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW420D-3. 1900cc. 5D. D19AA. turbo. Diz. 4WD. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Four-wheel drive (4WD).
RW420D-3. 1900cc. 5D. D19AA. turbo. Diz. Rus. 2006/01-2016/03 1.9L Diesel D19AA (120 hp / 88 kW) Front wheel drive.
RW420D-3. 2000cc. 5D. D20AA. turbo. Diz. 2006/01-2014/12 2.0L Diesel D20AA (135 hp / 99 kW) Front wheel drive.
RW420D-3. 2000cc. 5D. D20AA. turbo. Diz. 4WD. 2006/01-2014/12 2.0L Diesel D20AA (135 hp / 99 kW) Four-wheel drive (4WD).
YA11S 2006/05-2014/11 1.5L Gasoline M15A EPI (111 hp / 81 kW) Front wheel drive.
YB11S 2006/05-2014/11 1.5L Gasoline M15A EPI (110 HP / 81 kW) Four-wheel drive (4WD).
YC11S 2007/06-2014/11 1.5L Petrol M15A EPI (111 hp / 82 kW) Front wheel drive.

Modern production technologies and high-quality materials used in the manufacture of Masuma tie rods guarantee high durability of the parts.

Guarantee for steering drafts of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
MR-7640R JAR1275
