MASUMA RACK END
VENDOR CODE: MR-9101

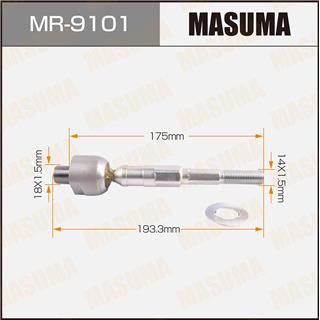

Remark: Length1: 175mm Ball Seat Thread: 18X1.5mm Ball pin thread: 14X1.5mm Length2: 193.3mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0322-FD1
53010SNAA01
53010-SNE-A01
C2409LR
CR0173
CRHO-37
SR-H030
CIVIC
Chassis No. Year Configuration
1800cc. KA. dx. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KA. dx. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KA. EX. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KA. EX. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KA. EXL. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KA. LX. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KA. LX. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-A. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-A. R18A1. 2006/01-2006/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-A. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-AL. R18A1. 2010/01-2010/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-AL. R18A1. 2006/01-2006/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-AL. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-AL. R18A1. 2009/01-2009/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-AL. R18A1. 2011/01-2011/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi-AL. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi. R18A1. 2009/01-2009/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi. R18A1. 2011/01-2011/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi. R18A1. 2006/01-2006/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. EXi. R18A1. 2010/01-2010/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi-AL. R18A1. 2011/01-2011/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi-AL. R18A1. 2010/01-2010/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi-AL. R18A1. 2009/01-2009/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi. R18A1. 2010/01-2010/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi. R18A1. 2009/01-2009/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi. R18A1. 2011/01-2011/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. LXi. R18A1. 2006/01-2006/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi-AL. R18A1. 2010/01-2010/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi-AL. R18A1. 2009/01-2009/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi-AL. R18A1. 2011/01-2011/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi. R18A1. 2007/01-2007/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi. R18A1. 2006/01-2006/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi. R18A1. 2009/01-2009/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi. R18A1. 2011/01-2011/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi. R18A1. 2008/01-2008/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
1800cc. KY. VTi. R18A1. 2010/01-2010/12 1.8L Gasoline R18A1 PGM-FI (140 hp / 103 kW) Front wheel drive.
FD2 2007/02-2010/01 ABA-FD2 2.0L Gasoline K20A PGM-FI Front wheel drive.
FD2 2006/04-2012/06 DBA-FD2 2.0L Gasoline K20A PGM-FI Front wheel drive.

Modern production technologies and high-quality materials used in the manufacture of Masuma tie rods guarantee high durability of the parts.

Guarantee for steering drafts of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
MR-9101 JAR1172
