Full Product Catalog

MASUMA RACK END
VENDOR CODE: MR-9113

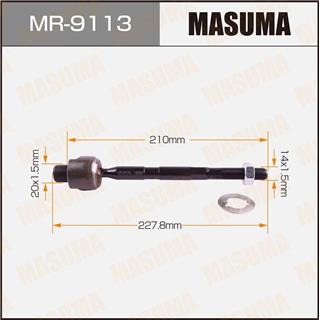

Remark: Length1: 210mm Ball Seat Thread: 20x1.5mm Ball pin thread: 14x1.5mm Length2: 227.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
3806001
47215
53010-SMG-E01
53011-SMG-E01
C2144R
CR0182
CRHO-46
SR-H140
CIVIC
Chassis No. Year Configuration
1300cc. kg. 1.4 GT. L13Z1. UK 2010/01-2010/12 1.3L Petrol L13Z1 PGM-FI (100 HP / 74 kW) Front wheel drive.
1300cc. kg. 1.4base. L13A7. UK 2007/01-2007/12 1.3L Petrol L13A7 PGM-FI (83 hp / 61 kW) Front wheel drive.
1300cc. kg. 1.4base. L13A7. UK 2006/01-2006/12 1.3L Petrol L13A7 PGM-FI (83 hp / 61 kW) Front wheel drive.
1300cc. kg. 1.4base. L13A7. UK 2008/01-2008/12 1.3L Petrol L13A7 PGM-FI (83 hp / 61 kW) Front wheel drive.
1300cc. kg. 1.4base. L13Z1. UK 2009/01-2009/12 1.3L Petrol L13Z1 PGM-FI (100 HP / 74 kW) Front wheel drive.
1300cc. kg. 1.4base. L13Z1. UK 2010/01-2010/12 1.3L Petrol L13Z1 PGM-FI (100 HP / 74 kW) Front wheel drive.
1300cc. kg. 1.4Comfort. L13A7. UK 2008/01-2008/12 1.3L Petrol L13A7 PGM-FI (83 hp / 61 kW) Front wheel drive.
1300cc. kg. 1.4Comfort. L13A7. UK 2007/01-2007/12 1.3L Petrol L13A7 PGM-FI (83 hp / 61 kW) Front wheel drive.
1300cc. kg. 1.4Comfort. L13A7. UK 2006/01-2006/12 1.3L Petrol L13A7 PGM-FI (83 hp / 61 kW) Front wheel drive.
1300cc. kg. 1.4Comfort. L13Z1. UK 2009/01-2009/12 1.3L Petrol L13Z1 PGM-FI (100 HP / 74 kW) Front wheel drive.
1300cc. kg. 1.4Comfort. L13Z1. UK 2010/01-2010/12 1.3L Petrol L13Z1 PGM-FI (100 HP / 74 kW) Front wheel drive.
1800cc. K.R. 1.8 Executive. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. K.R. 1.8 Executive. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. K.R. 1.8 Executive. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. K.R. 1.8 GT. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. K.R. 1.8Sport. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. K.R. 1.8Sport. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. K.R. 1.8Sport. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. kg. 1.8 Type-S Plus. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. kg. 1.8Type-S. R18A2. UK 2007/01-2007/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. kg. 1.8Type-S. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. kg. 1.8Type-S. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. kg. 1.8Type-S. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 Executive. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 Executive. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 Executive. R18A2. UK 2007/01-2007/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 Executive. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 GT. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 Type-S Plus. R18A2. UK 2007/01-2007/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8 Type-S Plus. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Comfort. R18A2. UK 2007/01-2007/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Comfort. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Comfort. R18A2. UK 2006/01-2006/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Comfort. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Comfort. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Sport. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Sport. R18A2. UK 2006/01-2006/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Sport. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Sport. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Sport. R18A2. UK 2007/01-2007/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Type-S. R18A2. UK 2008/01-2008/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Type-S. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KS. 1.8Type-S. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KY. 1.8 Executive. R18A2. UK 2010/01-2010/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
1800cc. KY. 1.8 Executive. R18A2. UK 2009/01-2009/12 1.8L Gasoline R18A2 PGM-FI (140 HP / 103 kW) Front wheel drive.
2000cc. kg. 2.0 Type R. K20Z4. UK 2007/01-2007/12 2.0L Gasoline K20Z4 PGM-FI (200 HP / 147 kW) Front wheel drive.
2000cc. kg. 2.0 Type R. K20Z4. UK 2008/01-2008/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0 Type R. K20Z4. UK 2009/01-2009/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0 Type R. K20Z4. UK 2010/01-2010/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Championsh. K20Z4. UK 2009/01-2009/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Championsh. K20Z4. UK 2010/01-2010/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Plus. K20Z4. UK 2007/01-2007/12 2.0L Gasoline K20Z4 PGM-FI (200 HP / 147 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Plus. K20Z4. UK 2009/01-2009/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Plus. K20Z4. UK 2010/01-2010/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Plus. K20Z4. UK 2008/01-2008/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Race. K20Z4. UK 2007/01-2007/12 2.0L Gasoline K20Z4 PGM-FI (200 HP / 147 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Race. K20Z4. UK 2008/01-2008/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Race. K20Z4. UK 2009/01-2009/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2000cc. kg. 2.0Type-R Race. K20Z4. UK 2010/01-2010/12 2.0L Gasoline K20Z4 PGM-FI (201 hp / 148 kW) Front wheel drive.
2200cc. kg. 2.2Type-S. N22A2. turbo. Diz. UK 2008/01-2008/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. kg. 2.2Type-S. N22A2. turbo. Diz. UK 2010/01-2010/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. kg. 2.2Type-S. N22A2. turbo. Diz. UK 2007/01-2007/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. kg. 2.2Type-S. N22A2. turbo. Diz. UK 2009/01-2009/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2 Type-S Plus. N22A2. turbo. Diz. UK 2010/01-2010/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Comfort. N22A2. turbo. Diz. UK 2006/01-2006/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Comfort. N22A2. turbo. Diz. UK 2008/01-2008/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Comfort. N22A2. turbo. Diz. UK 2010/01-2010/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Comfort. N22A2. turbo. Diz. UK 2007/01-2007/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Comfort. N22A2. turbo. Diz. UK 2009/01-2009/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Executive. N22A2. turbo. Diz. UK 2010/01-2010/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Executive. N22A2. turbo. Diz. UK 2009/01-2009/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Executive. N22A2. turbo. Diz. UK 2008/01-2008/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Executive. N22A2. turbo. Diz. UK 2006/01-2006/12 2.2L Diesel N22A2 Front wheel drive.
2200cc. KS. 2.2Sport. N22A2. turbo. Diz. UK 2007/01-2007/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Sport. N22A2. turbo. Diz. UK 2009/01-2009/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Sport. N22A2. turbo. Diz. UK 2006/01-2006/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Sport. N22A2. turbo. Diz. UK 2008/01-2008/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Sport. N22A2. turbo. Diz. UK 2010/01-2010/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Type-S. N22A2. turbo. Diz. UK 2010/01-2010/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Type-S. N22A2. turbo. Diz. UK 2009/01-2009/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.
2200cc. KS. 2.2Type-S. N22A2. turbo. Diz. UK 2008/01-2008/12 2.2L Diesel N22A2 (140 hp / 103 kW) Front wheel drive.

Modern production technologies and high-quality materials used in the manufacture of Masuma tie rods guarantee high durability of the parts.

Guarantee for steering drafts of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
MR-9113 JAR1274
