MASUMA SHOCK ABSORBER DUST COVER
VENDOR CODE: MAB-1064

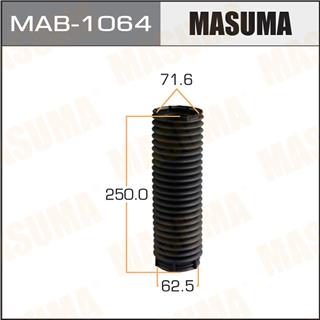

Remark: Ball pin thread:71.6mm Height:250mm Ball Seat Thread:62.5mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
BP4K-34-0A5B
MAZDA 3
Chassis No. Year Configuration
1600cc. 5D. Colombia. 2012/02-2013/08 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
1600cc. 5D. Taiwan. 2012/01-2013/08 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
1600cc. Colombia. 2012/02-2013/08 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
1600cc. israel. 2011/09-2013/08 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
1600cc. Taiwan. 2012/01-2013/08 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
1600cc. Vietnam. 2012/01-2013/08 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
1600cc. ZM-DE. 5D. gcc. 2006/05-2008/11 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
1600cc. ZM-DE. 5D. Taiwan. 2009/06-2013/08 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
1600cc. ZM-DE. Taiwan. 2006/11-2008/11 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
1600cc. ZM-DE. Taiwan. 2009/07-2013/08 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
2000cc. 5D. Colombia. 2012/02-2013/08 2.0L Petrol PE-VPS Front wheel drive.
2000cc. Colombia. 2012/02-2013/08 2.0L Petrol PE-VPS Front wheel drive.
2000cc. israel. 2011/09-2013/08 2.0L Petrol PE-VPS Front wheel drive.
2000cc. LF-VE. 5D. Taiwan. 2009/06-2013/08 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
2000cc. LF-VE. Taiwan. 2009/07-2013/08 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
2000cc. LF-VE. Taiwan. 2006/11-2008/11 2.0L Petrol LF-VE EGI (170 HP / 125 kW) Front wheel drive.
2500cc. L5-VE. 5D. Taiwan. 2009/06-2013/08 2.5L Petrol L5-VE EGI (160 HP / 118 kW) Front wheel drive.
BK1#. 2000cc. LF-DE. 5D. Euro. 2003/09-2006/03 2.0L Petrol LF-DE EGI (160 hp / 118 kW) Front wheel drive.
BK1#. 2000cc. LF-VE. 5D. Euro. 2006/03-2008/11 2.0L Petrol LF-VE EGI (150 HP / 110 kW) Front wheel drive.
BK1#. 2000cc. LF-VE. 5D. Rus. 2008/02-2008/11 2.0L Petrol LF-VE EGI (150 HP / 110 kW) Front wheel drive.
BK1#. 2000cc. SEDAN. LF-DE. Euro. 2003/07-2006/03 2.0L Petrol LF-DE EGI (140 hp / 103 kW) Front wheel drive.
BK1#. 2000cc. SEDAN. LF-VE. Euro. 2006/03-2008/11 2.0L Petrol LF-VE EGI (170 HP / 125 kW) Front wheel drive.
BK1#. 2000cc. SEDAN. LF-VE. Rus. 2008/02-2008/11 2.0L Petrol LF-VE EGI (170 HP / 125 kW) Front wheel drive.
BL#. 1600cc. 5D. gcc. 2011/09-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. 5D. general. 2011/09-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. gcc. 2011/09-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. general. 2011/09-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. SEDAN. Rus. 2011/07-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. ZM-DE. 5D. gcc. 2009/03-2013/09 1.6L Gasoline ZM-DE EGI (95 hp / 70 kW) Front wheel drive.
BL#. 1600cc. ZM-DE. 5D. general. 2009/02-2013/09 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. ZM-DE. gcc. 2009/03-2013/09 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
BL#. 1600cc. ZM-DE. general. 2009/02-2013/09 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
BL#. 2000cc. 5D. general. 2011/09-2013/09 2.0L Petrol PE-VPS Front wheel drive.
BL#. 2000cc. general. 2011/09-2013/09 2.0L Petrol PE-VPS Front wheel drive.
BL#. 2000cc. LF-VE. 5D. general. 2009/02-2013/09 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
BL#. 2000cc. LF-VE. general. 2009/02-2013/09 2.0L Petrol LF-VE EGI (150 HP / 110 kW) Front wheel drive.
BL1#. 1600cc. 5D. euro. 2011/07-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL1#. 1600cc. 5D. israel. 2011/09-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL1#. 1600cc. 5D. Rus. 2011/07-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL1#. 1600cc. SEDAN. euro. 2011/07-2013/09 1.6L Gasoline Z6 EGI (105 hp / 77 kW) Front wheel drive.
BL1#. 1600cc. SEDAN. ZM-DE. euro. 2008/12-2013/09 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
BL1#. 1600cc. SEDAN. ZM-DE. Rus. 2009/03-2013/09 1.6L Gasoline ZM-DE EGI (105 hp / 77 kW) Front wheel drive.
BL1#. 1600cc. Y6. turbo. Diz. 5D. euro. 2008/12-2013/09 1.6L Diesel Y6 (109 hp / 80 kW) Front wheel drive.
BL1#. 2000cc. LF-VE. 5D. Rus. 2009/04-2013/09 2.0L Petrol LF-VE EGI (150 HP / 110 kW) Front wheel drive.
BL1#. 2000cc. LF-VE. Colombia. 2012/02-2013/09 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
BL1#. 2000cc. LF-VE. israel. 2011/09-2013/09 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
BL1#. 2000cc. SEDAN. euro. 2011/07-2013/09 2.0L Petrol LF-VDS DI (150 HP / 110 kW) Front wheel drive.
BL1#. 2000cc. SEDAN. LF-VE. Euro. 2008/12-2013/09 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
BL1#. 2000cc. SEDAN. LF-VE. Rus. 2009/04-2013/09 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
BL1#. 2200cc. R2. turbo. Diz. 5D. euro. 2009/01-2013/09 2.2L Diesel R2 (185 hp / 136 kW) Front wheel drive.
BL1#. 2200cc. R2. turbo. Diz. euro. 2009/01-2013/09 2.2L Diesel R2 (185 hp / 136 kW) Front wheel drive.
BL1#. 2200cc. turbo. Diz. 5D. euro. 2011/07-2013/09 2.2L Diesel R2AA (150 hp / 110 kW) Front wheel drive.
BL1#. 2300cc. L3-VDT. turbo. 5D. euro. 2009/05-2013/09 2.3L Petrol L3-VDT EGI (235 hp / 173 kW) Front wheel drive.
BL1#. 2300cc. turbo. 5D. euro. 2011/07-2013/09 2.3L Petrol L3-VDT EGI (235 hp / 173 kW) Front wheel drive.
AXELA
Chassis No. Year Configuration
BK3P 2006/06-2009/06 2.3L Petrol L3-VDT DI (235 hp / 173 kW) Front wheel drive.
BK3P 2003/01-2009/06 2.3L Petrol L3-VE EGI (150 hp / 110 kW) Front wheel drive.
BK3P 2003/01-2006/06 2.3L Petrol L3-VE EGI (150 hp / 110 kW) Front wheel drive.
BK5P 2003/01-2009/06 1.5L Gasoline ZY-VE EGI (100 HP / 74 kW) Front wheel drive.
BKEP 2003/01-2006/06 2.0L Petrol LF-DE EGI (140 hp / 103 kW) Front wheel drive.
BKEP 2006/06-2009/06 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
BKEP 2006/06-2009/06 2.0L Petrol LF-VE EGI (143 hp / 105 kW) Front wheel drive.
BKEP 2006/06-2009/06 2.0L Petrol LF-VE EGI (144 hp / 106 kW) Four-wheel drive (4WD).
BKEP 2006/06-2009/06 2.0L Petrol LF-VE EGI (145 hp / 107 kW) Four-wheel drive (4WD).
BL3FW 2009/06-2013/11 2.3L Petrol L3-VDT DI (235 hp / 173 kW) Front wheel drive.
BL5FP 2009/06-2013/11 1.5L Gasoline ZY-VE EGI (100 HP / 74 kW) Front wheel drive.
BL5FW 2009/06-2013/11 1.5L Gasoline ZY-VE EGI (100 HP / 74 kW) Front wheel drive.
BLEAP 2009/06-2013/11 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Four-wheel drive (4WD).
BLEAW 2009/06-2013/11 2.0L Petrol LF-VE EGI (143 hp / 105 kW) Four-wheel drive (4WD).
BLEFP 2009/06-2013/11 2.0L Petrol LF-VDS DI (150 HP / 110 kW) Front wheel drive.
BLEFW 2009/06-2013/11 2.0L Petrol LF-VDS DI (150 HP / 110 kW) Front wheel drive.
BLFFP 2011/09-2013/11 2.0L Petrol PE-VPS DI (154 hp / 113 kW) Front wheel drive.
BLFFW 2011/09-2013/11 2.0L Petrol PE-VPS DI (154 hp / 113 kW) Front wheel drive.
BIANTE
Chassis No. Year Configuration
CC3FW 2008/07-2013/05 2.3L Petrol L3-VE EGI (150 hp / 110 kW) Front wheel drive.
CCEAW 2008/07-2018/03 2.0L Petrol LF-VD DI (150 hp / 110 kW) Four-wheel drive (4WD).
CCEFW 2008/07-2013/05 2.0L Petrol LF-VD DI (150 HP / 110 kW) Front wheel drive.
CCEFW 2009/06-2013/05 2.0L Petrol LF-VDS DI (150 HP / 110 kW) Front wheel drive.
CCFFW 2013/05-2018/03 2.0L Petrol PE-VPS DI (165 hp / 121 kW) Front wheel drive.
MAZDA 5
Chassis No. Year Configuration
CR19#. 1800cc. L8-DE. Euro. 2005/02-2007/09 1.8L Petrol L8-DE EGI (120 hp / 88 kW) Front wheel drive.
CR19#. 1800cc. L8-DE. euro. 2007/09-2010/06 1.8L Petrol L8-DE EGI (120 hp / 88 kW) Front wheel drive.
CR19#. 2000cc. LF-DE. Euro. 2005/02-2007/09 2.0L Petrol LF-DE EGI (140 hp / 103 kW) Front wheel drive.
CR19#. 2000cc. LF-VE. euro. 2007/09-2010/06 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
CR19#. 2000cc. RF-T. turbo. Diz. euro. 2005/04-2007/09 2.0L Diesel RF-T (100 hp / 74 kW) Front wheel drive.
CR19#. 2000cc. RF-T. turbo. Diz. euro. 2007/09-2010/06 2.0L Diesel RF-T (110 hp / 81 kW) Front wheel drive.
CW#9#. 1600cc. Y6. turbo. Diz. euro. 2010/01-2015/02 1.6L Diesel Y6 (109 hp / 80 kW) Front wheel drive.
CW#9#. 1800cc. L8-DE. euro. 2010/06-2015/02 1.8L Petrol L8-DE EGI Front wheel drive.
CW#9#. 2000cc. LF-VE. euro. 2010/06-2015/02 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
CW#9#. 2000cc. LF-VE. israel. 2010/09-2015/02 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
CW#9#. 2000cc. LF-VE. Rus. 2010/09-2015/02 2.0L Petrol LF-VE EGI (139 hp / 102 kW) Front wheel drive.
PREMACY
Chassis No. Year Configuration
CR3W 2004/12-2009/07 2.3L Petrol L3-VE EGI (150 hp / 110 kW) Front wheel drive.
CREW 2005/08-2007/09 2.0L Petrol LF-DE EGI (140 hp / 103 kW) Four-wheel drive (4WD).
CREW 2004/12-2007/09 2.0L Petrol LF-DE EGI (140 hp / 103 kW) Front wheel drive.
CREW 2007/01-2010/05 2.0L Petrol LF-VD DI (146 hp / 107 kW) Front wheel drive.
CREW 2007/08-2009/07 2.0L Petrol LF-VE EGI (150 HP / 110 kW) Front wheel drive.
CREW 2007/08-2010/05 2.0L Petrol LF-VE EGI (162 hp / 119 kW) Four-wheel drive (4WD).
CWEAW 2010/08-2018/02 2.0L Petrol LF-VE EFI (166 hp / 122 kW) Four-wheel drive (4WD).
CWEFW 2010/07-2018/02 2.0L Petrol LF-VD DI (144 hp / 106 kW) Front wheel drive.
CWEFW 2010/05-2016/07 2.0L Petrol LF-VDS DI (150 HP / 110 kW) Front wheel drive.
CWFFW 2013/01-2018/03 2.0L Petrol PE-VPS DI (148 hp / 109 kW) Front wheel drive.

Masuma strut boots protect the upper, working part of the shock absorber (strut). The boot prevents dirt from getting inside the shock absorber, along the surface of the rod. Ingress of dust and dirt particles can compromise the seal of the shock absorber and cause gas and oil to escape from the shock absorber.

Guarantee for anthers of racks of the engine of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
MAB-1064
