MASUMA STRUT MOUNT
Thermostat Masuma
Thermostat Masuma

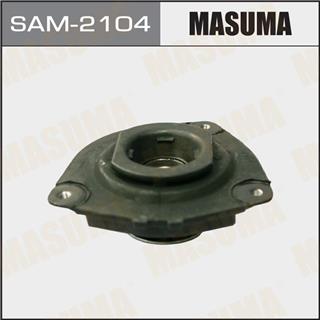

MASUMA STRUT MOUNT
VENDOR CODE: SAM-2104
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ENQUIRY
APPLICABILITY
OEM
BRAND NUMBER
54320-1FE0A
54320-3UB0A
54320-9U01A
54320-AX000
54320-AX001
54320-AX00A
54320-BC40A
54320-ED001
54320-ED500
54320-EL00A
54320-EN00A
54320-JX00A
54320-JX50A
54320-ZE70A
MARCH
Chassis No. Year Configuration
AK12 2002/02-2010/07 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
AK12 2002/02-2005/08 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
BK12 2002/02-2005/08 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
BNK12 2002/09-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Four-wheel drive (4WD).
YK12 2005/08-2010/07 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
LAFESTA
Chassis No. Year Configuration
B30 2007/07-2012/06 2.0L Gasoline MR20DE EGI (137 hp / 101 kW) Front wheel drive.
NB30 2007/07-2012/06 2.0L Gasoline MR20DE EGI (137 HP / 101 kW) Four wheel drive (4WD).
CUBE CUBIC
Chassis No. Year Configuration
BGZ11 2003/09-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
YGNZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
YGZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
CUBE
Chassis No. Year Configuration
BNZ11 2002/01-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Four-wheel drive (4WD).
BZ11 2002/01-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
NZ12 2008/11-2014/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
YZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
Z12 2008/11-2020/03 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
Z12. 1500cc. K9K. turbo. Diz. 2009/01- 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
Z12. 1600cc. HR16DE 2009/08- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
TIIDA
Chassis No. Year Configuration
C11 2004/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
C11X. 1500cc. 5D. K9K. turbo. Diz. 2007/03-2010/03 1.5L Diesel K9K (106 hp / 78 kW) Front wheel drive.
C11X. 1600cc. 5D. HR16DE 2007/03-2014/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
C11X. 1600cc. 5D. HR16DE 2007/08-2013/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
C11X. 1800cc. 5D. MR18DE 2007/08-2013/07 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
C11X. 1800cc. 5D. MR18DE 2007/03-2010/03 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
JC11 2005/01-2010/08 1.8L Petrol MR18DE EGI (124 hp / 91 kW) Front wheel drive.
NC11 2004/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
SC11X. 1500cc. K9K. turbo. Diz. 2007/02-2010/03 1.5L Diesel K9K (106 hp / 78 kW) Front wheel drive.
SC11X. 1600cc. HR16DE 2007/08- 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
SC11X. 1600cc. HR16DE 2007/02- 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
SC11X. 1800cc. MR18DE 2007/08- 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
SC11X. 1800cc. MR18DE 2007/02-2010/03 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
MICRA C+C
Chassis No. Year Configuration
CK12E. 1400cc. CR14DE 2005/09-2009/03 1.4L Petrol CR14DE EGI (88 hp / 65 kW) Front wheel drive.
CK12E. 1600cc. HR16DE 2005/09-2009/03 1.6L Petrol HR16DE EGI (88 hp / 65 kW) Front wheel drive.
X-TRAIL
Chassis No. Year Configuration
DNT31 2012/02-2014/04 2.0L Diesel M9R (173 hp / 127 kW) Four-wheel drive (4WD).
NT31 2012/02-2014/04 2.0L Gasoline MR20DE (140 hp / 103 kW) Four wheel drive (4WD).
T31 2012/02-2014/04 2.0L Gasoline MR20DE (140 HP / 103 kW) Front wheel drive.
T31. 2000cc. M9R. turbo. Diz. 4WD. JAPAN. 110KW 2012/02-2014/04 2.0L Diesel M9R (105 hp / 110 kW) Four-wheel drive (4WD).
T31. 2000cc. M9R. turbo. Diz. 4WD. JAPAN. 127KW 2012/02-2014/04 2.0L Diesel M9R (173 hp / 127 kW) Four-wheel drive (4WD).
T31. 2000cc. M9R. turbo. Diz. 4WD. Rus. 110KW 2012/02-2014/04 2.0L Diesel M9R (150 hp / 110 kW) Four-wheel drive (4WD).
T31. 2000cc. M9R. turbo. Diz. 4WD. Rus. 127KW 2012/02-2014/04 2.0L Diesel M9R (173 hp / 127 kW) Four-wheel drive (4WD).
T31. 2000cc. M9R. turbo. Diz. JAPAN. 110KW 2012/02-2014/04 2.0L Diesel M9R (150 hp / 110 kW) Front wheel drive.
T31. 2000cc. MR20DE. 4WD. Rus. 2012/02-2014/04 2.0L Gasoline MR20DE EGI (140 hp / 103 kW) Four wheel drive (4WD).
T31. 2500cc. QR25DE. 4WD. Rus. 2012/02-2014/04 2.5L Gasoline QR25DE EGI (169 HP / 124 kW) Four-wheel drive (4WD).
T31R. 2000cc. M9R. turbo. Diz. 4WD. Rus. 110KW 2011/09-2014/04 2.0L Diesel M9R (150 hp / 110 kW) Four-wheel drive (4WD).
T31R. 2000cc. M9R. turbo. Diz. 4WD. Rus. 130KW 2011/09-2014/04 2.0L Diesel M9R (177 hp / 130 kW) Four-wheel drive (4WD).
T31R. 2000cc. MR20DE. 4WD. Rus. 2011/09-2014/04 2.0L Gasoline MR20DE EGI (140 hp / 103 kW) Four wheel drive (4WD).
T31R. 2500cc. QR25DE. 4WD. Rus. 2011/09-2014/04 2.5L Gasoline QR25DE EGI (169 HP / 124 kW) Four-wheel drive (4WD).
TNT31 2012/02-2014/04 2.5L Gasoline QR25DE (170 HP / 125 kW) Four-wheel drive (4WD).
NOTE
Chassis No. Year Configuration
E11 2005/01-2012/09 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
E11E. 1400cc. CR14DE 2006/01-2013/08 1.4L Petrol CR14DE EGI (88 hp / 65 kW) Front wheel drive.
E11E. 1500cc. K9K. turbo. Diz. 2006/01-2013/08 1.5L Diesel K9K (103 hp / 76 kW) Front wheel drive.
E11E. 1600cc. HR16DE 2006/01-2013/08 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
NE11 2005/01-2012/09 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
ZE11 2008/01-2012/09 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
BLUEBIRD SYLPHY
Chassis No. Year Configuration
G11 2005/12-2012/12 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
KG11 2005/12-2012/12 2.0L Gasoline MR20DE EGI (147 HP / 108 kW) Front wheel drive.
NG11 2005/12-2012/12 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
WINGROAD
Chassis No. Year Configuration
JY12 2005/11-2014/09 1.8L Petrol MR18DE EGI (128 hp / 94 kW) Front wheel drive.
NY12 2005/11-2014/09 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
Y12 2005/11-2018/03 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
MICRA
Chassis No. Year Configuration
K12E. 1000cc. 3D. CG10DE 2002/11-2005/05 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1000cc. 5D. CG10DE 2002/11-2005/05 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1200cc. 3D. CG12DE 2002/11-2010/07 1.2L Petrol CG12DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1200cc. 3D. CR12DE 2002/11-2010/07 1.2L Petrol CR12DE EGI (90 HP / 66 kW) Front wheel drive.
K12E. 1200cc. 5D. CG12DE 2002/11-2010/07 1.2L Petrol CG12DE EGI (59 hp / 80 kW) Front wheel drive.
K12E. 1200cc. 5D. CR12DE 2002/11-2010/07 1.2L Petrol CR12DE EGI (80 HP / 109 kW) Front wheel drive.
K12E. 1200cc. 5D. CR12DE 2007/09-2010/07 1.2L Petrol CR12DE EGI (81 hp / 110 kW) Front wheel drive.
K12E. 1400cc. 3D. CGA3DE 2002/11-2005/05 1.4L Petrol CGA3DE EGI (82 hp / 60 kW) Front wheel drive.
K12E. 1400cc. 3D. CR14DE 2005/05-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1400cc. 5D. CGA3DE 2002/11-2005/05 1.4L Petrol CGA3DE EGI (82 hp / 60 kW) Front wheel drive.
K12E. 1400cc. 5D. CR14DE 2007/09-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1400cc. 5D. CR14DE 2005/05-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.48KW 2003/02-2007/09 1.5L Diesel K9K (65 hp / 48 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.50KW 2005/01-2007/09 1.5L Diesel K9K (68 hp / 50 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.60KW 2003/08-2010/07 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.63KW 2005/01-2010/07 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.48KW 2003/02-2007/09 1.5L Diesel K9K (65 hp / 48 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.50KW 2005/01-2007/09 1.5L Diesel K9K (68 hp / 50 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.60KW 2007/09-2010/07 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.60KW 2003/08-2010/07 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.63KW 2005/01-2010/07 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
K12E. 1600cc. 3D. HR16DE 2005/05-2010/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
K12E. 1600cc. 5D. HR16DE 2005/05-2010/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
NV200
Chassis No. Year Configuration
M20 2009/05- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
M20. 1500cc. 4D. K9K. turbo. Diz. 2009/08-2010/05 1.5L Diesel K9K (90 hp / 66 kW) Front wheel drive.
M20. 1500cc. 4D. K9K. turbo. Diz. Van 2009/08-2010/05 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
M20. 1500cc. 5D. K9K. turbo. Diz. 2009/08-2010/05 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
M20. 1500cc. 5D. K9K. turbo. Diz. Van 2009/08-2010/05 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
M20. 1600cc. 4D. HR16DE 2009/08-2010/05 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20. 1600cc. 4D. HR16DE. Van 2009/08-2010/05 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20. 1600cc. 5D. HR16DE 2009/08-2010/05 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20. 1600cc. 5D. HR16DE. Van 2009/08-2010/05 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1500cc. 4D. K9K. turbo. Diz. SPAIN. 2013/01-2021/12 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
M20M. 1500cc. 4D. K9K. turbo. Diz. SPAIN. 2010/07-2011/07 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
M20M. 1500cc. 4D. K9K. turbo. Diz. SPAIN. Van 2010/07-2011/07 1.5L Diesel K9K (90 hp / 66 kW) Front wheel drive.
M20M. 1500cc. 4D. K9K. turbo. Diz. SPAIN. Van 2013/01-2021/12 1.5L Diesel K9K (90 hp / 66 kW) Front wheel drive.
M20M. 1500cc. 5D. K9K. turbo. Diz. SPAIN. 2013/01-2021/12 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
M20M. 1500cc. 5D. K9K. turbo. Diz. SPAIN. 2009/11-2011/07 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
M20M. 1500cc. 5D. K9K. turbo. Diz. SPAIN. Van 2009/11-2011/07 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
M20M. 1500cc. 5D. K9K. turbo. Diz. SPAIN. Van 2013/01-2021/12 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 4D. HR16DE. SPAIN. 2013/01-2021/12 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 4D. HR16DE. SPAIN. 2010/07-2011/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 4D. HR16DE. SPAIN. Van 2010/07-2011/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 4D. HR16DE. SPAIN. Van 2013/01-2021/12 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 5D. HR16DE. SPAIN. 2013/01-2021/12 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 5D. HR16DE. SPAIN. 2009/11-2011/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 5D. HR16DE. SPAIN. Van 2009/11-2011/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
M20M. 1600cc. 5D. HR16DE. SPAIN. Van 2013/01-2021/12 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
VM20 2009/05- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
TIIDA LATIO
Chassis No. Year Configuration
SC11 2004/01-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
SC11 2008/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
SJC11 2005/01-2010/08 1.8L Petrol MR18DE EGI (124 hp / 91 kW) Front wheel drive.
SNC11 2004/01-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
SZC11 2008/09-2012/06 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
AD
Chassis No. Year Configuration
VAY12 2006/12-2013/05 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
VY12 2006/12-2016/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
VZNY12 2008/12-2016/12 1.6L Petrol HR16DE EGI (120 hp / 88 kW) Four-wheel drive (4WD).
AD EXPERT
Chassis No. Year Configuration
VJY12 2006/12-2016/12 1.8L Petrol MR18DE EGI (128 hp / 94 kW) Front wheel drive.
VY12 2006/12-2016/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
VZNY12 2008/12-2016/12 1.6L Petrol HR16DE EGI (120 hp / 88 kW) Four-wheel drive (4WD).
MASUMA No.
SAM-2104
You May Also Like

SAM-1137

Click to view

SAM-1141

Click to view

SAM-1122

Click to view

SAM-1124

Click to view

SAM-1110

Click to view

SAM-1127

Click to view

Message

Thank you!

Your message has been successfully sent. Within 24 hours you will receive a response to your email.

Обратная связь

Есть вопрос по работе сайта, качеству запчастей, гарантии или сотрудничеству? Напишите нам — ответим в течение рабочего дня.

PRODUCT SELECTION

SELECTION OF SPARE PARTS
Quick selection of MASUMA spare parts by car model or part size
BY CAR MODEL
1/4
Choose your car
BY CAR MODEL
1/4
Choose your car
A
ABARTH
ACURA
ALFA ROMEO
ALFA-ROMEO
ALPINA
ALPINE
ASIA-MOTORS
ASTON-MARTIN
AUDI
AUSTIN
AUTO-UNION
AUTOBIANCHI
B
BARKAS
BEDFORD
BENTLEV
BENTLEY
BENZ
BMW
BORGWARD
BUICK
BUICK-SGM
BYD
C
CADILLAC
Changan Automobile
CHERY
CHEVROLET
CHRYSLER
CITROEN
CUPRA
D
DACIA
DAEWOO
DAF
DAFA
DAIHATSU
DAIMLER
DATSUN
DODGE
DONGNAN
DS
F
FERRARI
FIAT
FORD
FORD AUSTRALIA
FORD-USA
FSO
FUSO (MITSUBISHI TRUCKS)
FUSO-MITSUBISHI
G
GEELY
GENESIS
GLEAGLE-GEELY
GMC
GREAT WALL
GREAT-WALL
H
HAVAL
HINO
HOLDEN
HONDA
HUAPU
HUMMER
HYUNDAI
I
ideal
INFINITI
INNOCENTI
ISUZU
IVECO
J
JAGUAR
JEEP
JIANGLING
K
KIA
KTM
L
LADA
LANCIA
LAND ROVER
LAND-ROVER
LDV
LEXUS
LIFAN
LINCOLN
LOTUS
M
MAN
MASERATI
MAYBACH
MAZDA
MEGA
MERCEDES-BENZ
MERCURY
MG
MINI
MITSUBISHI
MORGAN
MORRIS
MOSKVICH
MULTICAR
N
NISSAN
NSU
O
OPEL
P
PEUGEOT
PININFARINA
PLYMOUTH
POLESTAR
PONTIAC
PORSCHE
PROTON
PUCH
R
RENAULT
RENAULT-TRUCKS
ROEWE
ROLLS-ROYCE
ROVER
S
SAAB
SANTANA
SCANIA
SCION
SEAT
SKODA
SMART
SSANGYONG
SUBARU
SUZUK1
SUZUKI
T
TALBOT
Tengshi
TESLA
TOYOTA
TRABANT
TVR
U
UAZ
V
VAUXHALL
VOLKSWAGEN
VOLVO
VW
W
WARTBURG
WEY Wei brand
WIESMANN
WuLing
Z
ZASTAVA
A
ABARTH
ACURA
ALFA ROMEO
ALFA-ROMEO
ALPINA
ALPINE
ASIA-MOTORS
ASTON-MARTIN
AUDI
AUSTIN
AUTO-UNION
AUTOBIANCHI
B
BARKAS
BEDFORD
BENTLEV
BENTLEY
BENZ
BMW
BORGWARD
BUICK
BUICK-SGM
BYD
C
CADILLAC
Changan Automobile
CHERY
CHEVROLET
CHRYSLER
CITROEN
CUPRA
D
DACIA
DAEWOO
DAF
DAFA
DAIHATSU
DAIMLER
DATSUN
DODGE
DONGNAN
DS
F
FERRARI
FIAT
FORD
FORD AUSTRALIA
FORD-USA
FSO
FUSO (MITSUBISHI TRUCKS)
FUSO-MITSUBISHI
G
GEELY
GENESIS
GLEAGLE-GEELY
GMC
GREAT WALL
GREAT-WALL
H
HAVAL
HINO
HOLDEN
HONDA
HUAPU
HUMMER
HYUNDAI
I
ideal
INFINITI
INNOCENTI
ISUZU
IVECO
J
JAGUAR
JEEP
JIANGLING
K
KIA
KTM
L
LADA
LANCIA
LAND ROVER
LAND-ROVER
LDV
LEXUS
LIFAN
LINCOLN
LOTUS
M
MAN
MASERATI
MAYBACH
MAZDA
MEGA
MERCEDES-BENZ
MERCURY
MG
MINI
MITSUBISHI
MORGAN
MORRIS
MOSKVICH
MULTICAR
N
NISSAN
NSU
O
OPEL
P
PEUGEOT
PININFARINA
PLYMOUTH
POLESTAR
PONTIAC
PORSCHE
PROTON
PUCH
R
RENAULT
RENAULT-TRUCKS
ROEWE
ROLLS-ROYCE
ROVER
S
SAAB
SANTANA
SCANIA
SCION
SEAT
SKODA
SMART
SSANGYONG
SUBARU
SUZUK1
SUZUKI
T
TALBOT
Tengshi
TESLA
TOYOTA
TRABANT
TVR
U
UAZ
V
VAUXHALL
VOLKSWAGEN
VOLVO
VW
W
WARTBURG
WEY Wei brand
WIESMANN
WuLing
Z
ZASTAVA
