THERMOSTAT
MASUMA THERMOSTAT
Thermostat Masuma

MASUMA THERMOSTAT

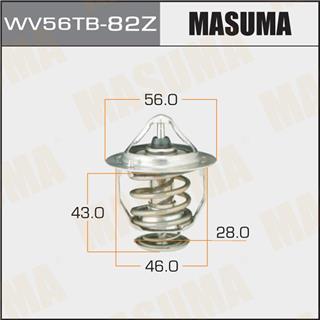

VENDOR CODE: WV56TB-82Z
Remark: Diameter1:56mm Height:43mm Diameter2:28mm Diameter3:46mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ENQUIRY
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
1608167380
90916-03084
90916-03129
90916-03133
90916-03136
90916-03140
MD1315301
ALTIS
Chassis No. Year Configuration
ACV40N 2006/01-2010/02 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Front wheel drive.
ACV45N 2006/01-2010/02 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Four-wheel drive (4WD).
HS250H
Chassis No. Year Configuration
ANF10 2009/07-2018/02 2.4L Petrol 2AZFXE EFI (150 HP / 110 kW) Front wheel drive.
ANF10L 2009/07-2012/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
RX350
Chassis No. Year Configuration
GGL10L 2008/12-2015/09 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
GGL10L 2009/01-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGL10W 2008/12-2015/01 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Front wheel drive.
GGL15L 2009/01-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GGL15L 2008/12-2015/09 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GGL15W 2008/12-2015/01 3.5L Petrol 2GRFE EFI (273 hp / 201 kW) Four-wheel drive (4WD).
GGL16W 2008/12-2012/03 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
GSU30L 2007/11-2009/01 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Front wheel drive.
GSU30L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Front wheel drive.
GSU30L 2007/11-2008/12 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Front wheel drive.
GSU30L 2006/02-2007/11 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Front wheel drive.
GSU35L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
GSU35L 2007/11-2008/12 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
GSU35L 2006/02-2007/11 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
GSU35L 2007/11-2009/01 3.5L Petrol 2GRFE EFI (276 hp / 203 kW) Four-wheel drive (4WD).
GSU35L 2007/11-2008/12 3.5L Petrol 2GRFE EFI (276 hp / 203 kW).
GSU35L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (276 hp / 203 kW).
ES350
Chassis No. Year Configuration
GSV40L 2006/03-2007/11 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
GSV40L 2007/11-2012/06 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
GSV60L 2012/06-2018/06 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
RX450H
Chassis No. Year Configuration
GYL10L 2009/03-2015/09 3.5L Petrol 2GRFXE EFI (280 hp / 206 kW) Front wheel drive.
GYL10W 2009/01-2015/01 3.5L Petrol 2GRFXE EFI (293 hp / 216 kW) Front wheel drive.
GYL15L 2009/03-2015/09 3.5L Petrol 2GRFXE EFI (277 hp / 204 kW) Four wheel drive (4WD).
GYL15W 2009/03-2015/01 3.5L Petrol 2GRFXE EFI (293 hp / 216 kW) Four-wheel drive (4WD).
GYL16W 2009/03-2015/01 3.5L Petrol 2GRFXE EFI (293 hp / 216 kW) Four-wheel drive (4WD).
TC
Chassis No. Year Configuration
ANT10L 2005/01-2010/07 2.4L Petrol 2AZFE EFI (162 hp / 119 kW) Front wheel drive.
XB
Chassis No. Year Configuration
AZE151L 2010/03-2015/12 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
RAV4
Chassis No. Year Configuration
ACA20L 2000/08-2004/09 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA20L 2000/08-2003/07 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA20L 2005/01-2005/11 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA20L 2000/05-2004/09 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA20L 2004/09-2005/01 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA20W 2003/07-2005/11 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Four-wheel drive (4WD).
ACA20W 2005/01-2005/11 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Four-wheel drive (4WD).
ACA21L 2000/08-2003/07 2.0L Petrol 1AZFE EFI (147 hp / 108 kW) Four-wheel drive (4WD).
ACA21L 2000/08-2004/09 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA21L 2005/01-2005/11 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA21L 2000/05-2004/09 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA21L 2004/09-2005/01 2.0L Petrol 1AZFE EFI (150 hp / 110 kW) Four wheel drive (4WD).
ACA21W 2005/01-2005/11 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ACA21W 2003/07-2005/11 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ACA23L 2003/07-2004/09 2.4L Petrol 2AZFE EFI (161 hp / 118 kW) Four-wheel drive (4WD).
ACA23L 2005/01-2005/11 2.4L Petrol 2AZFE EFI (161 hp / 118 kW) Four-wheel drive (4WD).
ACA23L 2004/09-2005/01 2.4L Petrol 2AZFE EFI (161 hp / 118 kW) Four-wheel drive (4WD).
ACA26L 2000/08-2003/07 2.0L Petrol 1AZFE EFI (148 hp / 109 kW) Front wheel drive.
ACA28L 2003/07-2004/09 2.4L Petrol 2AZFE EFI (161 hp / 118 kW) Front wheel drive.
ACA28L 2004/09-2005/01 2.4L Petrol 2AZFE EFI (161 hp / 118 kW) Front wheel drive.
ACA30L 2005/11-2012/12 2.0L Petrol 1AZFE EFI (152 hp / 112 kW) Four-wheel drive (4WD).
ACA31L 2007/01-2008/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA31W 2005/11-2016/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2008/08 2.4L Petrol 2AZFE EFI (166 hp / 122 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2012/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2008/12-2012/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2008/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2012/12 2.4L Petrol 2AZFE EFI Four wheel drive (4WD).
ACA36W 2005/11-2016/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACA38L 2005/11-2008/08 2.4L Petrol 2AZFE EFI (166 hp / 122 kW) Front wheel drive.
ACA38L 2005/11-2012/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACA38L 2010/03-2012/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
GSA33L 2008/11-2013/01 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Four-wheel drive (4WD).
GSA33L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Four-wheel drive (4WD).
GSA33L 2007/11-2012/12 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Four-wheel drive (4WD).
GSA38L 2009/04-2013/01 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Front wheel drive.
GSA38L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Front wheel drive.
GSA38L 2008/11-2013/01 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Front wheel drive.
GSA38L 2007/11-2012/12 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Front wheel drive.
ZCA25L 2000/08-2000/07 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZCA25L 2003/07-2005/11 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZCA25W 2000/05-2005/11 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZCA26L 2000/08-2000/07 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZCA26L 2003/07-2005/11 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZCA26W 2000/05-2005/11 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
VANGUARD
Chassis No. Year Configuration
ACA33W 2007/08-2013/11 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA38W 2008/08-2013/11 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
GSA33W 2007/08-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GSA33W 2007/08-2012/12 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
AVENSIS VERSO
Chassis No. Year Configuration
ACM20L 2005/01-2005/07 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
ACM20L 2001/05-2004/09 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
IPSUM
Chassis No. Year Configuration
ACM21W 2005/01-2009/12 2.4L Petrol 2AZFE EFI (160 HP / 118 kW) Front wheel drive.
ACM21W 2001/05-2009/12 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Front wheel drive.
ACM26W 2001/05-2009/12 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Four-wheel drive (4WD).
ACM26W 2005/01-2009/12 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Four-wheel drive (4WD).
PREVIA
Chassis No. Year Configuration
ACR30L 2005/01-2006/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACR50L 2006/01-2021/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
GSR50L 2006/11-2007/11 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GSR50L 2007/11-2021/12 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GSR50L 2006/11-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSR50L 2007/11-2021/12 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
ESTIMA
Chassis No. Year Configuration
ACR30W 2000/02-2006/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACR30W 2005/01-2006/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACR40W 2000/02-2006/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACR40W 2005/01-2006/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACR50W 2006/01-2019/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACR55W 2006/01-2019/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
GSR50W 2007/11-2016/05 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSR50W 2006/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSR55W 2007/11-2016/05 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GSR55W 2006/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
MCR30W 1999/12-2006/01 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Front wheel drive.
MCR40W 1999/12-2006/01 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Four-wheel drive (4WD).
OPA
Chassis No. Year Configuration
ACT10 2000/08-2001/12 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Front wheel drive.
ZCT10 2000/04-2005/04 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZCT15 2000/04-2005/04 1.8L Petrol 1ZZFE EFI (136 hp / 100 kW) Four-wheel drive (4WD).
HARRIER
Chassis No. Year Configuration
ACU10W 2000/11-2003/02 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Front wheel drive.
ACU15W 2000/11-2003/02 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Four-wheel drive (4WD).
ACU30W 2005/01-2012/07 2.4L Petrol 2AZFE EFI (160 HP / 118 kW) Front wheel drive.
ACU30W 2003/02-2012/07 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Front wheel drive.
ACU35W 2006/01-2012/07 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Four-wheel drive (4WD).
GSU30W 2006/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSU30W 2007/11-2008/12 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSU31W 2006/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSU31W 2007/11-2008/12 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSU35W 2006/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GSU35W 2007/11-2008/12 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GSU36W 2006/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GSU36W 2007/11-2008/12 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
MCU10W 1997/12-2003/02 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Front wheel drive.
MCU15W 1998/01-2003/02 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Four-wheel drive (4WD).
MCU30W 2003/02-2006/01 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Front wheel drive.
MCU31W 2003/02-2006/01 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Front wheel drive.
MCU35W 2003/02-2006/01 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Four-wheel drive (4WD).
MCU36W 2003/02-2006/01 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Four-wheel drive (4WD).
ZSU60W 2013/12-2020/05 2.0L Petrol 3ZRFAE EFI (151 hp / 111 kW) Front wheel drive.
HIGHLANDER
Chassis No. Year Configuration
ACU20L 2005/01-2007/05 2.4L Petrol 2AZFE EFI (155 hp / 114 kW) Front wheel drive.
ACU25L 2005/01-2007/05 2.4L Petrol 2AZFE EFI (155 hp / 114 kW) Four-wheel drive (4WD).
GSU40L 2009/01-2013/12 3.5L Petrol 2GRFE EFI (270 hp / 199 kW) Front wheel drive.
GSU40L 2007/05-2007/11 3.5L Petrol 2GRFE EFI (270 hp / 199 kW) Front wheel drive.
GSU40L 2007/05-2010/07 3.5L Petrol 2GRFE EFI (270 hp / 199 kW) Front wheel drive.
GSU45L 2009/01-2013/12 3.5L Petrol 2GRFE EFI (270 hp / 199 kW) Four-wheel drive (4WD).
GSU45L 2007/05-2010/07 3.5L Petrol 2GRFE EFI (270 hp / 199 kW) Four-wheel drive (4WD).
GSU45L 2007/05-2007/11 3.5L Petrol 2GRFE EFI (270 hp / 199 kW) Four-wheel drive (4WD).
GSU45L. ENG 2010/07-2013/12 3.5L Petrol 2GRFE EFI (273 hp / 201 kW) Four-wheel drive (4WD).
GSU50L 2013/12-2016/11 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Front wheel drive.
GSU55L 2013/12-2016/11 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Four-wheel drive (4WD).
GSU55L. ENG 2013/12-2016/11 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Four-wheel drive (4WD).
GVU48L 2010/08-2014/02 3.5L Petrol 2GRFXE EFI (231 hp / 170 kW) Four wheel drive (4WD).
KLUGER
Chassis No. Year Configuration
ACU20W 2000/11-2007/05 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Front wheel drive.
ACU25W 2000/11-2007/05 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Four-wheel drive (4WD).
ACU25W 2005/01-2007/05 2.4L Petrol 2AZFE EFI (160 hp / 118 kW) Four-wheel drive (4WD).
MCU20W 2000/11-2007/05 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Front wheel drive.
MCU25W 2000/11-2007/05 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Four-wheel drive (4WD).
CAMRY
Chassis No. Year Configuration
ACV30 2005/01-2006/01 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Front wheel drive.
ACV30 2001/09-2006/01 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Front wheel drive.
ACV30L 2005/01-2006/01 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Front wheel drive.
ACV30L 2001/08-2004/09 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Front wheel drive.
ACV30L 2004/09-2005/01 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Front wheel drive.
ACV30L 2005/01-2006/02 2.4L Petrol 2AZFE EFI (157 hp / 115 kW) Front wheel drive.
ACV30L 2005/01-2006/01 2.4L Petrol 2AZFE EFI (157 hp / 115 kW) Front wheel drive.
ACV31L 2005/01-2006/01 2.0L Petrol 1AZFE EFI (148 hp / 109 kW) Front wheel drive.
ACV31L 2001/08-2004/09 2.0L Petrol 1AZFE EFI (148 hp / 109 kW) Front wheel drive.
ACV31L 2004/09-2005/01 2.0L Petrol 1AZFE EFI (148 hp / 109 kW) Front wheel drive.
ACV35 2005/01-2006/01 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Four-wheel drive (4WD).
ACV35 2001/09-2006/01 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Four-wheel drive (4WD).
ACV40 2006/01-2011/08 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Front wheel drive.
ACV40L 2006/01-2009/01 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
ACV40L 2006/02-2009/03 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
ACV40L 2006/01-2011/09 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Front wheel drive.
ACV45 2006/01-2011/08 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Four-wheel drive (4WD).
AHV40L 2006/01-2011/09 2.4L Petrol 2AZFXE EFI (147 hp / 108 kW) Front wheel drive.
AHV40L 2006/03-2011/08 2.4L Petrol 2AZFXE EFI (147 hp / 108 kW) Front wheel drive.
ASV40L 2009/03-2009/03 2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
GSV40L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Front wheel drive.
GSV40L 2007/11-2011/09 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Front wheel drive.
GSV40L 2006/02-2007/11 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Front wheel drive.
GSV40L 2007/11-2011/09 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Front wheel drive.
GSV40L 2006/01-2007/11 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Front wheel drive.
GSV40L 2007/11-2011/08 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Front wheel drive.
GSV50L 2011/09-2017/06 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
GSV50L.EUR 2011/08-2017/04 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
GSV50L.RUS 2011/08-2018/03 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Front wheel drive.
MCV30L 2001/08-2004/09 3.0L Petrol 1MZFE EFI (186 hp / 137 kW) Front wheel drive.
MCV30L 2004/09-2006/01 3.0L Petrol 1MZFE EFI (186 hp / 137 kW) Front wheel drive.
SOLARA
Chassis No. Year Configuration
ACV30L 2051/04-2008/08 2.4L Petrol 2AZFE EFI (157 hp / 115 kW) Front wheel drive.
AVENSIS WAGON
Chassis No. Year Configuration
ADT250L 2006/05-2008/11 2.0L Diesel 1ADFTV (124 hp / 91 kW) Front wheel drive.
AZT250L 2004/09-2004/11 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
AZT250L 2003/01-2004/09 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
AZT251L 2003/09-2004/09 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT251L 2005/01-2008/11 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT251L 2004/09-2005/01 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
ZZT250L 2003/04-2008/11 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZT251L 2003/04-2008/11 1.8L Petrol 1ZZFE EFI (129 hp / 95 kW) Front wheel drive.
AVENSIS
Chassis No. Year Configuration
ADT250L 2006/05-2008/11 2.0L Diesel 1ADFTV (126 hp / 93 kW) Front wheel drive.
AZT250 2003/07-2008/11 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZT250L 2004/09-2005/01 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
AZT250L 2003/01-2004/09 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
AZT250L 2005/01-2008/11 2.0L Petrol 1AZFE EFI (150 HP / 110 kW) Front wheel drive.
AZT250W 2003/07-2008/11 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZT251 2005/06-2008/11 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT251L 2004/09-2005/01 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT251L 2003/09-2004/09 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT251L 2005/01-2008/11 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT251W 2005/06-2008/11 2.4L Petrol 2AZFSE D-4 (163 hp / 120 kW) Front wheel drive.
AZT255 2003/09-2008/11 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
AZT255W 2003/09-2008/11 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ZZT250L 2003/04-2008/11 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZT251L 2003/04-2008/11 1.8L Petrol 1ZZFE EFI (129 hp / 95 kW) Front wheel drive.
ZZT251L 2003/03-2008/01 1.8L Petrol 1ZZFE EFI (129 hp / 95 kW) Front wheel drive.
ESTIMA HYBRID
Chassis No. Year Configuration
AHR10W 2001/05-2006/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
AHR10W 2005/01-2006/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
AHR20W 2006/06-2019/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
MARK X ZIO
Chassis No. Year Configuration
ANA10 2007/09-2013/01 2.4L Petrol 2AZFE EFI (163 hp / 120 kW) Front wheel drive.
ANA15 2007/09-2013/01 2.4L Petrol 2AZFE EFI (163 hp / 120 kW) Four-wheel drive (4WD).
GGA10 2007/09-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Rear wheel drive.
GGA10 2007/09-2013/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Rear wheel drive.
WISH
Chassis No. Year Configuration
ANE10G 2005/01-2009/03 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANE10G 2003/04-2009/03 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANE11W 2005/01-2009/03 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANE11W 2003/04-2009/03 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ZNE10G 2003/01-2009/03 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Front wheel drive.
ZNE14G 2003/01-2009/03 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
ALPHARD
Chassis No. Year Configuration
ANH10W 2005/01-2008/04 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Front wheel drive.
ANH10W 2002/05-2008/04 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Front wheel drive.
ANH15W 2005/01-2008/04 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Four-wheel drive (4WD).
ANH15W 2002/05-2008/04 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Four-wheel drive (4WD).
ANH20W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ANH25W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
GGH20W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGH25W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
MNH10W 2002/05-2008/04 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Front wheel drive.
MNH15W 2002/05-2008/04 3.0L Petrol 1MZFE EFI (220 HP / 162 kW) Four-wheel drive (4WD).
VELLFIRE
Chassis No. Year Configuration
ANH20W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ANH25W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
GGH20W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGH25W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
ISIS
Chassis No. Year Configuration
ANM10G 2005/01-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANM10G 2004/09-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANM10W 2005/01-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANM10W 2004/09-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ANM15G 2005/01-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ANM15G 2004/09-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ANM15W 2005/01-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ANM15W 2004/09-2009/09 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ZNM10G 2004/09-2009/09 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
ZNM10W 2004/09-2009/09 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
ALPHARD HV
Chassis No. Year Configuration
ATH10W 2003/07-2008/04 2.4L Petrol 2AZFXE EFI (131 hp / 96 kW) Front wheel drive.
COROLLA
Chassis No. Year Configuration
AZE141L 2008/01-2013/08 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
AZE141L 2008/01-2012/08 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
ZRE151L 2008/02-2008/08 1.6L Petrol 1ZRFE EFI (124 hp / 91 kW) Front wheel drive.
ZRE151L 2006/11-2008/08 1.6L Petrol 1ZRFE EFI (124 hp / 91 kW) Front wheel drive.
ZZE120L 2002/01-2006/01 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE120L 2002/01-2004/05 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE120L 2001/11-2007/02 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE120L 2001/01-2006/01 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE120L 2002/08-2007/02 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE120L 2002/09-2006/01 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE121L 2002/01-2006/12 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZE121L 2001/01-2006/01 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZE121L 2002/08-2007/02 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZE121L 2002/09-2006/01 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZE121L 2002/01-2007/02 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZE121L 2002/01-2004/05 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZZE122 2000/08-2006/09 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
ZZE123L 2001/11-2004/09 1.8L Petrol 2ZZGE EFI (170 hp / 125 kW) Front wheel drive.
ZZE123L 2004/09-2007/02 1.8L Petrol 2ZZGE EFI (170 hp / 125 kW) Front wheel drive.
ZZE123L 2001/11-2004/09 1.8L Petrol 2ZZGE EFI (192 hp / 141 kW) Front wheel drive.
ZZE123L 2004/09-2007/02 1.8L Petrol 2ZZGE EFI (192 hp / 141 kW) Front wheel drive.
ZZE124 2002/08-2006/09 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
ZZE150L 2006/11-2008/12 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE150L 2008/02-2009/02 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
MATRIX
Chassis No. Year Configuration
AZE141L 2008/01-2013/08 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
AZE144L 2008/01-2013/08 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Four-wheel drive (4WD).
AZE146L 2008/01-2013/08 2.4L Petrol 2AZFE EFI (158 hp / 116 kW) Front wheel drive.
BLADE
Chassis No. Year Configuration
AZE154H 2006/12-2012/04 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Four-wheel drive (4WD).
AZE156H 2006/12-2012/04 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Front wheel drive.
GRE156H 2007/08-2012/04 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GRE156H 2007/08-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
SAI
Chassis No. Year Configuration
AZK10 2009/12-2017/11 2.4L Petrol 2AZFXE EFI (150 HP / 110 kW) Front wheel drive.
VOXY
Chassis No. Year Configuration
AZR60G 2005/01-2004/08 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Front wheel drive.
AZR60G 2004/08-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZR60G 2005/01-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZR65G 2005/01-2004/08 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Four-wheel drive (4WD).
AZR65G 2005/01-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
AZR65G 2004/08-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ZRR70G 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (143 hp / 105 kW) Front wheel drive.
ZRR70W 2007/06-2014/01 2.0L Petrol 3ZRFAE EFI (158 hp / 116 kW) Front wheel drive.
ZRR70W 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (143 hp / 105 kW) Front wheel drive.
ZRR75G 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (140 hp / 103 kW) Four-wheel drive (4WD).
ZRR75W 2007/06-2014/01 2.0L Petrol 3ZRFAE EFI (143 hp / 105 kW) Four-wheel drive (4WD).
ZRR75W 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (140 hp / 103 kW) Four-wheel drive (4WD).
NOAH
Chassis No. Year Configuration
AZR60G 2005/01-2004/08 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Front wheel drive.
AZR60G 2004/08-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZR60G 2005/01-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZR65G 2005/01-2004/08 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Four-wheel drive (4WD).
AZR65G 2005/01-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
AZR65G 2004/08-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ZRR70G 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (143 hp / 105 kW) Front wheel drive.
ZRR70W 2007/06-2014/01 2.0L Petrol 3ZRFAE EFI (158 hp / 116 kW) Front wheel drive.
ZRR70W 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (143 hp / 105 kW) Front wheel drive.
ZRR75G 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (140 hp / 103 kW) Four-wheel drive (4WD).
ZRR75W 2007/06-2014/01 2.0L Petrol 3ZRFAE EFI (155 hp / 114 kW) Four-wheel drive (4WD).
ZRR75W 2007/06-2010/04 2.0L Petrol 3ZRFE EFI (140 hp / 103 kW) Four-wheel drive (4WD).
PREMIO
Chassis No. Year Configuration
AZT240 2005/01-2007/05 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Front wheel drive.
AZT240 2004/12-2007/05 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Front wheel drive.
ZRT260 2007/05-2010/04 1.8L Petrol 2ZRFE EFI (136 hp / 100 kW) Front wheel drive.
ZRT261 2007/12- 2.0L Petrol 3ZRFAE EFI (158 hp / 116 kW) Front wheel drive.
ZRT265 2007/05-2010/04 1.8L Petrol 2ZRFE EFI (125 hp / 92 kW) Four-wheel drive (4WD).
ZZT240 2001/12-2007/05 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
ZZT245 2001/12-2007/05 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
ALLION
Chassis No. Year Configuration
AZT240 2004/12-2007/05 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
AZT240 2005/01-2007/05 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Front wheel drive.
ZRT260 2007/05-2010/04 1.8L Petrol 2ZRFE EFI (136 hp / 100 kW) Front wheel drive.
ZRT261 2007/12- 2.0L Petrol 3ZRFAE EFI (158 hp / 116 kW) Front wheel drive.
ZRT265 2007/05-2010/04 1.8L Petrol 2ZRFE EFI (125 hp / 92 kW) Four-wheel drive (4WD).
ZZT240 2001/12-2007/05 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
ZZT245 2001/12-2007/05 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
CALDINA
Chassis No. Year Configuration
AZT241W 2005/01-2007/06 2.0L Petrol 1AZFSE D-4 (152 hp / 112 kW) Front wheel drive.
AZT246W 2005/01-2007/06 2.0L Petrol 1AZFSE D-4 (155 hp / 114 kW) Four-wheel drive (4WD).
ZZT241W 2002/09-2007/06 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
VENZA
Chassis No. Year Configuration
GGV10L 2008/11-2016/12 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Front wheel drive.
GGV15L 2008/11-2016/12 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Four-wheel drive (4WD).
SIENNA
Chassis No. Year Configuration
GSL20L 2006/12-2007/11 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Front wheel drive.
GSL20L 2007/11-2009/12 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Front wheel drive.
GSL23L 2006/12-2007/11 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Front wheel drive.
GSL23L 2007/11-2009/12 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Front wheel drive.
GSL25L 2007/11-2009/12 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Four-wheel drive (4WD).
GSL25L 2006/12-2007/11 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Four-wheel drive (4WD).
GSL30L 2010/01-2016/08 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Front wheel drive.
GSL33L 2010/01-2016/08 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Front wheel drive.
GSL35L 2010/01-2016/08 3.5L Petrol 2GRFE EFI (266 hp / 196 kW) Four-wheel drive (4WD).
AVALON
Chassis No. Year Configuration
GSX30L 2005/01-2007/11 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSX30L 2007/11-2012/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSX40L 2012/01-2018/04 3.5L Petrol 2GRFE EFI (268 hp / 197 kW) Front wheel drive.
MCX10 1995/03-2000/02 3.0L Petrol 1MZFE EFI (210 HP / 154 kW) Front wheel drive.
WINDOM
Chassis No. Year Configuration
MCV20 1996/08-2001/07 3.0L Petrol 1MZFE EFI (215 hp / 158 kW) Front wheel drive.
MCV21 1996/08-2001/07 2.5L Petrol 2MZFE EFI (200 HP / 147 kW) Front wheel drive.
MCV30 2001/07-2006/03 3.0L Petrol 1MZFE EFI (215 hp / 158 kW) Front wheel drive.
MARK II QUALIS
Chassis No. Year Configuration
MCV20W 1997/04-2001/12 3.0L Petrol 1MZFE EFI (215 hp / 158 kW) Front wheel drive.
MCV21W 1997/04-2001/12 2.5L Petrol 2MZFE EFI (200 HP / 147 kW) Front wheel drive.
MCV25W 1997/06-2001/12 2.5L Petrol 2MZFE EFI (200 hp / 147 kW) Four wheel drive (4WD).
CAMRY GRACIA
Chassis No. Year Configuration
MCV21 1996/12-2001/09 2.5L Petrol 2MZFE EFI (200 HP / 147 kW) Front wheel drive.
MCV21W 1996/12-2001/09 2.5L Petrol 2MZFE EFI (200 HP / 147 kW) Front wheel drive.
MCV25W 1997/06-2001/09 2.5L Petrol 2MZFE EFI (200 hp / 147 kW) Four wheel drive (4WD).
PRONARD
Chassis No. Year Configuration
MCX20 2000/02-2003/01 3.0L Petrol 1MZFE EFI (215 hp / 158 kW) Front wheel drive.
KLUGER HV
Chassis No. Year Configuration
MHU28W 2005/03-2007/05 3.3L Petrol 3MZFE EFI (211 hp / 155 kW) Four-wheel drive (4WD).
HARRIER HV
Chassis No. Year Configuration
MHU38W 2005/03-2012/06 3.3L Petrol 3MZFE EFI (211 hp / 155 kW) Four-wheel drive (4WD).
CELSIOR
Chassis No. Year Configuration
UCF10 1989/11-1994/01 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Rear wheel drive.
UCF11 1989/11-1994/01 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Rear wheel drive.
UCF20 1994/01-1997/07 4.0L Petrol 1UZFE EFI (280 hp / 206 kW) Rear wheel drive.
UCF21 1994/01-1997/07 4.0L Petrol 1UZFE EFI (265 hp / 195 kW) Rear wheel drive.
CROWN MAJESTA
Chassis No. Year Configuration
UZS141 1991/01-1995/08 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Rear wheel drive.
UZS143 1992/01-1995/08 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Four-wheel drive (4WD).
UZS145 1992/01-1995/08 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Four-wheel drive (4WD).
UZS147 1993/08-1995/08 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Rear wheel drive.
UZS151 1995/08-1997/07 4.0L Petrol 1UZFE EFI (280 hp / 206 kW) Rear wheel drive.
UZS155 1995/11-1997/07 4.0L Petrol 1UZFE EFI (265 hp / 195 kW) Four wheel drive (4WD).
UZS157 1995/08-1997/07 4.0L Petrol 1UZFE EFI (265 hp / 195 kW) Rear wheel drive.
ARISTO
Chassis No. Year Configuration
UZS143 1992/01-1997/08 4.0L Petrol 1UZFE EFI (260 hp / 191 kW) Four-wheel drive (4WD).
SOARER
Chassis No. Year Configuration
UZZ31 1991/05-1997/09 4.0L Petrol 1UZFE EFI (265 hp / 195 kW) Rear wheel drive.
UZZ32 1991/05-1996/08 4.0L Petrol 1UZFE EFI (260 HP / 191 kW) Rear wheel drive.
COROLLA VERSO
Chassis No. Year Configuration
ZNR10L 2004/02-2009/02 1.6L Petrol 3ZZFE EFI (110 hp / 81 kW) Front wheel drive.
ZNR11L 2004/02-2009/02 1.8L Petrol 1ZZFE EFI (129 hp / 95 kW) Front wheel drive.
COROLLA AXIO
Chassis No. Year Configuration
ZRE142 2006/09-2012/04 1.8L Petrol 2ZRFE EFI (136 hp / 100 kW) Front wheel drive.
ZRE144 2006/09-2012/04 1.8L Petrol 2ZRFE EFI (125 hp / 92 kW) Four-wheel drive (4WD).
COROLLA FIELDER
Chassis No. Year Configuration
ZRE142G 2006/09-2012/04 1.8L Petrol 2ZRFE EFI (136 hp / 100 kW) Front wheel drive.
ZRE144G 2006/09-2012/04 1.8L Petrol 2ZRFE EFI (125 hp / 92 kW) Four-wheel drive (4WD).
ZZE122G 2000/08-2006/09 1.8L Petrol 1ZZFE EFI (136 hp / 100 kW) Front wheel drive.
ZZE123G 2000/08-2006/09 1.8L Petrol 2ZZGE EFI (190 HP / 140 kW) Front wheel drive.
ZZE124G 2000/08-2006/09 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
AURIS
Chassis No. Year Configuration
ZRE151L 2007/02-2008/01 1.6L Petrol 1ZRFE EFI (124 hp / 91 kW) Front wheel drive.
ZRE151L 2006/01-2008/08 1.6L Petrol 1ZRFE EFI (124 hp / 91 kW) Front wheel drive.
ZRE152H 2009/01-2009/01 1.8L Petrol 2ZRFAE EFI (147 hp / 108 kW) Front wheel drive.
ZRE152H 2006/01-2009/01 1.8L Petrol 2ZRFE EFI (136 hp / 100 kW) Front wheel drive.
ZRE154H 2009/01-2009/01 1.8L Petrol 2ZRFAE EFI (136 hp / 100 kW) Four wheel drive (4WD).
ZRE154H 2006/01-2009/01 1.8L Petrol 2ZRFE EFI (127 hp / 93 kW) Four-wheel drive (4WD).
ZZE150L 2007/03-2008/12 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
ZZE150L 2007/03-2008/11 1.4L Petrol 4ZZFE EFI (97 hp / 71 kW) Front wheel drive.
COROLLA RUMION
Chassis No. Year Configuration
ZRE152N 2007/01-2009/12 1.8L Petrol 2ZRFE EFI (136 hp / 100 kW) Front wheel drive.
ZRE154N 2007/01-2009/12 1.8L Petrol 2ZRFE EFI (128 hp / 94 kW) Four-wheel drive (4WD).
IST
Chassis No. Year Configuration
ZSP110 2007/07-2010/08 1.8L Petrol 2ZRFE EFI (132 hp / 97 kW) Front wheel drive.
YARIS
Chassis No. Year Configuration
ZSP90L 2006/11-2008/08 1.8L Petrol 2ZRFE EFI (133 hp / 98 kW) Front wheel drive.
ALLEX
Chassis No. Year Configuration
ZZE123 2001/01-2006/09 1.8L Petrol 2ZZGE EFI (190 HP / 140 kW) Front wheel drive.
ZZE124 2002/09-2006/09 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
COROLLA RUNX
Chassis No. Year Configuration
ZZE123 2001/01-2006/09 1.8L Petrol 2ZZGE EFI (190 HP / 140 kW) Front wheel drive.
ZZE124 2002/09-2006/09 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
WILL VS
Chassis No. Year Configuration
ZZE127 2001/04-2004/04 1.8L Petrol 1ZZFE EFI (136 hp / 100 kW) Front wheel drive.
ZZE128 2001/04-2004/04 1.8L Petrol 2ZZGE EFI (190 HP / 140 kW) Front wheel drive.
ZZE129 2001/04-2004/04 1.8L Petrol 1ZZFE EFI (125 hp / 92 kW) Four wheel drive (4WD).
VOLTZ
Chassis No. Year Configuration
ZZE136 2002/05-2004/02 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Front wheel drive.
ZZE137 2002/05-2004/02 1.8L Petrol 2ZZGE EFI (190 HP / 140 kW) Front wheel drive.
ZZE138 2002/05-2004/02 1.8L Petrol 1ZZFE EFI (132 hp / 97 kW) Four-wheel drive (4WD).
CELICA
Chassis No. Year Configuration
ZZT230 1999/08-2006/04 1.8L Petrol 1ZZFE EFI (145 hp / 107 kW) Front wheel drive.
ZZT231 1999/08-2006/04 1.8L Petrol 2ZZGE EFI (190 HP / 140 kW) Front wheel drive.
MR-S
Chassis No. Year Configuration
ZZW30 2002/08-2007/07 1.8L Petrol 1ZZFE EFI (140 HP / 103 kW) Rear wheel drive.
ZZW30 1999/01-2002/08 1.8L Petrol 1ZZFE EFI (140 HP / 103 kW) Rear wheel drive.

Masuma thermostats are manufactured using high-class equipment, taking into account all the requirements for modern car cooling systems. The thermostat is a regulator of liquid temperature in the engine cooling system. It accelerates the warming up of the engine and maintains the thermal mode of operation it needs.

12 month warranty on thermostats. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
WV56TB-82Z
You May Also Like

W44DC-88

Diameter1:44mm Height:18mm Dia...

Click to view

97300790A-82

Diameter1:56mm Height:34mm Dia...

Click to view

WE404-95

Click to view

WC801-105

Click to view

W52TA-82

Diameter1:52mm Height:27mm Dia...

Click to view

94392817B-82

Diameter1:54mm Height:35mm Dia...

Click to view

Message

Thank you!

Your message has been successfully sent. Within 24 hours you will receive a response to your email.

Обратная связь

Есть вопрос по работе сайта, качеству запчастей, гарантии или сотрудничеству? Напишите нам — ответим в течение рабочего дня.

PRODUCT SELECTION

SELECTION OF SPARE PARTS
Quick selection of MASUMA spare parts by car model or part size
BY CAR MODEL
1/4
Choose your car
BY CAR MODEL
1/4
Choose your car
A
ABARTH
ACURA
ALFA ROMEO
ALFA-ROMEO
ALPINA
ALPINE
ASIA-MOTORS
ASTON-MARTIN
AUDI
AUSTIN
AUTO-UNION
AUTOBIANCHI
B
BARKAS
BEDFORD
BENTLEV
BENTLEY
BENZ
BMW
BORGWARD
BUICK
BUICK-SGM
BYD
C
CADILLAC
Changan Automobile
CHERY
CHEVROLET
CHRYSLER
CITROEN
CUPRA
D
DACIA
DAEWOO
DAF
DAFA
DAIHATSU
DAIMLER
DATSUN
DODGE
DONGNAN
DS
F
FERRARI
FIAT
FORD
FORD AUSTRALIA
FORD-USA
FSO
FUSO (MITSUBISHI TRUCKS)
FUSO-MITSUBISHI
G
GEELY
GENESIS
GLEAGLE-GEELY
GMC
GREAT WALL
GREAT-WALL
H
HAVAL
HINO
HOLDEN
HONDA
HUAPU
HUMMER
HYUNDAI
I
ideal
INFINITI
INNOCENTI
ISUZU
IVECO
J
JAGUAR
JEEP
JIANGLING
K
KIA
KTM
L
LADA
LANCIA
LAND ROVER
LAND-ROVER
LDV
LEXUS
LIFAN
LINCOLN
LOTUS
M
MAN
MASERATI
MAYBACH
MAZDA
MEGA
MERCEDES-BENZ
MERCURY
MG
MINI
MITSUBISHI
MORGAN
MORRIS
MOSKVICH
MULTICAR
N
NISSAN
NSU
O
OPEL
P
PEUGEOT
PININFARINA
PLYMOUTH
POLESTAR
PONTIAC
PORSCHE
PROTON
PUCH
R
RENAULT
RENAULT-TRUCKS
ROEWE
ROLLS-ROYCE
ROVER
S
SAAB
SANTANA
SCANIA
SCION
SEAT
SKODA
SMART
SSANGYONG
SUBARU
SUZUK1
SUZUKI
T
TALBOT
Tengshi
TESLA
TOYOTA
TRABANT
TVR
U
UAZ
V
VAUXHALL
VOLKSWAGEN
VOLVO
VW
W
WARTBURG
WEY Wei brand
WIESMANN
WuLing
Z
ZASTAVA
A
ABARTH
ACURA
ALFA ROMEO
ALFA-ROMEO
ALPINA
ALPINE
ASIA-MOTORS
ASTON-MARTIN
AUDI
AUSTIN
AUTO-UNION
AUTOBIANCHI
B
BARKAS
BEDFORD
BENTLEV
BENTLEY
BENZ
BMW
BORGWARD
BUICK
BUICK-SGM
BYD
C
CADILLAC
Changan Automobile
CHERY
CHEVROLET
CHRYSLER
CITROEN
CUPRA
D
DACIA
DAEWOO
DAF
DAFA
DAIHATSU
DAIMLER
DATSUN
DODGE
DONGNAN
DS
F
FERRARI
FIAT
FORD
FORD AUSTRALIA
FORD-USA
FSO
FUSO (MITSUBISHI TRUCKS)
FUSO-MITSUBISHI
G
GEELY
GENESIS
GLEAGLE-GEELY
GMC
GREAT WALL
GREAT-WALL
H
HAVAL
HINO
HOLDEN
HONDA
HUAPU
HUMMER
HYUNDAI
I
ideal
INFINITI
INNOCENTI
ISUZU
IVECO
J
JAGUAR
JEEP
JIANGLING
K
KIA
KTM
L
LADA
LANCIA
LAND ROVER
LAND-ROVER
LDV
LEXUS
LIFAN
LINCOLN
LOTUS
M
MAN
MASERATI
MAYBACH
MAZDA
MEGA
MERCEDES-BENZ
MERCURY
MG
MINI
MITSUBISHI
MORGAN
MORRIS
MOSKVICH
MULTICAR
N
NISSAN
NSU
O
OPEL
P
PEUGEOT
PININFARINA
PLYMOUTH
POLESTAR
PONTIAC
PORSCHE
PROTON
PUCH
R
RENAULT
RENAULT-TRUCKS
ROEWE
ROLLS-ROYCE
ROVER
S
SAAB
SANTANA
SCANIA
SCION
SEAT
SKODA
SMART
SSANGYONG
SUBARU
SUZUK1
SUZUKI
T
TALBOT
Tengshi
TESLA
TOYOTA
TRABANT
TVR
U
UAZ
V
VAUXHALL
VOLKSWAGEN
VOLVO
VW
W
WARTBURG
WEY Wei brand
WIESMANN
WuLing
Z
ZASTAVA
