ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0721-SJ413
48810-60A00
48810-80000
48810-81A00
48810-81A01
48810-83300
CE0625
CE0629R
CES-25
CES-6R
ES-3045RL
SE-7481R
SUZUKI
JIMNY
| Chassis No. | Year | Configuration |
|---|---|---|
| JA11C | 1990/03-1995/01 | 0.7L Petrol F6A EPI (64 hp / 47 kW) Four-wheel drive (4WD). |
| JA11V | 1990/03-1994/04 | 0.7L Petrol F6A EPI (64 hp / 47 kW) Four-wheel drive (4WD). |
| JA12C | 1995/11-1997/04 | 0.7L Petrol F6A EPI (64 hp / 47 kW) Four-wheel drive (4WD). |
| JA12V | 1995/11-1997/04 | 0.7L Petrol F6A EPI (64 hp / 47 kW) Four-wheel drive (4WD). |
| JA12W | 1995/11-1997/04 | 0.7L Petrol F6A EPI (64 hp / 47 kW) Four-wheel drive (4WD). |
| JA22W | 1995/11-1997/04 | 0.7L Gasoline K6AT EPI (64 hp / 47 kW) Four-wheel drive (4WD). |
JIMNY SIERRA
| Chassis No. | Year | Configuration |
|---|---|---|
| JB31W | 1993/05-1995/11 | 1.3L Gasoline G13B EPI (70 hp / 51 kW) Four-wheel drive (4WD). |
| JB32W | 1995/11-1997/12 | 1.3L Gasoline G13B EPI (85 hp / 63 kW) Four-wheel drive (4WD). |
VITARA
| Chassis No. | Year | Configuration |
|---|---|---|
| SE416-2. 1600cc. 3D. G16A. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16A Carburetor (80 HP / 59 kW) Four wheel drive (4WD). |
| SE416-2. 1600cc. 3D. G16A. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD). |
| SE416-2. 1600cc. 3D. G16A. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16A Carburetor (80 HP / 59 kW) Four wheel drive (4WD). |
| SE416-2. 1600cc. 3D. G16A. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD). |
| SE416-2. 1600cc. 5D. G16B. 4WD. | 1988/01-1998/12 | 1.6L Gasoline G16B MPI (96 hp / 71 kW) Four-wheel drive (4WD). |
| SE416-3. 1600cc. 3D. G16A. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16A Carburetor (80 HP / 59 kW) Four wheel drive (4WD). |
| SE416-3. 1600cc. 3D. G16A. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD). |
| SE416-3. 1600cc. 3D. G16A. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16A Carburetor (80 HP / 59 kW) Four wheel drive (4WD). |
| SE416-3. 1600cc. 3D. G16A. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD). |
| SE416-3. 1600cc. 3D. G16B. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16B MPI (96 hp / 71 kW) Four-wheel drive (4WD). |
| SE416-3. 1600cc. 3D. G16B. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16B MPI (96 hp / 71 kW) Four-wheel drive (4WD). |
| SE416-3. 1600cc. 5D. G16B. 4WD. | 1988/01-1998/12 | 1.6L Gasoline G16B MPI (96 hp / 71 kW) Four-wheel drive (4WD). |
| SE416. 1600cc. 3D. G16A. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16A Carburetor (80 HP / 59 kW) Four wheel drive (4WD). |
| SE416. 1600cc. 3D. G16A. 4WD. conv. | 1988/01-1998/12 | 1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD). |
| SE416. 1600cc. 3D. G16A. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16A Carburetor (80 HP / 59 kW) Four wheel drive (4WD). |
| SE416. 1600cc. 3D. G16A. 4WD. Van | 1988/01-1998/12 | 1.6L Gasoline G16A SPI (80 HP / 59 kW) Four-wheel drive (4WD). |
ESCUDO
| Chassis No. | Year | Configuration |
|---|---|---|
| TA01R | 1990/08-1990/08 | 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD). |
| TA01R | 1988/05-1990/08 | 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD). |
| TA01V | 1988/05-1990/08 | 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD). |
| TA01W | 1988/05-1990/08 | 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD). |
| TA01W | 1990/08-1990/08 | 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD). |
| TD01W | 1996/01-1994/01 | 1.6L Gasoline G16A EPI (100 HP / 74 kW) Four-wheel drive (4WD). |
Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.
Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.
Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.
| MASUMA No. | ||||||
|---|---|---|---|---|---|---|

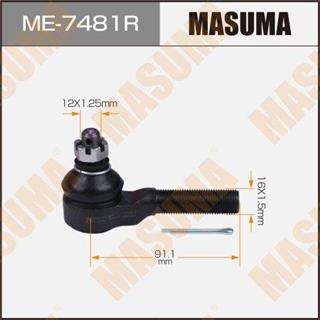

| ME-7481R |
