MASUMA TIE ROD END
VENDOR CODE: ME-T531L

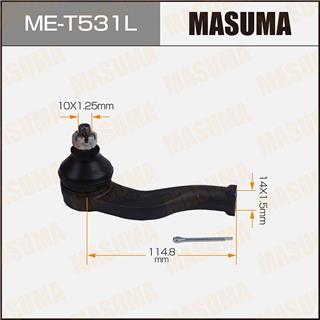

Remark: External Thread x Female Thread:10x1.25mm External Thread x Female Thread:14x1.5mm Center Distance:114.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0121-QNC20LH
45047-B9060
45047-B9150
73432
C4387L
CE0829L
CET-214L
SE-T531L
BOON
Chassis No. Year Configuration
M300S 2006/04-2010/02 1.0L Petrol 1KR-FE EFI (68 HP / 50 kW) Front wheel drive.
M300S 2004/05-2006/04 1.0L Petrol 1KR-FE EFI (68 HP / 50 kW) Front wheel drive.
M301S 2006/04-2010/02 1.3L Gasoline K3-VE EFI (86 hp / 63 kW) Front wheel drive.
M301S 2004/05-2006/04 1.3L Gasoline K3-VE EFI (86 hp / 63 kW) Front wheel drive.
M310S 2006/04-2010/02 1.0L Petrol 1KR-FE EFI (68 hp / 50 kW) Four-wheel drive (4WD).
M310S 2004/05-2006/04 1.0L Petrol 1KR-FE EFI (68 hp / 50 kW) Four-wheel drive (4WD).
M312S 2006/04-2010/02 0.9L Gasoline KJ-VET EFI (133 hp / 98 kW) Four-wheel drive (4WD).
M312S 2006/03-2006/04 0.9L Gasoline KJ-VET EFI (133 hp / 98 kW) Four-wheel drive (4WD).
M600S 2010/02-2016/04 1.0L Petrol 1KR-FE EFI (68 HP / 50 kW) Front wheel drive.
M601S 2010/02-2016/04 1.3L Petrol 1NR-FE EFI (95 hp / 70 kW) Front wheel drive.
M610S 2010/02-2016/04 1.0L Petrol 1KR-FE EFI (72 hp / 53 kW) Four-wheel drive (4WD).
M700S 2016/04- 1.0L Petrol 1KR-FE EFI (71 hp / 52 kW) Front wheel drive.
M710S 2016/04- 1.0L Petrol 1KR-FE EFI (71 hp / 52 kW) Four-wheel drive (4WD).
COO
Chassis No. Year Configuration
M401S 2006/04-2013/01 1.3L Gasoline K3-VE EFI (92 HP / 68 kW) Front wheel drive.
M402S 2006/04-2013/01 1.5L Petrol 3SZ-VE EFI (105 hp / 77 kW) Front wheel drive.
M411S 2006/04-2013/01 1.3L Gasoline K3-VE EFI (92 hp / 68 kW) Four-wheel drive (4WD).
DEX
Chassis No. Year Configuration
M401F 2008/01-2012/11 1.3L Gasoline K3-VE EGI (92 hp / 68 kW) Front wheel drive.
M411F 2008/01-2012/11 1.3L Gasoline K3-VE EGI (92 hp / 68 kW) Four-wheel drive (4WD).
JUSTY
Chassis No. Year Configuration
M900F 2016/11- 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Rear wheel drive.
M900F 2016/11-2020/09 1.0L Petrol 1KR-VET EFI (98 HP / 72 kW) Front wheel drive.
M910F 2016/11- 1.0L Petrol 1KR-FE EFI (69 hp / 51 kW) Four-wheel drive (4WD).
PASSO
Chassis No. Year Configuration
KGC10 2005/11-2006/04 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Front wheel drive.
KGC10 2006/04-2010/02 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Front wheel drive.
KGC15 2005/11-2006/04 1.0L Petrol 1KR-FE EFI (92 hp / 68 kW) Four-wheel drive (4WD).
KGC15 2006/04-2010/02 1.0L Petrol 1KR-FE EFI (92 hp / 68 kW) Four-wheel drive (4WD).
KGC30 2010/02-2016/04 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Front wheel drive.
KGC35 2010/02-2016/04 1.0L Petrol 1KR-FE EFI (69 hp / 51 kW) Four-wheel drive (4WD).
M700A 2016/04- 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Front wheel drive.
M710A 2016/04- 1.0L Petrol 1KR-FE EFI (69 hp / 51 kW) Four-wheel drive (4WD).
NGC30 2010/02-2016/04 1.3L Petrol 1NRFE EFI (95 hp / 70 kW) Front wheel drive.
QNC10 2005/11-2006/04 1.3L Gasoline K3VE EFI (90 HP / 66 kW) Front wheel drive.
QNC10 2006/04-2010/02 1.3L Gasoline K3VE EFI (90 HP / 66 kW) Front wheel drive.
ROOMY
Chassis No. Year Configuration
M900A 2016/11- 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Front wheel drive.
M900A 2016/11- 1.0L Petrol 1KR-VET EFI (98 HP / 72 kW) Front wheel drive.
M910A 2016/11- 1.0L Petrol 1KR-FE EFI (69 hp / 51 kW) Four-wheel drive (4WD).
TANK
Chassis No. Year Configuration
M900A 2016/11-2020/09 1.0L Petrol 1KR-FE EFI (69 HP / 51 kW) Front wheel drive.
M900A 2016/11-2020/09 1.0L Petrol 1KR-VET EFI (98 HP / 72 kW) Front wheel drive.
M910A 2016/11-2020/09 1.0L Petrol 1KR-FE EFI (69 hp / 51 kW) Four-wheel drive (4WD).
BB
Chassis No. Year Configuration
QNC20 2006/04-2016/07 1.3L Gasoline K3VE EFI (92 hp / 68 kW) Front wheel drive.
QNC20 2006/01-2006/04 1.3L Gasoline K3VE EFI (92 hp / 68 kW) Front wheel drive.
QNC21 2006/04-2016/07 1.5L Petrol 3SZVE EFI (109 HP / 80 kW) Front wheel drive.
QNC21 2006/01-2006/04 1.5L Petrol 3SZVE EFI (109 HP / 80 kW) Front wheel drive.
QNC25 2006/01-2006/04 1.3L Gasoline K3VE EFI (92 hp / 68 kW) Four-wheel drive (4WD).
QNC25 2006/04-2014/09 1.3L Gasoline K3VE EFI (92 hp / 68 kW) Four-wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
ME-T531L JTE505
