MASUMA TIE ROD END
VENDOR CODE: ME-3753L

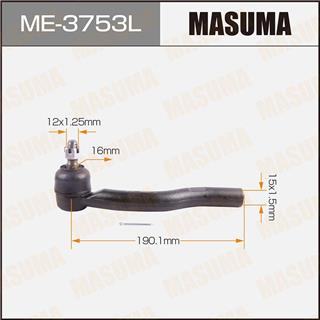

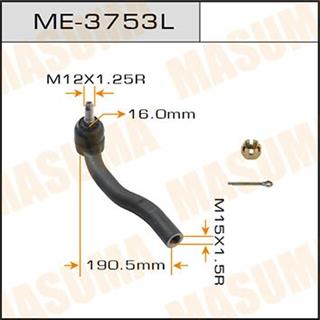

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:16mm External Thread x Female Thread:15x1.5mm Center Distance:190.1mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0121-ACV40LH
45470-09040
45470-09050
45470-09080
45470-09100
45470-09160
45470-39225
53540-1148G
A1195
C4295L
CE0738
CE0769
CET-122
CET-154
ALTIS
Chassis No. Year Configuration
ACV40N 2006/01-2010/03 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Front wheel drive.
ACV45N 2006/01-2010/03 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Four-wheel drive (4WD).
ES350
Chassis No. Year Configuration
GSV40L 2006/03-2012/06 3.5L Petrol 2GRFE EFI (277 hp / 204 kW) Front wheel drive.
ES330
Chassis No. Year Configuration
MCV31L 2003/07-2006/03 3.3L Petrol 3MZFE EFI (228 hp / 168 kW) Front wheel drive.
CAMRY
Chassis No. Year Configuration
ACV30 2003/07-2006/01 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Front wheel drive.
ACV30L 2003/07-2006/01 2.4L Petrol 2AZFE EFI (152 hp / 112 kW) Front wheel drive.
ACV31L 2003/07-2006/01 2.0L Petrol 1AZFE EFI (148 hp / 109 kW) Front wheel drive.
ACV35 2003/07-2006/01 2.4L Petrol 2AZFE EFI (159 hp / 117 kW) Four-wheel drive (4WD).
ACV40 2006/01-2011/08 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Front wheel drive.
ACV40L 2006/01-2011/09 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Front wheel drive.
ACV45 2006/01-2011/08 2.4L Petrol 2AZFE EFI (167 hp / 123 kW) Four-wheel drive (4WD).
GSV40L 2006/01-2011/09 3.5L Petrol 2GRFE EFI (249 hp / 183 kW) Front wheel drive.
MCV30L 2003/07-2006/01 3.0L Petrol 1MZFE EFI (186 hp / 137 kW) Front wheel drive.
WINDOM
Chassis No. Year Configuration
MCV30 2003/07-2006/03 3.0L Petrol 1MZFE EFI (215 hp / 158 kW) Front wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. 555 No. TRW No.
ME-3753L SE-3753L JTE7700
