MASUMA TIE ROD END
VENDOR CODE: ME-4811

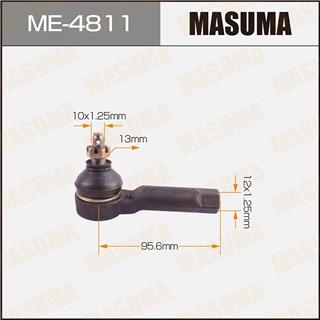

Remark: External Thread x Female Thread:10x1.25mm Taper Diameter:13mm External Thread x Female Thread:12x1.25mm Center Distance:95.6mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
48520-41B25
48520-4F125
48520-6F625
C4019LR
CE0595
CEN-79
J4821024
SE-4811
MARCH
Chassis No. Year Configuration
AK11 1999/11-2002/03 1.3L Petrol CGA3DE EGI (73 hp / 54 kW) Front wheel drive.
ANK11 1999/11-2002/03 1.3L Petrol CGA3DE EGI (82 hp / 60 kW) Four-wheel drive (4WD).
FHK11 1997/05-1997/12 1.3L Petrol CG13DE EGI (75 hp / 55 kW) Front wheel drive.
HK11 1992/01-1999/11 1.3L Petrol CG13DE EGI (75 hp / 55 kW) Front wheel drive.
K11 1992/01-2002/03 1.0L Petrol CG10DE EGI (54 hp / 40 kW) Front wheel drive.
MICRA
Chassis No. Year Configuration
K11E. 1000cc. 3D. CG10DE 1992/08-2002/11 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K11E. 1000cc. 3D. CG10DE 1992/08-1998/02 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K11E. 1000cc. 3D. CG10DE 1992/08-2000/07 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K11E. 1000cc. 5D. CG10DE 1992/08-1998/02 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K11E. 1000cc. 5D. CG10DE 1992/08-2002/11 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K11E. 1000cc. 5D. CG10DE 1992/08-2000/07 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K11E. 1300cc. 3D. CG13DE 1992/08-2000/07 1.3L Petrol CG13DE EGI (75 hp / 55 kW) Front wheel drive.
K11E. 1300cc. 3D. CG13DE 1992/08-1998/02 1.3L Petrol CG13DE EGI (75 hp / 55 kW) Front wheel drive.
K11E. 1300cc. 3D. CG13DE 1992/08-2000/07 1.3L Petrol CG13DE EGI (82 hp / 60 kW) Front wheel drive.
K11E. 1300cc. 5D. CG13DE 1992/08-1998/02 1.3L Petrol CG13DE EGI (82 hp / 60 kW) Front wheel drive.
K11E. 1300cc. 5D. CG13DE 1992/08-2000/07 1.3L Petrol CG13DE EGI (82 hp / 60 kW) Front wheel drive.
K11E. 1400cc. 3D. CGA3DE 2000/07-2002/11 1.4L Petrol CGA3DE EGI (82 hp / 60 kW) Front wheel drive.
K11E. 1400cc. 5D. CGA3DE 2000/07-2002/11 1.4L Petrol CGA3DE EGI (82 hp / 60 kW) Front wheel drive.
K11E. 1500cc. 3D. TD15. Diz. 1998/02-2002/11 1.5L Diesel TD15 (57 hp / 42 kW) Front wheel drive.
K11E. 1500cc. 5D. TD15. Diz. 1998/02-2002/11 1.5L Diesel TD15 (57 hp / 42 kW) Front wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
ME-4811 JTE263
