MASUMA TIE ROD END
VENDOR CODE: ME-4951L

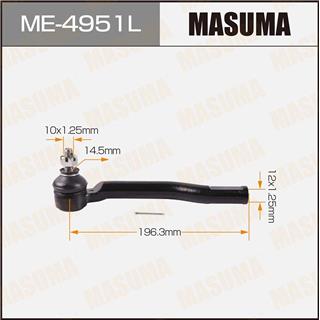

Remark: External Thread x Female Thread:10x1.25mm Taper Diameter:14.5mm External Thread x Female Thread:12x1.25mm Center Distance:196.3mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0221-C11LH
0221-K12RH
41135
48527-1U61A
48640-3U025
48640-AX025
48647-1U61A
C4129L
CE0508
CE0547L
CEN-116
CEN-156L
D8640-3U025
D8640-EW00A
ET22016L
ME-4951L
SE-4951L
MARCH
Chassis No. Year Configuration
AK12 2002/05-2005/08 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
AK12 2005/08-2010/07 1.2L Petrol CR12DE EGI (65 hp / 48 kW) Front wheel drive.
BNK12 2005/08-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Four-wheel drive (4WD).
YK12 2005/08-2010/07 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
CUBE CUBIC
Chassis No. Year Configuration
BGZ11 2003/09-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
YGNZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
YGZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
CUBE
Chassis No. Year Configuration
BNZ11 2003/05-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Four-wheel drive (4WD).
BZ11 2003/05-2008/11 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
YZ11 2005/05-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
Z12 2008/11-2020/03 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
Z12. 1500cc. K9K. turbo. Diz. 2009/01-2021/12 1.5L Diesel K9K (110 hp / 81 kW) Front wheel drive.
Z12. 1600cc. HR16DE 2009/08-2021/12 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
TIIDA
Chassis No. Year Configuration
C11 2004/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
C11X. 1500cc. 5D. K9K. turbo. Diz. 2007/03-2010/03 1.5L Diesel K9K (106 hp / 78 kW) Front wheel drive.
C11X. 1600cc. 5D. HR16DE 2007/03-2014/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
C11X. 1800cc. 5D. MR18DE 2007/03-2014/07 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
JC11 2005/01-2010/08 1.8L Petrol MR18DE EGI (124 hp / 91 kW) Front wheel drive.
NC11 2004/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
SC11X. 1500cc. K9K. turbo. Diz. 2007/02-2010/03 1.5L Diesel K9K (106 hp / 78 kW) Front wheel drive.
SC11X. 1600cc. HR16DE 2007/02-2021/12 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
SC11X. 1800cc. MR18DE 2007/02-2021/12 1.8L Petrol MR18DE EGI (126 hp / 93 kW) Front wheel drive.
NOTE
Chassis No. Year Configuration
E11 2005/01-2012/09 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
E11E. 1400cc. CR14DE 2006/01-2013/08 1.4L Petrol CR14DE EGI (88 hp / 65 kW) Front wheel drive.
E11E. 1500cc. K9K. turbo. Diz. 2006/01-2013/08 1.5L Diesel K9K (103 hp / 76 kW) Front wheel drive.
E11E. 1600cc. HR16DE 2006/01-2013/08 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
NE11 2005/01-2012/09 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
ZE11 2008/01-2012/09 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
BLUEBIRD SYLPHY
Chassis No. Year Configuration
G11 2005/12-2012/12 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
KG11 2005/12-2012/12 2.0L Gasoline MR20DE EGI (147 HP / 108 kW) Front wheel drive.
NG11 2005/12-2012/12 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
MICRA
Chassis No. Year Configuration
K12E. 1200cc. 3D. CG12DE 2007/09-2010/07 1.2L Petrol CG12DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1200cc. 3D. CR12DE 2007/09-2010/07 1.2L Petrol CR12DE EGI (90 HP / 66 kW) Front wheel drive.
K12E. 1200cc. 5D. CG12DE 2007/09-2010/07 1.2L Petrol CG12DE EGI (59 hp / 80 kW) Front wheel drive.
K12E. 1200cc. 5D. CR12DE 2002/11-2010/07 1.2L Petrol CR12DE EGI (80 HP / 109 kW) Front wheel drive.
K12E. 1200cc. 5D. CR12DE 2007/09-2010/07 1.2L Petrol CR12DE EGI (81 hp / 110 kW) Front wheel drive.
K12E. 1400cc. 3D. CR14DE 2007/09-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1400cc. 5D. CR14DE 2007/09-2010/07 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.60KW 2007/09-2010/07 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.63KW 2007/09-2010/07 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.60KW 2007/09-2010/07 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.63KW 2007/09-2010/07 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
K12E. 1600cc. 3D. HR16DE 2007/09-2010/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
K12E. 1600cc. 5D. HR16DE 2007/09-2010/07 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
NV200
Chassis No. Year Configuration
M20 2009/05- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
VM20 2009/05- 1.6L Petrol HR16DE EGI (110 HP / 81 kW) Front wheel drive.
WINGROAD
Chassis No. Year Configuration
NY12 2005/11-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Four wheel drive (4WD).
Y12 2005/11-2008/11 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
TIIDA LATIO
Chassis No. Year Configuration
SC11 2008/09-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
SC11 2004/01-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Front wheel drive.
SJC11 2005/01-2010/08 1.8L Petrol MR18DE EGI (124 hp / 91 kW) Front wheel drive.
SNC11 2004/01-2012/06 1.5L Petrol HR15DE EGI (109 hp / 80 kW) Four-wheel drive (4WD).
AD
Chassis No. Year Configuration
VY12 2006/12-2016/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.
AD EXPERT
Chassis No. Year Configuration
VY12 2006/12-2016/12 1.5L Petrol HR15DE EGI (116 hp / 85 kW) Front wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

TRW No.
JTE7604
