MASUMA TIE ROD END
VENDOR CODE: ME-9802L

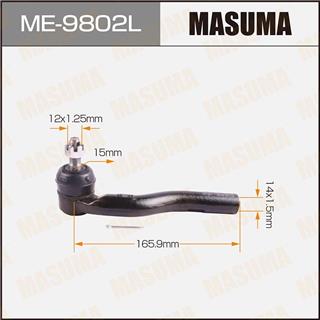

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:15mm External Thread x Female Thread:14x1.5mm Center Distance:165.9mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0121-KR52LH
45047-29115
C4386L
CE0792
CET-177
SE-T201L
LITEACE
Chassis No. Year Configuration
CM75 2002/08-2004/08 2.2L Diesel 3CE EFI (79 HP / 58 kW) Rear wheel drive.
CM80 1999/06-2004/08 2.2L Diesel 3CE EFI (79 hp / 58 kW) Four-wheel drive (4WD).
CM85 1999/06-2004/08 2.2L Diesel 3CE EFI (79 hp / 58 kW) Four-wheel drive (4WD).
CR51V 1996/11-1998/12 2.0L Diesel 2C (73 hp / 54 kW) Four-wheel drive (4WD).
CR52V 1998/12-2004/07 2.2L Diesel 3CE EFI (79 hp / 58 kW) Four-wheel drive (4WD).
KM75 2002/08-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
KM80 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KM85 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KR52V 2004/12-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
TOWNACE
Chassis No. Year Configuration
CM75 2002/08-2004/08 2.2L Diesel 3CE EFI (79 HP / 58 kW) Rear wheel drive.
CM80 1999/06-2004/08 2.2L Diesel 3CE EFI (79 hp / 58 kW) Four-wheel drive (4WD).
CM85 1999/06-2004/08 2.2L Diesel 3CE EFI (79 hp / 58 kW) Four-wheel drive (4WD).
CR51V 1996/11-1998/12 2.0L Diesel 2C (73 hp / 54 kW) Four-wheel drive (4WD).
CR52V 1998/12-2004/07 2.2L Diesel 3CE EFI (79 hp / 58 kW) Four-wheel drive (4WD).
KM75 2002/08-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Rear wheel drive.
KM80 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KM85 1999/06-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
KR52V 2004/12-2007/08 1.8L Petrol 7KE (82 hp / 60 kW) Four-wheel drive (4WD).
TOWNACE NOAH
Chassis No. Year Configuration
CR50G 1996/01-1998/12 2.2L Diesel 3CT (90 hp / 66 kW) Four-wheel drive (4WD).
CR50G 1998/12-2001/11 2.2L Diesel 3CTE EFI (92 hp / 68 kW) Four-wheel drive (4WD).
SR50G 1996/01-2001/11 2.0L Petrol 3SFE EFI (130 hp / 96 kW) Four-wheel drive (4WD).
LITEACE NOAH
Chassis No. Year Configuration
CR50G 1996/01-1998/12 2.2L Diesel 3CT (91 hp / 67 kW) Four-wheel drive (4WD).
CR50G 1998/12-2001/11 2.2L Diesel 3CTE EFI (94 hp / 69 kW) Four-wheel drive (4WD).
SR50G 1996/01-2001/11 2.0L Petrol 3SFE EFI (130 hp / 96 kW) Four-wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
ME-9802L
