MASUMA TIE ROD END
VENDOR CODE: ME-9806

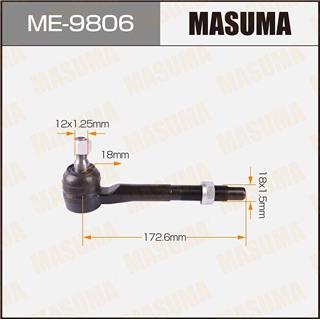

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:18mm External Thread x Female Thread:18x1.5mm Center Distance:172.6mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
014012785
1014030805
48710-42020
B5028LR
ME-9806
RAV4
Chassis No. Year Configuration
ACA30L 2005/11-2010/08 2.0L Petrol 1AZFE EFI (152 hp / 112 kW) Four-wheel drive (4WD).
ACA31L 2007/01-2008/12 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA31W 2005/11-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2008/08 2.4L Petrol 2AZFE EFI (166 hp / 122 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2008/12-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2008/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA33L 2005/11-2010/08 2.4L Petrol 2AZFE EFI Four wheel drive (4WD).
ACA36W 2005/11-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACA38L 2005/11-2008/08 2.4L Petrol 2AZFE EFI (166 hp / 122 kW) Front wheel drive.
ACA38L 2005/11-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACA38L 2010/03-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ALA30L 2005/11-2010/08 2.2L Diesel 2ADFHV (177 hp / 130 kW) Four wheel drive (4WD).
ALA30L 2005/11-2010/08 2.2L Diesel 2ADFTV (150 HP / 110 kW) Four-wheel drive (4WD).
ALA35L 2009/08-2010/08 2.2L Diesel 2ADFTV (136 hp / 100 kW) Front wheel drive.
ASA38L 2008/08-2010/08 2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
GSA33L 2006/01-2010/08 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Four-wheel drive (4WD).
GSA38L 2006/01-2010/08 3.5L Petrol 2GRFE EFI (269 hp / 198 kW) Front wheel drive.
ZSA30L 2008/12-2010/08 2.0L Petrol 3ZRFAE EFI (158 hp / 116 kW) Four-wheel drive (4WD).
ZSA35L 2008/12-2010/08 2.0L Petrol 3ZRFAE EFI (158 hp / 116 kW) Front wheel drive.
VANGUARD
Chassis No. Year Configuration
ACA33W 2007/08-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ACA38W 2008/08-2010/08 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
GSA33W 2007/08-2010/08 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.
