Full Product Catalog

MASUMA TIE ROD END
VENDOR CODE: ME-9817R

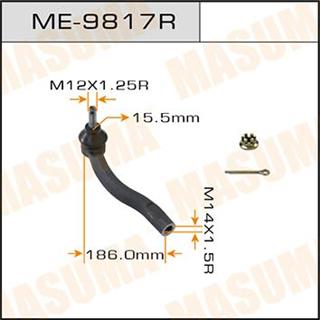

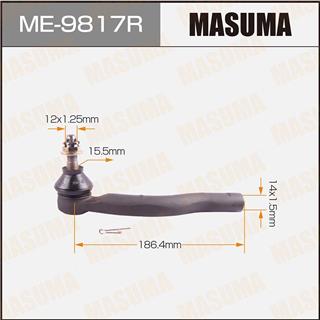

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:15.5mm External Thread x Female Thread:14x1.5mm Center Distance:186.4mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
4504649225
C4435R
CE0807
CET-192
SE-T521R
CT200H
Chassis No. Year Configuration
ZWA10 2010/12- 1.8L Petrol 2ZRFXE EFI (136 hp / 100 kW) Front wheel drive.
ZWA10L 2010/12- 1.8L Petrol 2ZRFXE EFI (136 hp / 100 kW) Front wheel drive.
ZWA10L 2010/12-2013/12 1.8L Petrol 2ZRFXE EFI (136 hp / 100 kW) Front wheel drive.
ZWA10L 2010/12-2013/12 1.8L Petrol 5ZRFXE EFI (99 hp / 73 kW) Front wheel drive.
PRIUS
Chassis No. Year Configuration
ZVW30 2009/04-2015/11 1.8L Petrol 2ZRFXE EFI (99 hp / 73 kW) Front wheel drive.
ZVW30L 2009/04-2015/11 1.8L Petrol 2ZRFXE EFI (178 hp / 132 kW) Front wheel drive.
ZVW30L 2009/04-2015/11 1.8L Petrol 2ZRFXE EFI (98 hp / 72 kW) Front wheel drive.
ZVW35L 2012/05-2016/04 1.8L Petrol 2ZRFXE EFI (98 hp / 72 kW) Front wheel drive.
ZVW35L 2009/12-2010/01 1.8L Petrol 2ZRFXE EFI (98 hp / 72 kW) Front wheel drive.
ZVW35L 2009/12-2010/01 1.8L Petrol 2ZRFXE EFI (99 hp / 73 kW) Front wheel drive.
PRIUS PHV
Chassis No. Year Configuration
ZVW35 2009/12-2016/04 1.8L Petrol 2ZRFXE EFI (99 hp / 73 kW) Front wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
ME-9817R JTE7813
