MASUMA TIE ROD END
VENDOR CODE: ME-9881

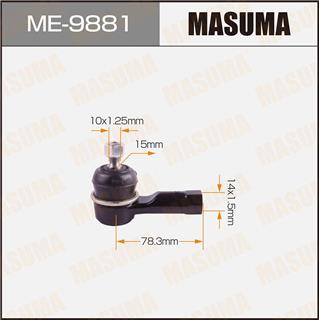

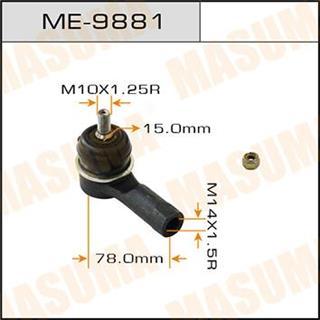

Remark: External Thread x Female Thread:10x1.25mm Taper Diameter:15mm External Thread x Female Thread:14x1.5mm Center Distance:78.3mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
4422A002
4422A072
MR548285
OUTLANDER
Chassis No. Year Configuration
CU2W.2WD.EUR 2003/02-2007/09 2.0L Petrol 4G63 MPI (136 hp / 100 kW) Front wheel drive.
CU2W.4WD.EUR 2003/02-2007/09 2.0L Petrol 4G63 MPI (136 hp / 100 kW) Four-wheel drive (4WD).
CU2W.TURBO.4WD.EUR 2004/07-2007/09 2.0L Petrol 4G63T MPI (201 hp / 148 kW) Four-wheel drive (4WD).
CU5W.4WD.EUR 2003/09-2007/09 2.4L Petrol 4G69 MPI (160 hp / 118 kW) Four-wheel drive (4WD).
LANCER
Chassis No. Year Configuration
CY2A.2WD.EUR 2007/06-2007/08 1.5L Petrol 4A91 MPI (109 HP / 80 kW) Front wheel drive.
CY2A.2WD.RUS 2007/03-2007/08 1.5L Petrol 4A91 MPI (109 HP / 80 kW) Front wheel drive.
GRANDIS
Chassis No. Year Configuration
NA4W 2004/01-2010/12 2.4L Petrol 4G69 MPI (177 hp / 130 kW) Front wheel drive.
NA8W 2007/06-2010/04 2.0L BWC Diesel (140 hp / 103 kW) Front wheel drive.
NA8W 2005/06-2010/04 2.0L Diesel BSY (136 hp / 100 kW) Front wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
ME-9881
