MASUMA TIE ROD END
VENDOR CODE: ME-9927L

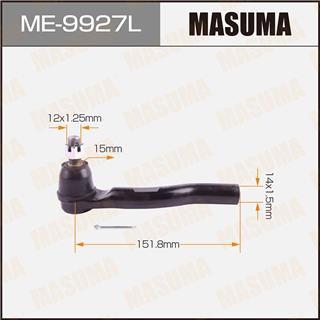

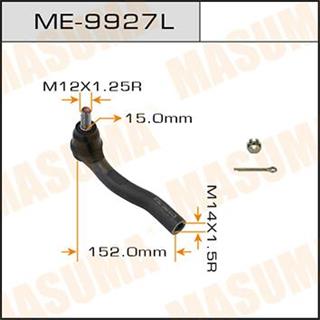

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:15mm External Thread x Female Thread:14x1.5mm Center Distance:151.8mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
231087
53560-T0A-A01
53560T0AA11
53560-T0A-A12
53560-T1G-E01
53560-T1W-A01
850040140
CE0237
CEHO-50
ET28018L
HO-ES-14809
L40140
PARTSSTE-2062
SE-H501L
V26-0202
CR-V
Chassis No. Year Configuration
2000cc. R.M. Rus. R20A. 4WD 2013/01-2013/12 2.0L Gasoline R20A PGM-FI (150 HP / 110 kW) Four wheel drive (4WD).
2000cc. R.M. Rus. R20A. 4WD 2015/01-2017/12 2.0L Gasoline R20A PGM-FI (150 HP / 110 kW) Four wheel drive (4WD).
2000cc. R.M. Rus. R20A. 4WD 2014/01-2014/12 2.0L Gasoline R20A PGM-FI (150 HP / 110 kW) Four wheel drive (4WD).
2000cc. RW. Rus. R20A. 4WD 2017/08- 2.0L Gasoline R20A PGM-FI (150 HP / 110 kW) Front wheel drive.
2400cc. R.M. K.R. Rus. 2.4. K24Z. 4WD 2015/01-2015/12 2.4L Gasoline K24Z PGM-FI (190 hp / 140 kW) Four-wheel drive (4WD).
2400cc. R.M. K.R. Rus. 2.4. K24Z. 4WD 2013/01-2014/12 2.4L Gasoline K24Z PGM-FI (190 hp / 140 kW) Four-wheel drive (4WD).
RM1 2011/12-2012/01 DBA-RM1 2.0L Gasoline R20A PGM-FI (150 HP / 110 kW) Front wheel drive.
RM1 2012/01-2016/08 DBA-RM1 2.0L Gasoline R20A PGM-FI (150 HP / 110 kW) Front wheel drive.
RM4 2011/12-2012/01 DBA-RM4 2.4L Gasoline K24A PGM-FI (190 HP / 140 kW) Four wheel drive (4WD).
RM4 2012/01-2016/08 DBA-RM4 2.4L Gasoline K24A PGM-FI (190 HP / 140 kW) Four wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
ME-9927L JTE7818
