MASUMA TIE ROD END
VENDOR CODE: ME-C1002R

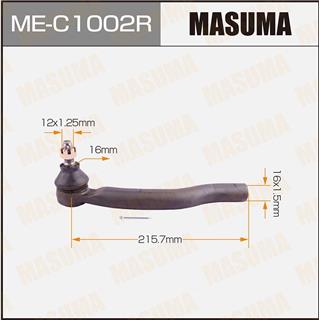

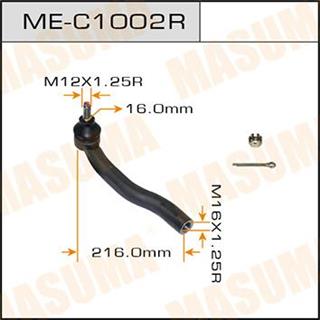

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:16mm External Thread x Female Thread:16x1.5mm Center Distance:215.7mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
4504629515
CE0803
CET-188
ME-C1002R
SET481R
PREVIA
Chassis No. Year Configuration
ACR50L 2006/01- 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
GSR50L 2006/11- 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GSR50L 2006/11- 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
ESTIMA
Chassis No. Year Configuration
ACR50W 2006/01-2019/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ACR55W 2006/01-2019/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
GSR50W 2006/01-2016/05 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GSR55W 2006/01-2016/05 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
ALPHARD
Chassis No. Year Configuration
AGH30W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Front wheel drive.
AGH35W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Four-wheel drive (4WD).
ANH20W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ANH25W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ATH20W 2011/12-2015/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
AYH30W 2015/01- 2.5L Petrol 2ARFXE EFI (152 hp / 112 kW) Four wheel drive (4WD).
GGH20W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGH25W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GGH30L 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GGH30L 2018/01- 3.5L Petrol 2GRFKS D-4S (300 hp / 221 kW) Front wheel drive.
GGH30W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GGH30W 2018/01- 3.5L Petrol 2GRFKS D-4S (300 hp / 221 kW) Front wheel drive.
GGH35W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Four-wheel drive (4WD).
GGH35W 2018/01- 3.5L Petrol 2GRFKS D-4S (300 hp / 221 kW) Four wheel drive (4WD).
VELLFIRE
Chassis No. Year Configuration
AGH30W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Front wheel drive.
AGH35W 2015/01- 2.5L Petrol 2ARFE EFI (182 hp / 134 kW) Four-wheel drive (4WD).
ANH20W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Front wheel drive.
ANH25W 2008/04-2015/01 2.4L Petrol 2AZFE EFI (170 hp / 125 kW) Four-wheel drive (4WD).
ATH20W 2011/12-2015/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).
AYH30W 2015/01- 2.5L Petrol 2ARFXE EFI (152 hp / 112 kW) Four wheel drive (4WD).
GGH20W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Front wheel drive.
GGH25W 2008/04-2015/01 3.5L Petrol 2GRFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
GGH30W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Front wheel drive.
GGH30W 2018/01- 3.5L Petrol 2GRFKS D-4S (300 hp / 221 kW) Front wheel drive.
GGH35W 2015/01-2018/01 3.5L Petrol 2GRFE EFI (275 hp / 202 kW) Four-wheel drive (4WD).
GGH35W 2018/01- 3.5L Petrol 2GRFKS D-4S (300 hp / 221 kW) Four wheel drive (4WD).
ESTIMA HYBRID
Chassis No. Year Configuration
AHR20W 2006/06-2019/01 2.4L Petrol 2AZFXE EFI (150 hp / 110 kW) Four wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.
