MASUMA TIE ROD END
VENDOR CODE: ME-H011R

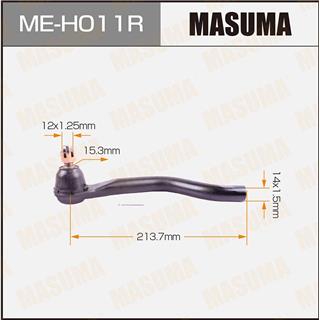

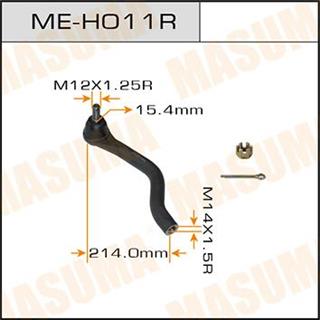

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:15.3mm External Thread x Female Thread:14x1.5mm Center Distance:213.7mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
0321-RBR
53540-SFE-003
53540SLE013
A1295
C4477R
CE0224
CEHO-37
ET28653R
SE-H011R
ODYSSEY
Chassis No. Year Configuration
RB1 2004/01-2008/01 ABA-RB1 2.4L Gasoline K24A PGM-FI (190 HP / 140 kW) Front wheel drive.
RB1 2004/01-2008/01 DBA-RB1 2.4L Gasoline K24A PGM-FI (160 HP / 118 kW) Front wheel drive.
RB1 2003/01-2004/01 LA-RB1 2.4L Gasoline K24A PGM-FI (160 HP / 118 kW) Front wheel drive.
RB1 2003/01-2004/01 UA-RB1 2.4L Gasoline K24A PGM-FI (200 HP / 147 kW) Front wheel drive.
RB2 2004/01-2008/01 ABA-RB2 2.4L Gasoline K24A PGM-FI (206 hp / 152 kW) Four wheel drive (4WD).
RB2 2004/01-2008/01 DBA-RB2 2.4L Gasoline K24A PGM-FI (204 hp / 150 kW) Four wheel drive (4WD).
RB2 2003/01-2004/01 LA-RB2 2.4L Gasoline K24A PGM-FI (160 HP / 118 kW) Four wheel drive (4WD).
RB2 2003/01-2004/01 UA-RB2 2.4L Gasoline K24A PGM-FI (190 HP / 140 kW) Four wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No. TRW No.
ME-H011R JTE7704
