MASUMA TIE ROD END
VENDOR CODE: ME-K225

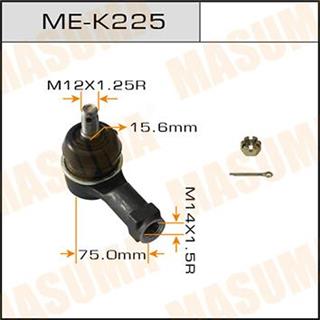

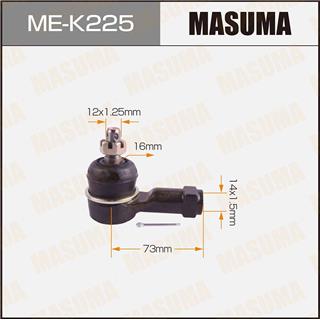

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:16mm External Thread x Female Thread:14x1.5mm Center Distance:73mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
56820-47300
56820-47500
56820-4A000
STAREX
Chassis No. Year Configuration
2.5L 4D56. MICROBUS 2006/09-2007/05 2.5L Diesel 4D56 TCI (110 HP / 81 kW) Rear wheel drive.
2.5L 4D56. VAN 2006/09-2007/05 2.5L Diesel 4D56 TCI (110 HP / 81 kW) Rear wheel drive.
2.5L A.MICROBUS 2006/09-2007/05 2.5L Diesel A TCI (136 hp / 100 kW) Four-wheel drive (4WD).
2.5L A.MICROBUS 2006/09-2007/05 2.5L Diesel A TCI (136 hp / 100 kW) Rear wheel drive.
2.5L A.VAN 2006/09-2007/05 2.5L Diesel A TCI (136 hp / 100 kW) Four-wheel drive (4WD).
2.5L A.VAN 2006/09-2007/05 2.5L Diesel A TCI (136 hp / 100 kW) Rear wheel drive.
2.5L D4BH. MICROBUS 2001/07-2006/09 2.5L Diesel D4BH TCI (101 hp / 74 kW) Rear wheel drive.
2.5L D4BH. MICROBUS 2001/07-2006/09 2.5L Diesel D4BH TCI (99 hp / 73 kW) Four-wheel drive (4WD).
2.5L D4BH. VAN 2001/07-2006/09 2.5L Diesel D4BH TCI (101 hp / 74 kW) Rear wheel drive.
2.5L D4BH. VAN 2001/07-2006/09 2.5L Diesel D4BH TCI (99 hp / 73 kW) Four-wheel drive (4WD).
2.5L D4CB. MICROBUS 2001/12-2006/09 2.5L Diesel D4CB TCI (110 hp / 81 kW) Four-wheel drive (4WD).
2.5L D4CB. MICROBUS 2001/12-2006/09 2.5L Diesel D4CB TCI (140 hp / 103 kW) Rear wheel drive.
2.5L D4CB. VAN 2001/12-2006/09 2.5L Diesel D4CB TCI (140 hp / 103 kW) Four-wheel drive (4WD).
2.5L D4CB. VAN 2001/12-2006/09 2.5L Diesel D4CB TCI (140 hp / 103 kW) Rear wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
ME-K225
